Technical Specifications Multi‑port communication signal interfaces, Mark V back‑plane bus connector, auxiliary DC power supplied by chassis back‑plane. Operating temperature 0 ℃ to +60 ℃, storage temperature ‑40 ℃ to +85 ℃, relative humidity 5%‑95% non‑condensing. Conformal coating PCB anti‑corrosion protection. Mark V plug‑in mechanical structure.
Functional Features Executes Mark V system communication protocol processing. Realizes bidirectional data exchange between main CPU and peripheral functional modules over back‑plane bus. Processes external communication data interaction with upper monitoring system. Supports communication channel parameter setting and hardware self‑diagnosis. Outputs communication link status signal.
Performance Parameters Reliable communication protocol processing performance, stable bidirectional data transmission, rapid communication fault detection response capability.

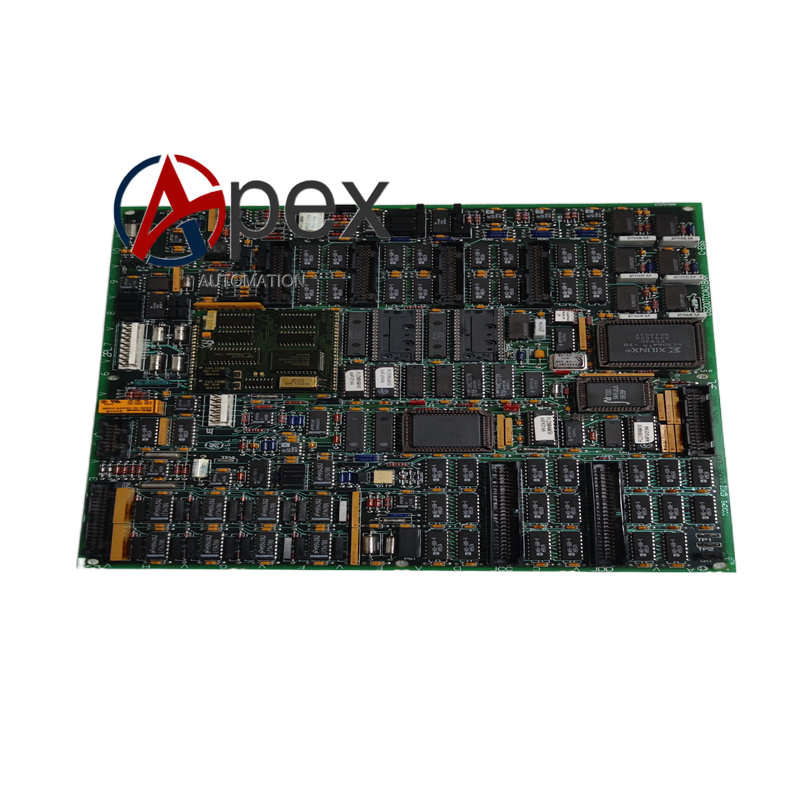

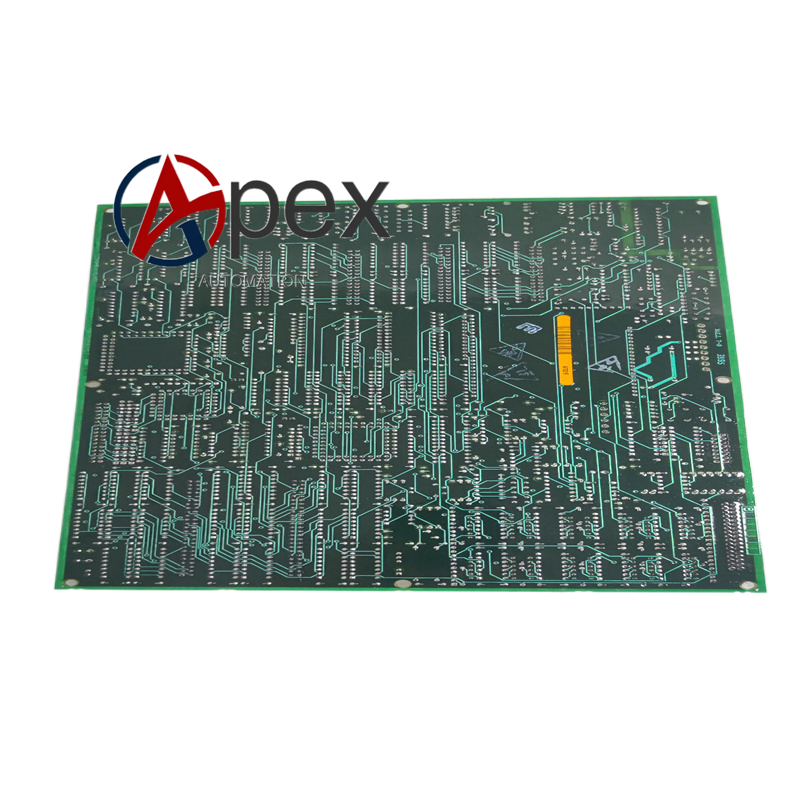

Material Composition Multilayer glass‑fiber epoxy printed circuit board with AA‑revision component arrangement. Communication processing integrated circuits, signal driving and isolation components. Gold‑plated Mark V back‑plane edge connector. Front metal panel with status LED indicators and fixing hardware. Conformal protective coating layer.
Structural Characteristics Standard Mark V chassis plug‑in board dimension. Rear gold‑plated edge connector mates with Mark V system back‑plane bus. Front metal panel includes status LED indicators and fixing screws. PCB layout separates communication high‑speed signal zone and auxiliary logic zone for electromagnetic interference suppression.
Working Principle Board obtains operating power from Mark V chassis back‑plane. Communication protocol chip processes data from main CPU and distributes data to corresponding peripheral functional boards. On‑board monitoring circuit tracks communication link working condition and reports fault events to system main processor.
Installation Requirements Insert DS200TCCAG1BAA into designated chassis slot, tighten front‑panel fixing screws. Restore chassis power supply, complete system power‑on self‑test and full communication link functional verification.
Usage Notes Avoid mechanical scratch damage to conformal coating layer. Only use within compatible GE Mark V turbine control chassis.
