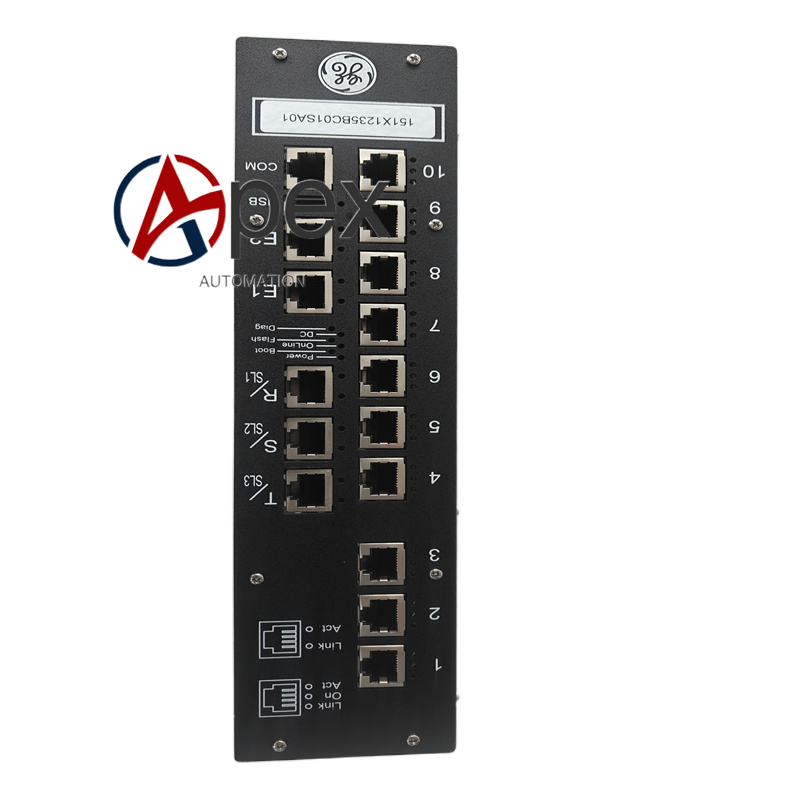

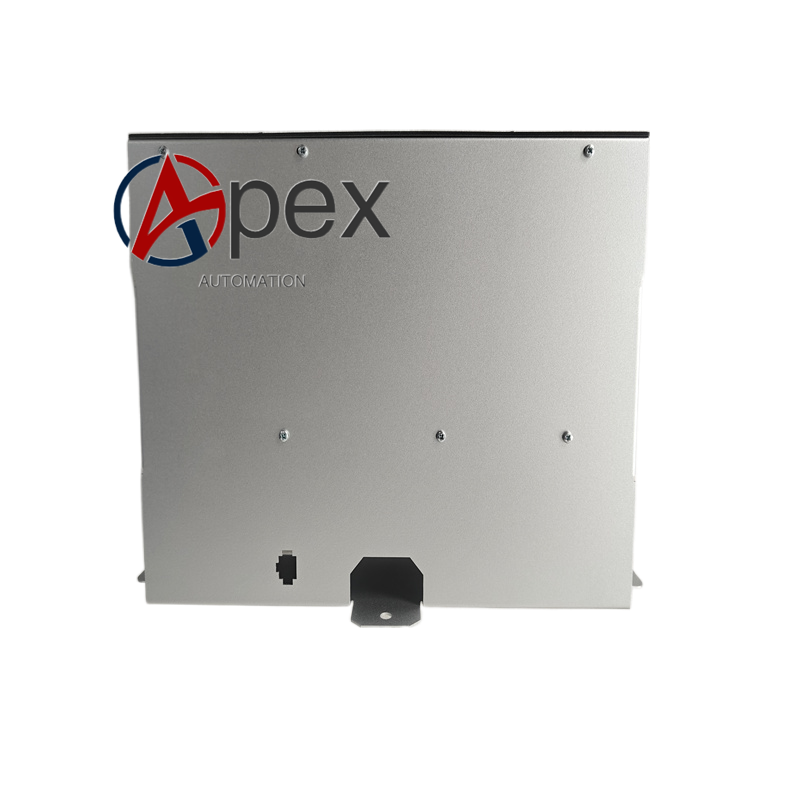

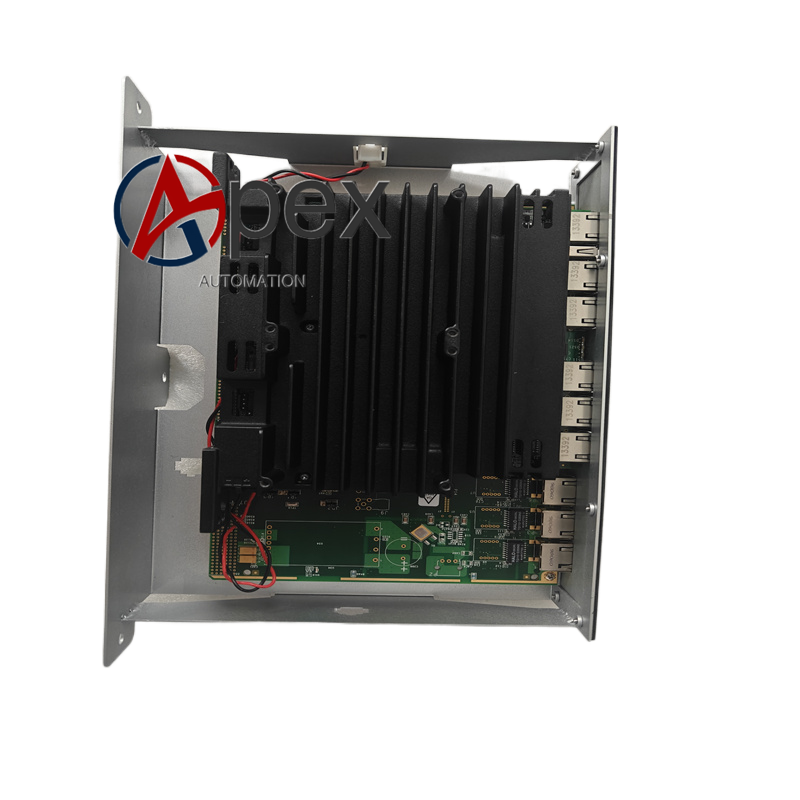

GE 151X1235BC01SA01 Control Circuit Board

Product Brief Introduction 151X1235BC01SA01 is a core interface control board for GE series industrial drive and power conversion equipment. It handles command signal buffering, status feedback acquisition and internal bus data exchange between main controller and power functional units. It is screw‑mounted inside power equipment cabinet.
Tag:

Technical Specifications Multi‑channel logic input and output interfaces, internal system bus connector, auxiliary DC control power supply. Operating temperature 0 ℃ to +60 ℃, storage temperature ‑40 ℃ to +85 ℃, relative humidity 5%‑95% non‑condensing. PCB with conformal environmental coating.

Functional Features Buffers control command signals sent by main control processor. Provides galvanic isolation between low‑voltage logic section and power unit section. Collects fault and running status feedback signals from power modules. Transmits status information back to main controller via internal bus. Executes hardware self‑check for interface channel failure.

Application Scenarios Replacement spare board for GE high‑power drive and power conversion equipment. Applied in metallurgy, energy industry equipment maintenance work.

Performance Parameters Fast bidirectional logic signal transmission, reliable electrical isolation performance between different circuit domains, stable fault signal acquisition capability.

Material Composition Multilayer glass‑fiber epoxy printed circuit board. Signal buffer and opto‑isolation assemblies, bus interface peripheral circuit. Multi‑pin plug‑in connectors, metal mounting hardware. Conformal protective coating layer.

Structural Characteristics Rectangular circuit board structure.  Pre‑drilled screw holes for cabinet bracket mounting. PCB layout establishes clear isolation boundary between logic zone and power interface zone.

Working Principle Board receives auxiliary DC working power. Control commands from main controller pass through buffer and isolation components and forward to power functional units.

Installation RequirementsSecure board onto cabinet mounting bracket with screws. Fully insert and lock every plug‑in connector. Restore auxiliary power and run signal loop test to verify command output and fault feedback function.

Usage Notes Comply with high‑voltage safety operation procedures. Anti‑static measures cannot be skipped. Powered hot‑swap operation is prohibited. Keep conformal coating layer intact.
