Technical Specifications Backplane power supply. Ethernet interface. Support DCS control network protocol. Operating temperature:0°C ~ +60°C.
Functional Features High speed DCS network communication. Data exchange between controller and operator stations. Network fault diagnosis. Link status LED indicators. Support redundant network.
Application Scenarios Chemical, power, oil refinery DCS control network for real-time process data and alarm transmission.
Performance Parameters Real-time data transmission, network fault detection. Operating temperature:0~+60°C.

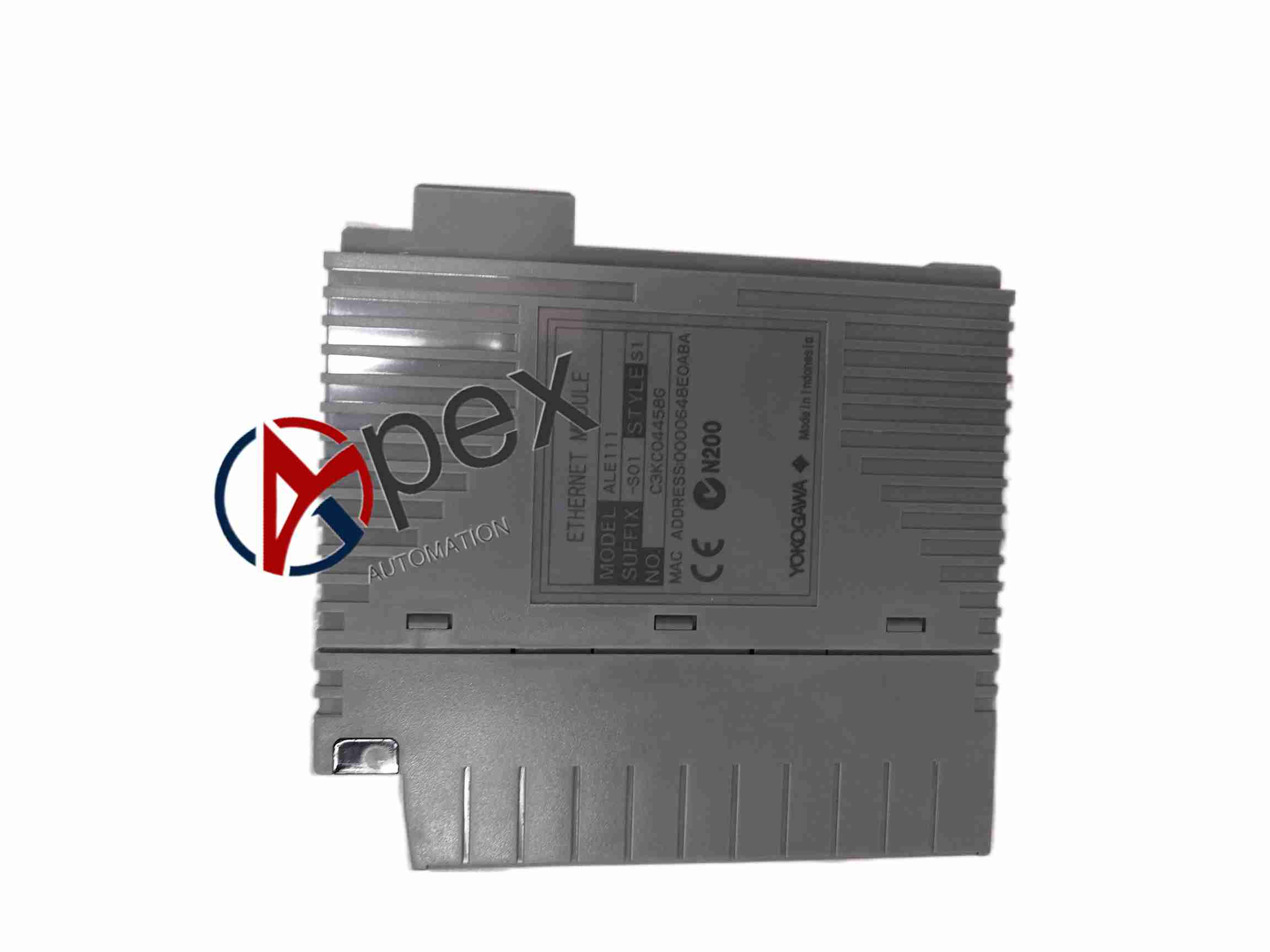

Structural Characteristics Rack plug-in module, front Ethernet port, backplane bus connector, onboard communication processing circuit.
Working Principle Exchange real-time process data, alarm messages and operation commands between field control unit and operator stations via Ethernet-based DCS control network.
Installation Requirements Insert module into CENTUM VP rack. Connect Ethernet cable. Configure network parameters in DCS engineering tool.
Usage Notes Use industrial grade shielded Ethernet cable. Check network redundancy configuration.
