Technical Specifications Single-phase AC power, built-in incremental encoder, low inertia rotor, flange mounting structure.
Functional Features High positioning accuracy, fast acceleration response, low torque ripple, smooth low-speed operation.
Application Scenarios Electronic assembly equipment, small packaging machine, testing equipment, robot auxiliary axis.
Performance Parameters Small volume, high dynamic response, low vibration, long continuous running life.
Material Composition Cast aluminum housing, silicon steel stator sheet, permanent magnet rotor, stainless steel output shaft, encoder plastic housing.

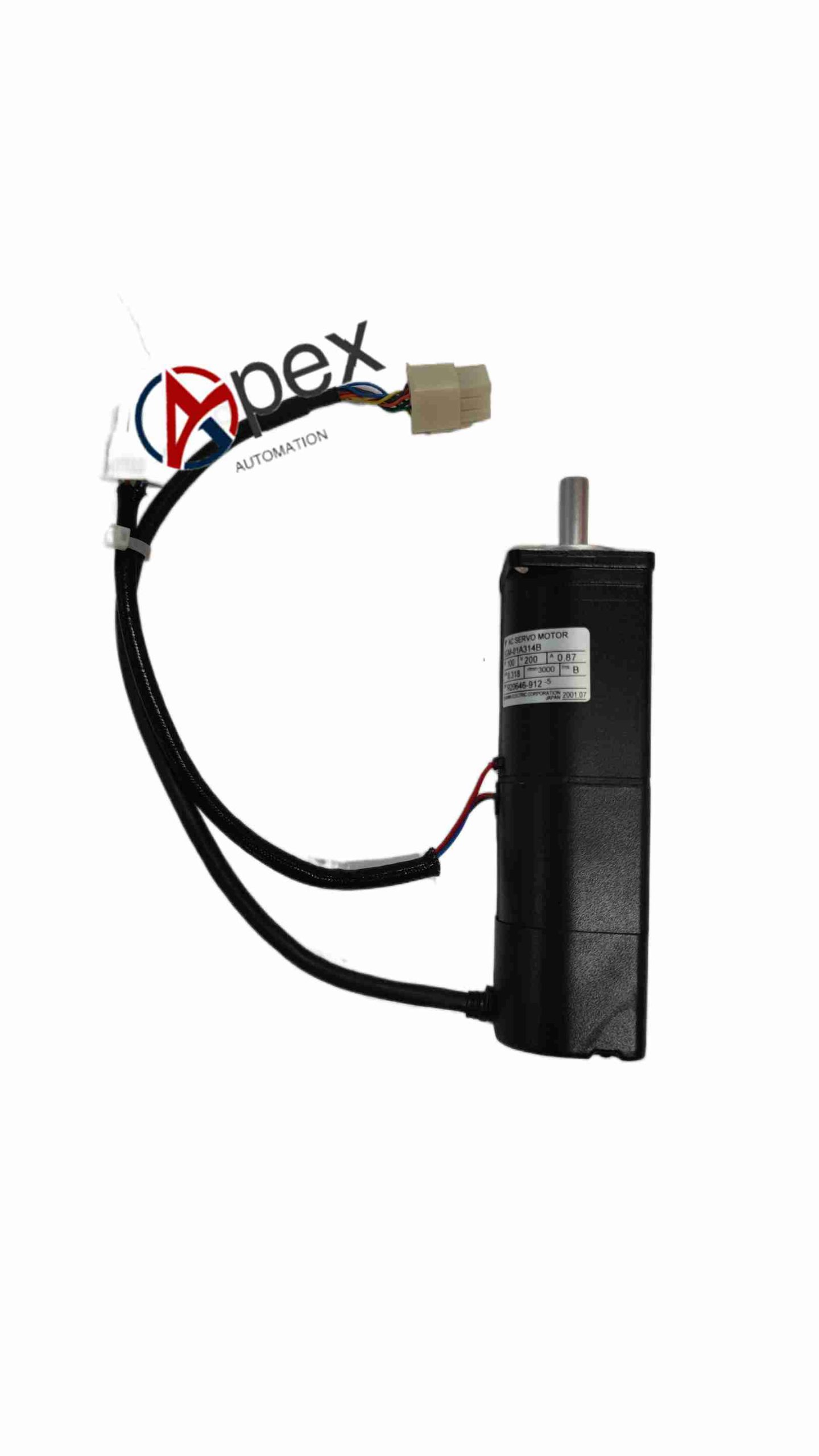

Structural Characteristics Cylindrical motor body, standard flange installation, rear integrated encoder, separate power and signal connectors.
Working Principle Stator winding generates rotating magnetic field to drive permanent magnet rotor rotation. Encoder feeds back position signal to servo drive to form closed-loop control.
Installation Requirements Fix by flange mounting, keep coupling coaxiality, use shielded encoder cable and reliable grounding.
Usage Notes Avoid radial impact force on motor shaft. Prevent dust and oil from entering encoder part.
