Technical Specifications MP2300 motion controller platform; Multi-axis motion control; High-speed servo bus; Onboard program memory.
Functional Features Multi-axis trajectory planning; Motion logic execution; Servo command transmission; Hardware self-diagnosis.
Application Scenarios Multi-axis positioning equipment, printing machinery, packaging machines, textile machinery and high-speed automation production lines.
Performance Parameters Short motion scan cycle; Synchronized multi-axis control; Support electronic cam and electronic gear function.

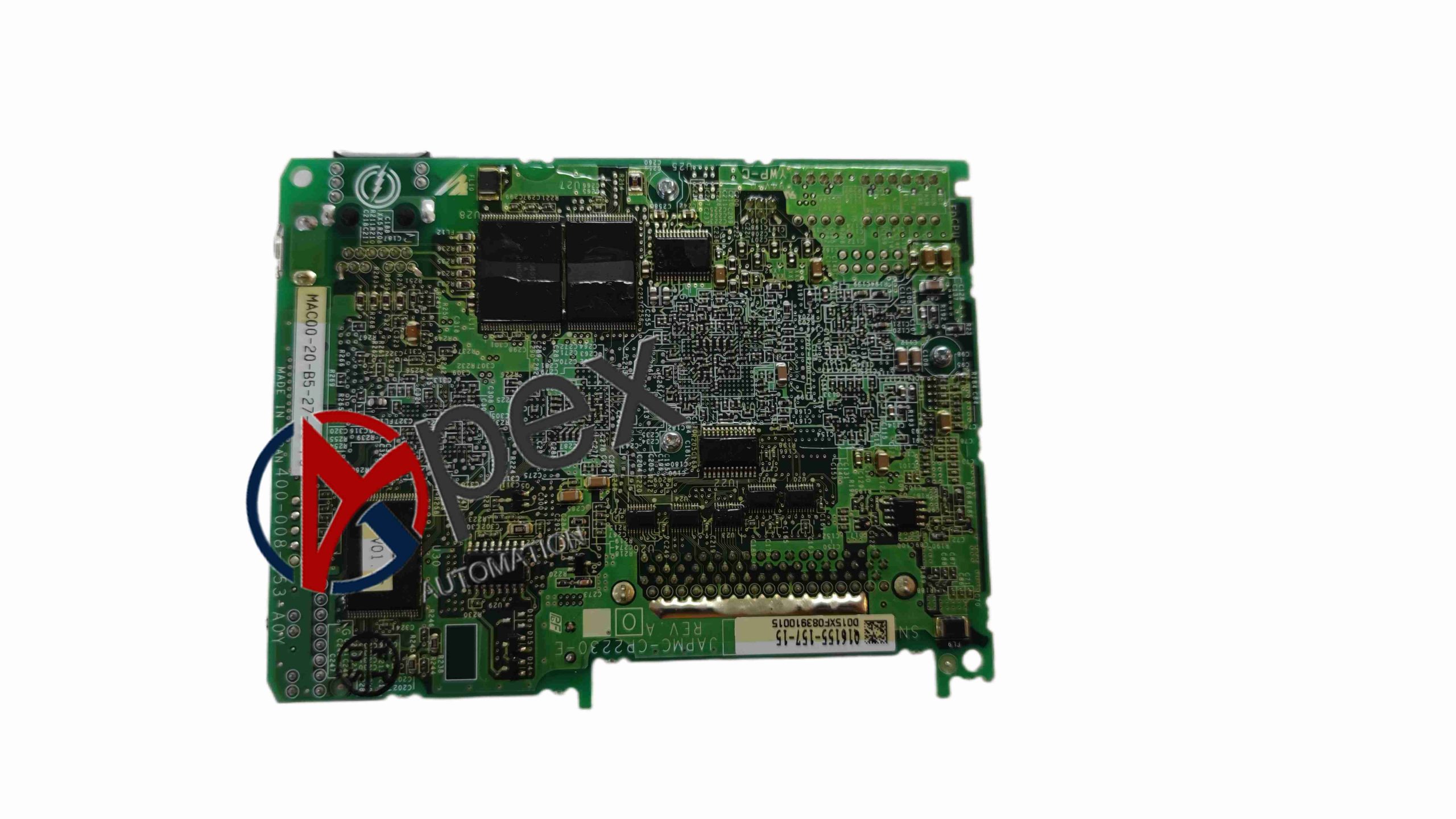

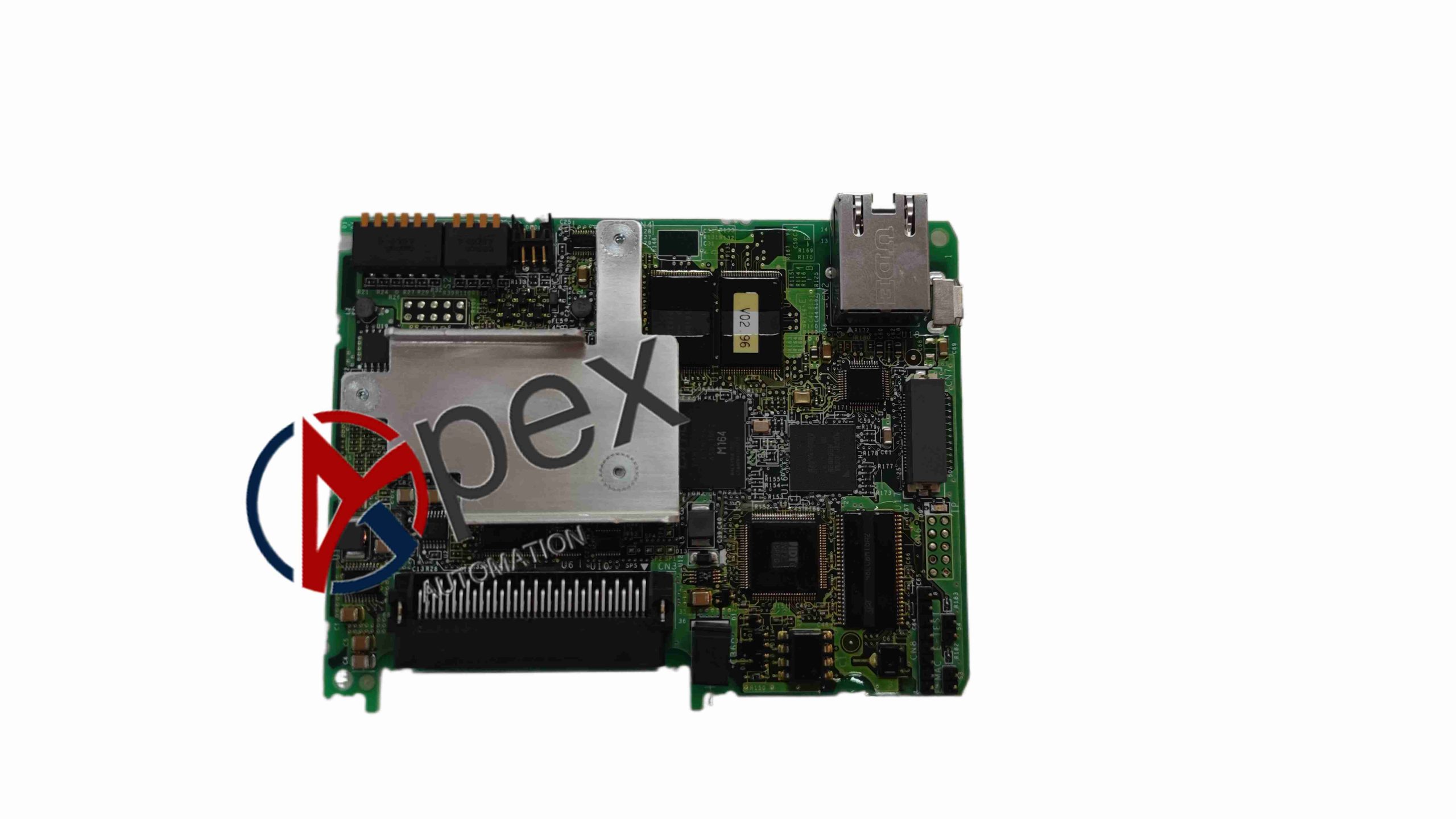

Structural Characteristics Rack pluggable CPU module, front status LEDs, backplane bus connector and communication ports.
Working Principle Execute user motion control program, calculate position command for each axis, send setpoint to servo drives and receive position feedback to form closed-loop motion control.
Installation Requirements Install on MP2300 rack; Use dedicated servo communication cable; Ensure cabinet temperature within rated range.
Usage Notes Backup motion program and axis parameters before maintenance. Test single-axis movement before running full automatic cycle.
