Technical Specifications Robot discrete I/O interface; Galvanic signal isolation; Internal bus communication; PCB plug-in design.
Functional Features Peripheral signal acquisition; Robot output signal transmission; Signal conditioning; I/O fault diagnosis.
Application Scenarios Yaskawa robot systems, communication with peripheral fixtures, safety gates, conveyors and sensors.
Performance Parameters Fast discrete signal response; Channel status monitoring.

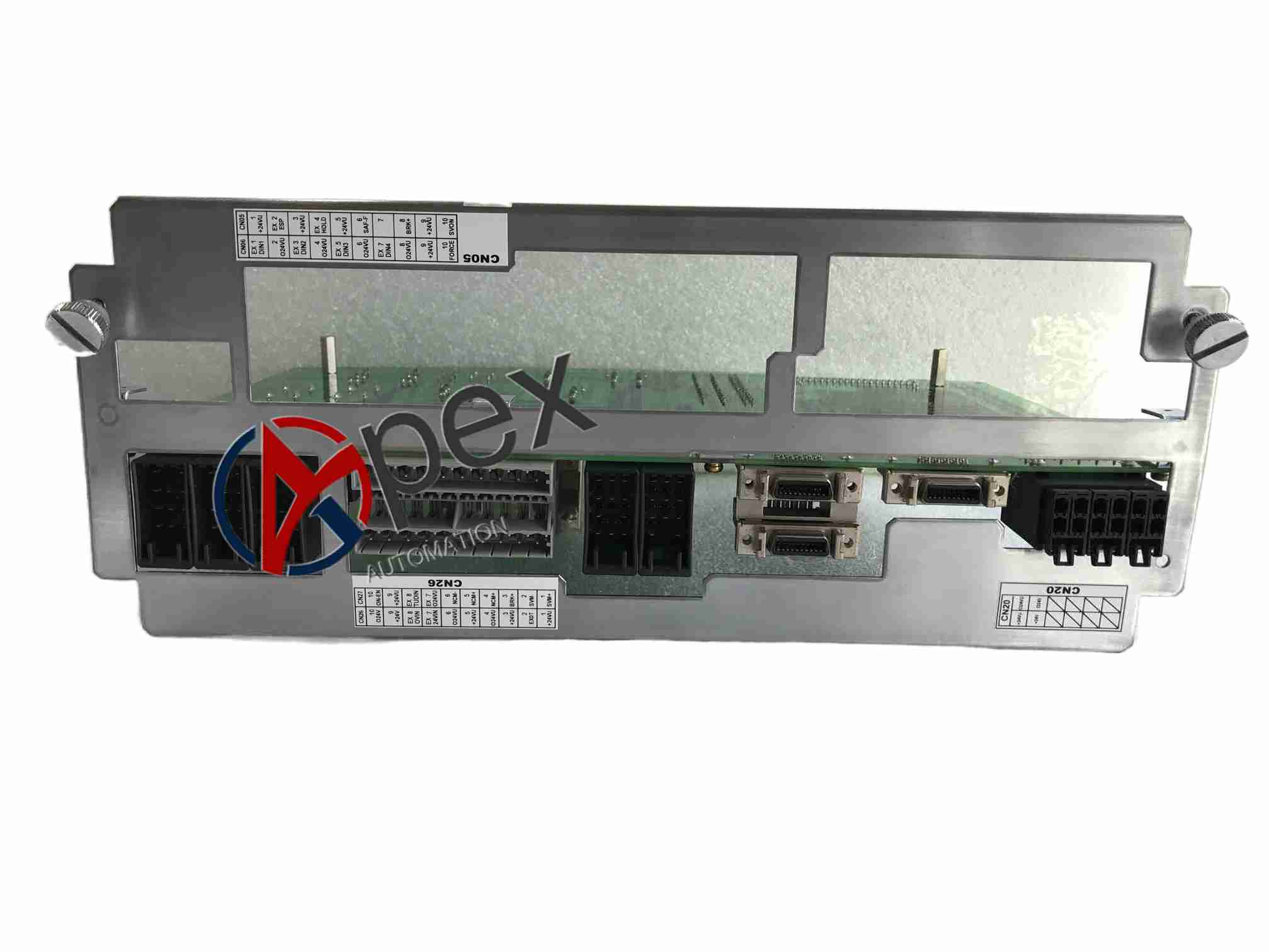

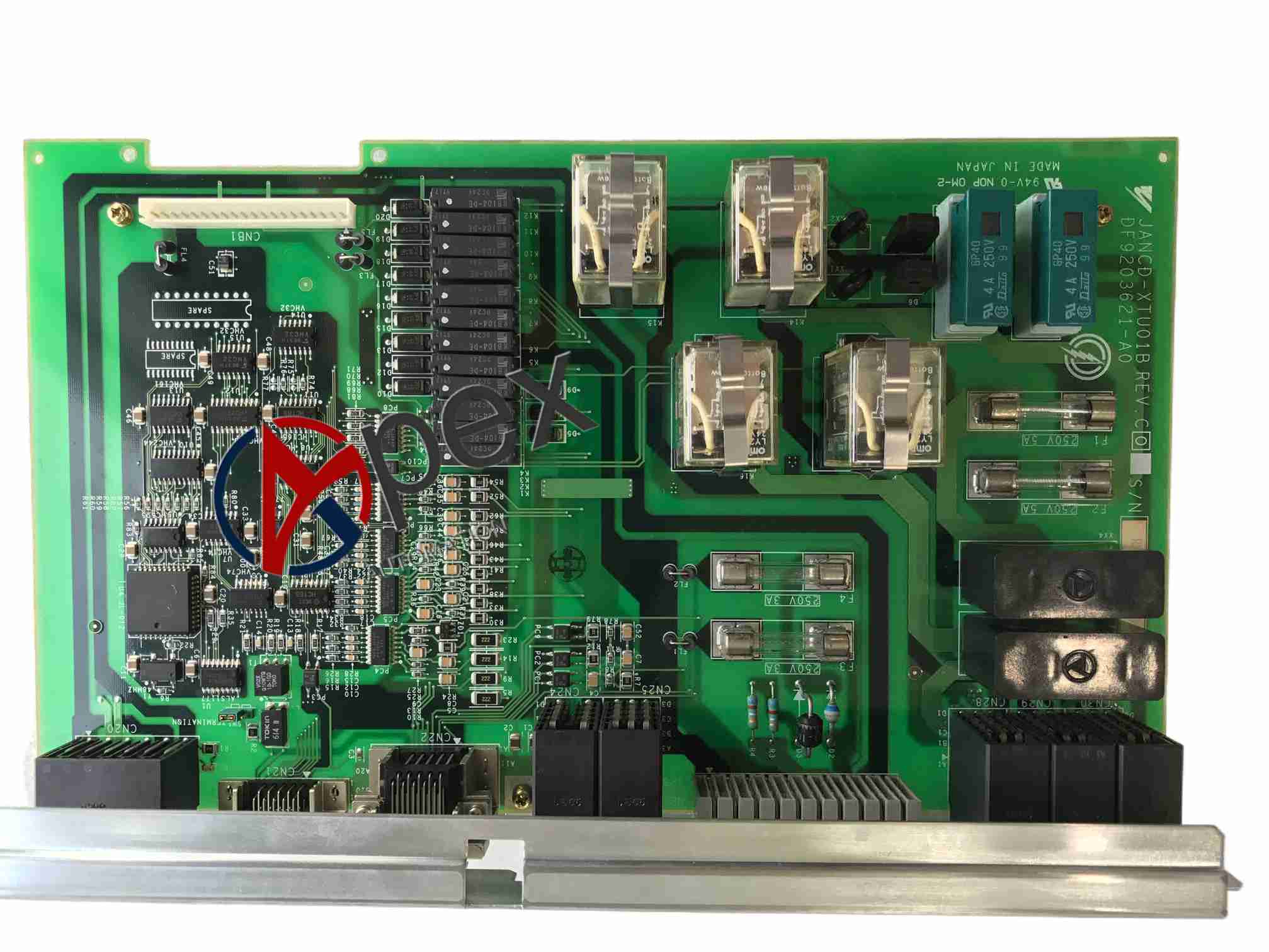

Structural Characteristics Plug-in PCB board, backplane connector, external I/O terminal connectors and status LEDs.
Working Principle Collect digital signals from peripheral sensors and safety devices, transmit signals to robot CPU, and convert robot control commands into discrete signals for external actuators.
Installation Requirements Install in robot control cabinet; Use shielded cable for external I/O wiring; ESD protection for PCB.
Usage Notes Check I/O signal definition after installation. Perform safety interlock test before robot operation.
