Technical Specifications Three-phase AC input. Support analog ±10V and pulse command. Encoder feedback interface. Built-in safety protection. Operating temperature:0°C ~ +50°C.
Functional Features Three control modes: position, speed, torque. Real-time encoder position feedback. Overcurrent, overvoltage, overload and overheat protection. Fault code display.
Application Scenarios Machine tool feeding axis, palletizing equipment, large gantry auxiliary axis, heavy load positioning automation.
Performance Parameters High peak torque output, reliable dynamic control. Operating temperature:0~+50°C.

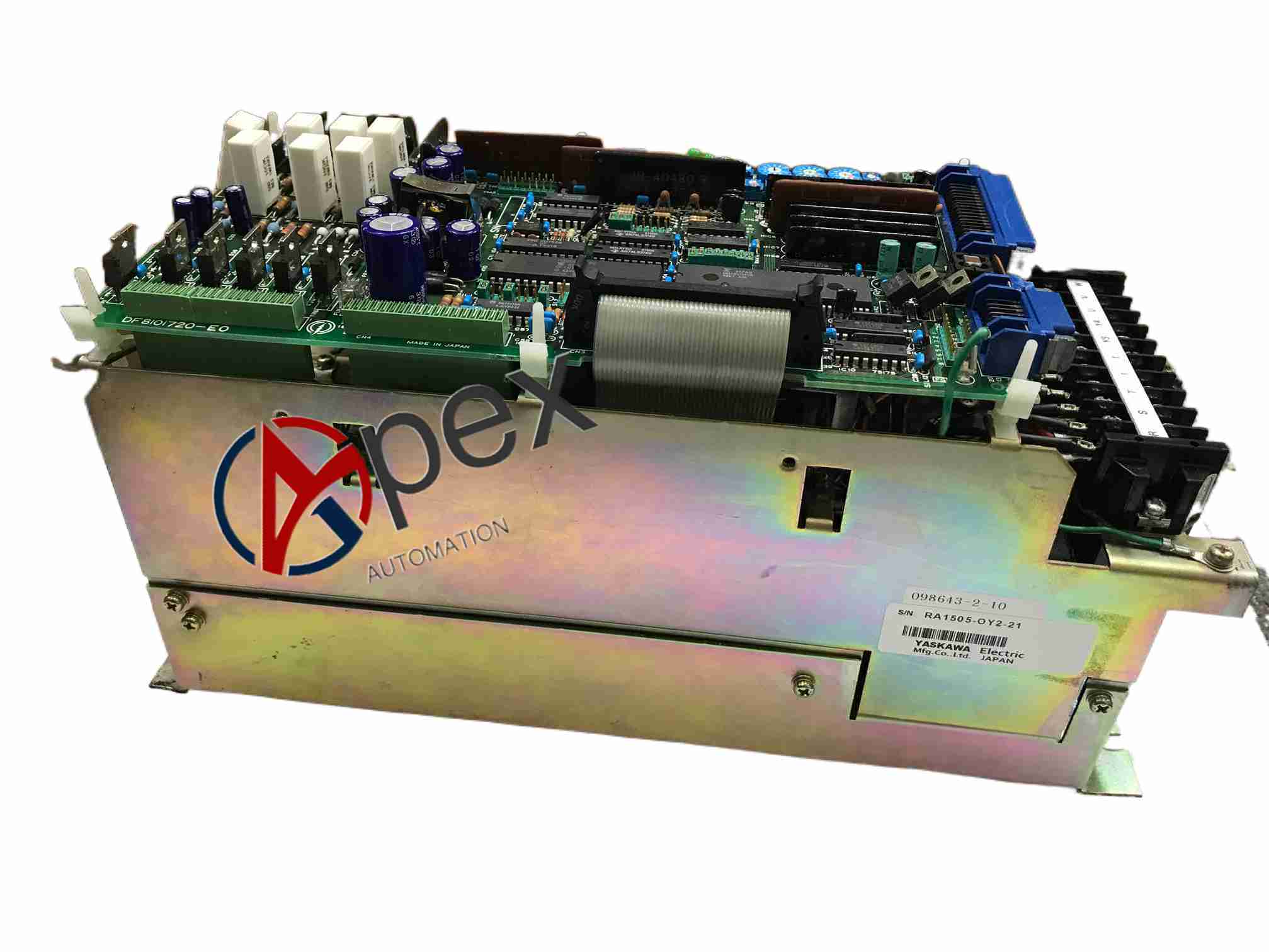

Structural Characteristics Metal cabinet housing, high current power terminals, motor connector, encoder and control signal terminals, power drive board.
Working Principle Convert input AC power into variable frequency three-phase current to drive servo motor. Compare command and encoder feedback value, adjust output current to achieve closed-loop motion control.
Installation Requirements Mount on cabinet backplane, maintain ventilation clearance. Connect power cable, motor cable and shielded encoder wiring. Tune servo gain after wiring.
Usage Notes Check power supply capacity. Add surge absorption for inductive loads.
