Technical Specifications 24VDC power supply monitoring, operating temperature: -40℃ ~ +70℃, with adjustable voltage threshold.
Functional Features Real-time power voltage detection, overvoltage/undervoltage alarm, power loss pre-warning, voltage data upload, fault latch output.
Application Scenarios All kinds of Woodward prime mover control cabinets, generator control systems, turbine protection control units.
Performance Parameters High voltage detection accuracy, fast alarm response, continuous monitoring without interruption.

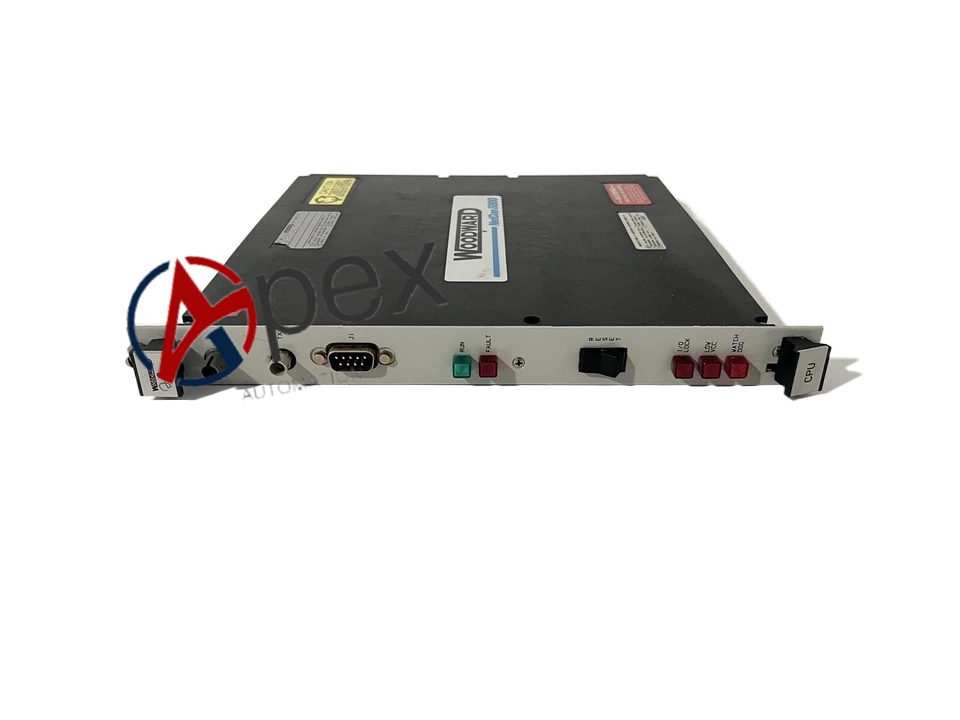

Structural Characteristics Compact pluggable PCB module, power status and fault indicator lights.
Working Principle The module samples the working voltage of the control power supply in real time, compares the measured value with the preset threshold, and triggers an alarm signal and status feedback once the voltage exceeds the normal range.
Installation Requirements Install close to the power distribution terminal of the cabinet, the power sampling wiring should be firm, and the cabinet should be well grounded.
Usage Notes Set the alarm threshold according to the site power supply specification, and check the sampling wiring regularly.
