Technical Specifications 24VDC power supply, voltage and current sampling input, multi-channel relay output. Operating temperature: -40℃ ~ +70℃.
Functional Features Synchronization control, load management, overcurrent, overvoltage, undervoltage and frequency protection, fault event recording.
Application Scenarios Grid-connected diesel and gas generator control and protection cabinet.
Performance Parameters Fast protection response, high measurement precision.

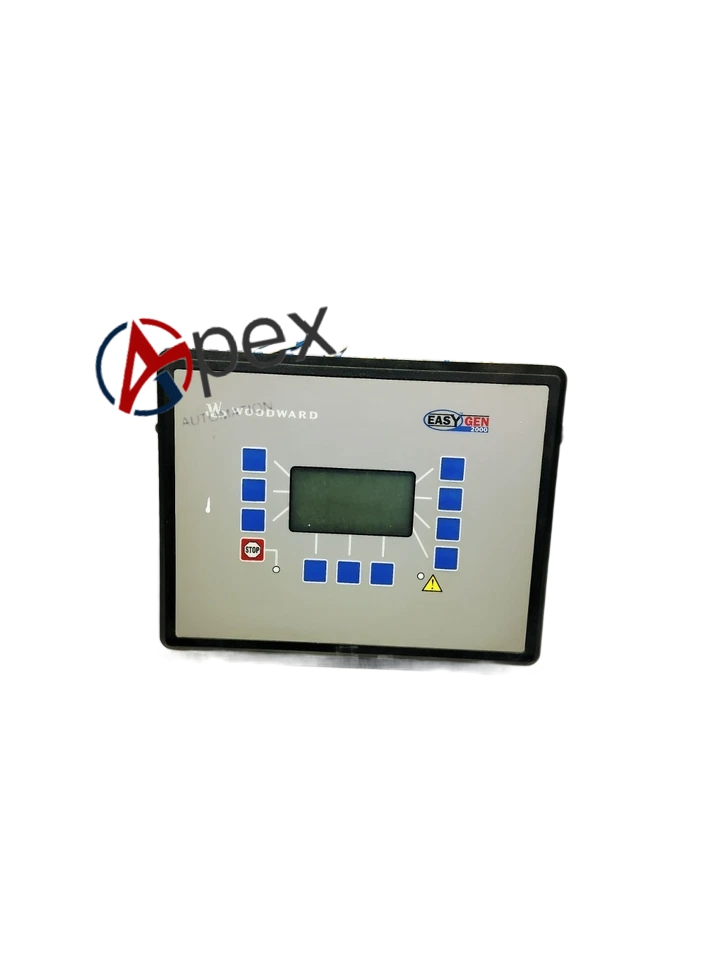

Structural Characteristics Metal front panel, HMI display and operation keys, relay status indicators.
Working Principle Real-time collect electrical parameters of generator and busbar, execute synchronization logic and trigger protection action when parameters exceed limits.
Installation Requirements Panel cutout mounting, CT and PT wiring strictly follow specification.
Usage Notes Confirm protection setting value before paralleling to grid.
