Technical Specifications 24VDC power supply; abundant analog and discrete I/O; built-in AC voltage and current sampling; Modbus and peer-to-peer paralleling communication. Operating temperature: -40℃ ~ +85℃.
Functional Features Engine start/stop sequence; generator protection; automatic synchronization; active/reactive load sharing; fault alarm and timestamped event logging; HMI local operation.
Application Scenarios Industrial multi-generator parallel power plant, island and grid-connected genset control.
Performance Parameters High synchronizing accuracy, fast load regulation response, comprehensive protection interlock, stable parallel operation.

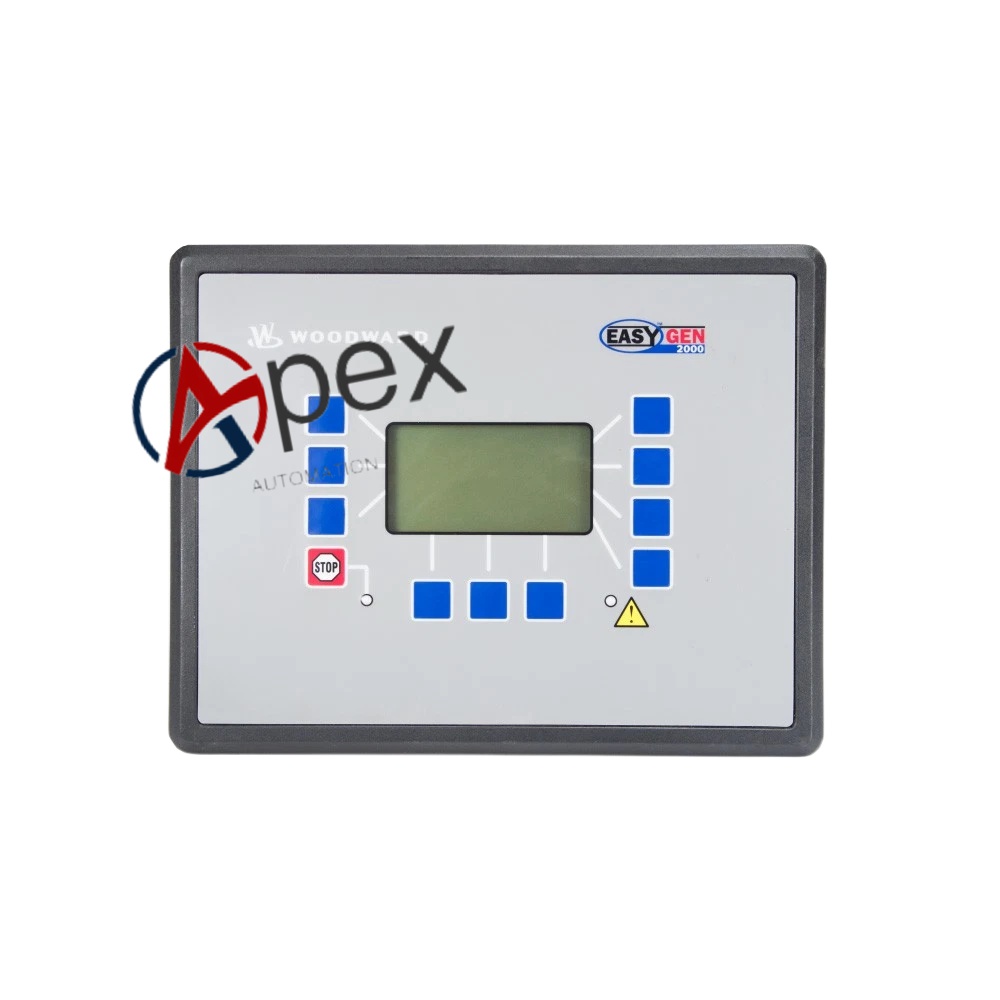

Structural Characteristics Panel-mounted metal housing, front LCD display and operation keypad, screw-type wiring terminals.
Working Principle Continuously sample generator and bus electrical parameters, monitor engine status. It executes start-stop sequence, performs synchronizing logic when paralleling, distributes load evenly among gensets and triggers protection trip under fault conditions.
Installation Requirements Flush panel mounting; separate AC sampling wiring and high-power cables; reliable protective earth grounding.
Usage Notes Backup parameters before configuration change; test protection and synchronizing function during commissioning.
