Technical Specifications 24VDC nominal power supply; built-in voltage and current sampling; multi-channel analog and discrete I/O; paralleling communication port. Operating temperature: -40℃ ~ +85℃.
Functional Features Engine start-stop sequence; generator over/under voltage and frequency protection; automatic synchronizing; active and reactive load sharing; timestamp event logging.
Application Scenarios Industrial power station, grid-connected or island mode genset control.
Performance Parameters High synchronization precision, fast load response, comprehensive protection interlock, stable parallel operation.

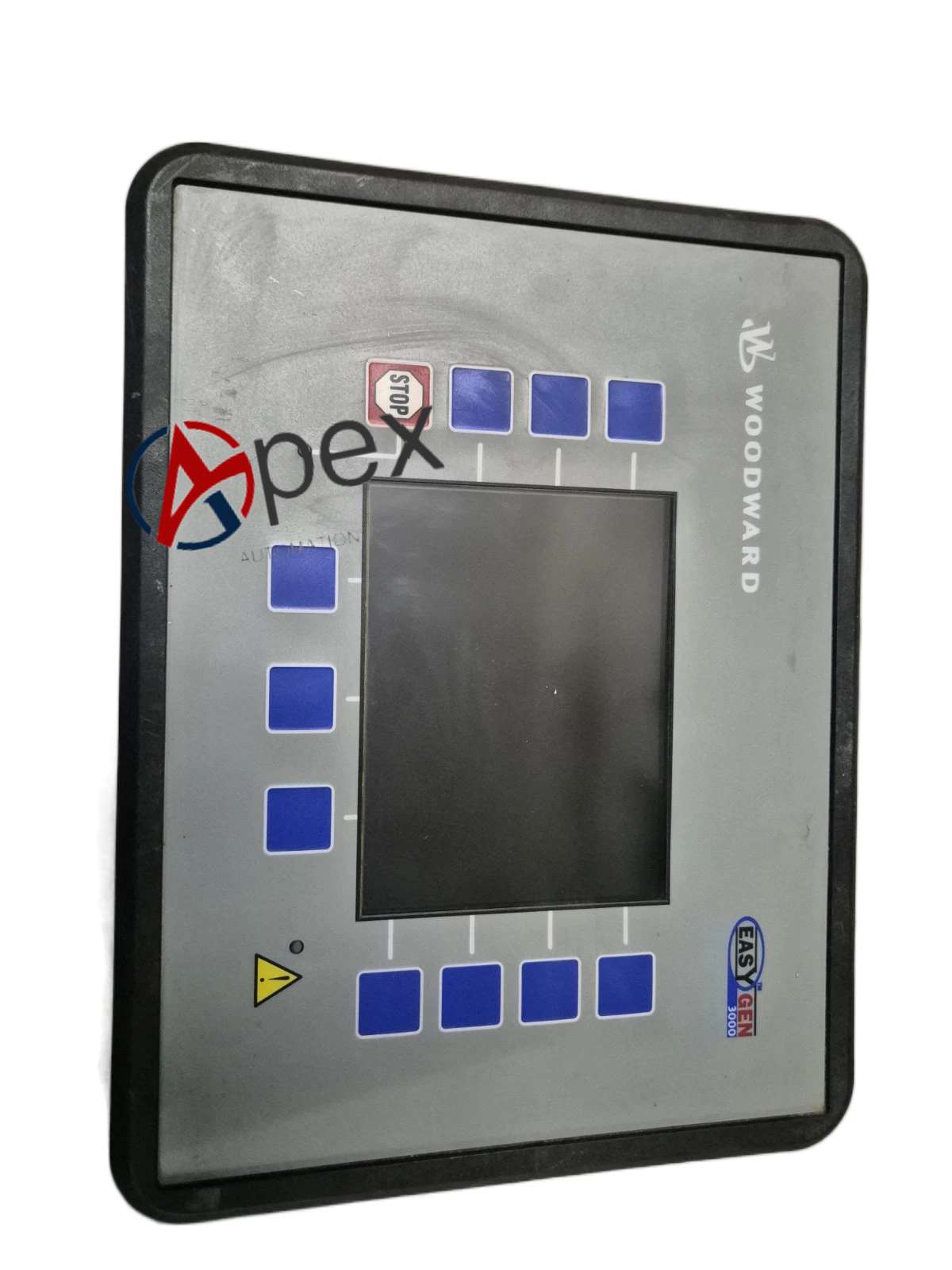

Structural Characteristics Panel-mounted metal housing, front LCD and operation keypad, screw wiring terminals.
Working Principle The controller continuously samples generator and bus electrical parameters and monitors engine operating status. It executes start-stop logic, completes synchronization during paralleling, distributes load evenly, and triggers protective trip when faults are detected.
Installation Requirements Flush panel installation; separate AC sampling wiring and high-power cables; reliable protective earthing.
Usage Notes Backup parameters before configuration change; test protection and synchronizing function during commissioning.
