Technical Specifications 24VDC power supply; AC voltage/current sampling; discrete I/O and communication ports; EMC anti-interference design. Operating temperature: -40℃ ~ +85℃.
Functional Features Generator-bus synchronizing detection; auto synchronizing control; active & reactive load sharing; electrical parameter monitoring; fault alarm and event logging.
Application Scenarios Multi diesel/gas generator parallel power station systems.
Performance Parameters High synchronization precision, stable load distribution, rapid response to load change.

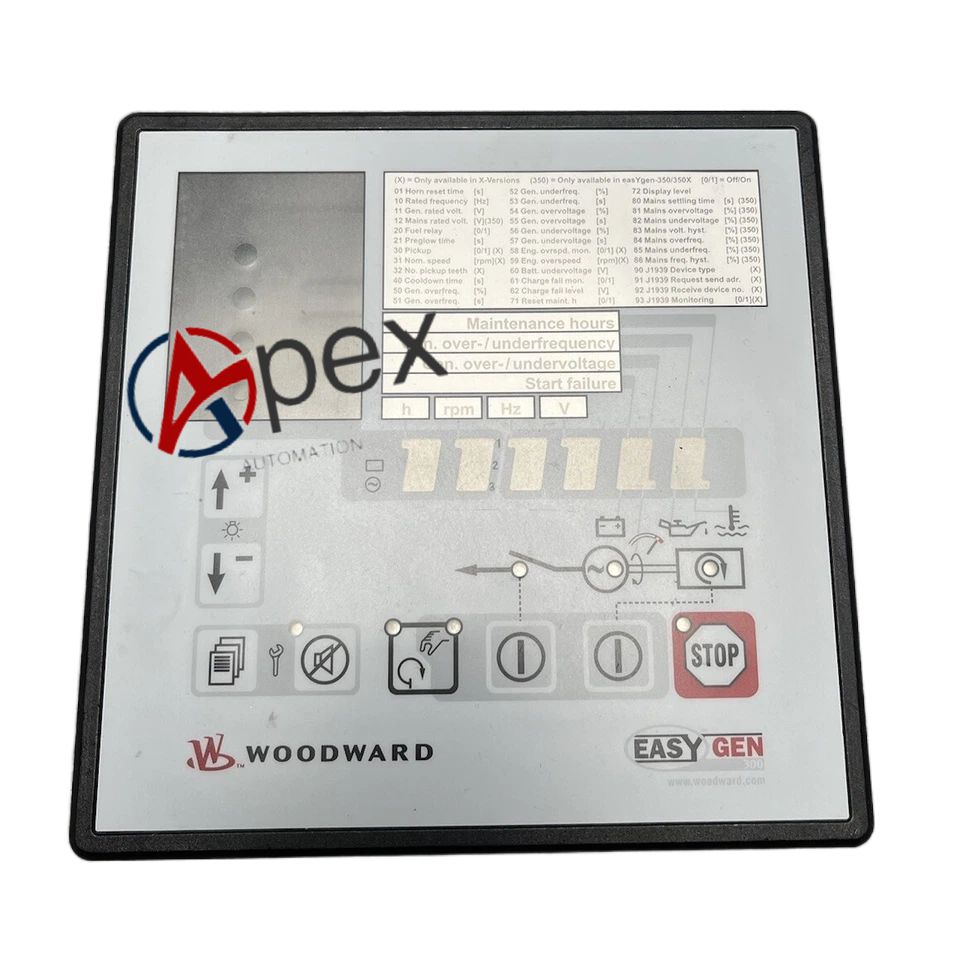

Structural Characteristics Panel mount metal housing, front LCD display and operation keypad, screw type terminal blocks.
Working Principle Continuously sample generator and bus voltage, frequency and phase difference. When synchronization condition is satisfied, output breaker closing signal, then send raise/lower command to governor and AVR to balance load among generators.
Installation Requirements Panel flush installation; separate AC sampling cable and power cable; reliable shielding grounding.
Usage Notes Check CT and PT wiring carefully before startup; set load sharing gain properly during commissioning.
