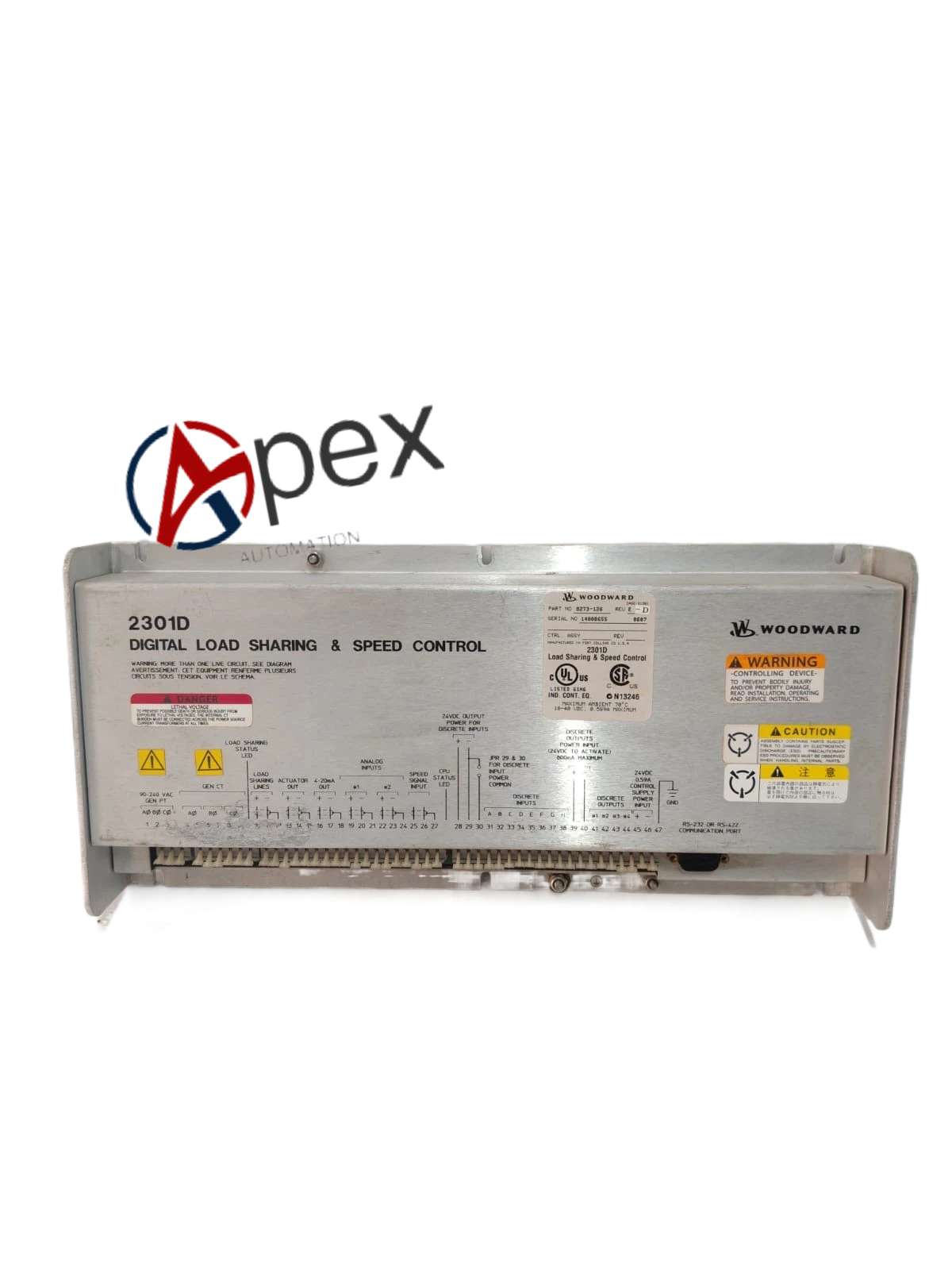

Technical Specifications Input: 50 mV–30 V AC, 10 Hz–15 kHz; Outputs: 24 V DC square wave + 4–20 mA proportional to speed; Supply: 24 V DC ±10%; Accuracy: ±0.5% full scale; Operating temperature: -40 °C to +85 °C; Enclosure: IP20.
Functional Features Dual digital + analog output; adjustable speed-to-current scaling; zero and span calibration; signal loss detection.
Application Scenarios DCS speed indication, analog governor system feedback, speed recorder input, speed signal distribution to multiple systems.
Performance Parameters Analog output linearity: ±0.5% FS; Frequency accuracy: ±0.05%; Response time: < 20 ms.
Material Composition Flame-retardant housing; frequency measurement circuit; V/I output stage; terminal blocks.
Structural Characteristics Rack plug-in module; front panel status LED; rear panel input/output terminals.
Working Principle Measures the frequency of the input speed signal, converts it to a proportional 4–20 mA analog current output, and simultaneously outputs a shaped digital square wave signal.
Installation Requirements Mount in control rack; connect speed input, analog and digital outputs; calibrate zero and span.
