Technical Specifications 24VDC working power; multi-channel signal interface; non-volatile memory for parameter and event storage; on-board hardware watchdog circuit. Operating temperature: -40℃ ~ +85℃.
Functional Features Multi-source sensor signal processing; governing and protection logic operation; communication data exchange; fault diagnosis and timestamped event recording.
Application Scenarios Gas turbine, gas engine and large genset master control cabinets.
Performance Parameters High computing efficiency, stable logic operation under strong EMI environment, reliable data storage.

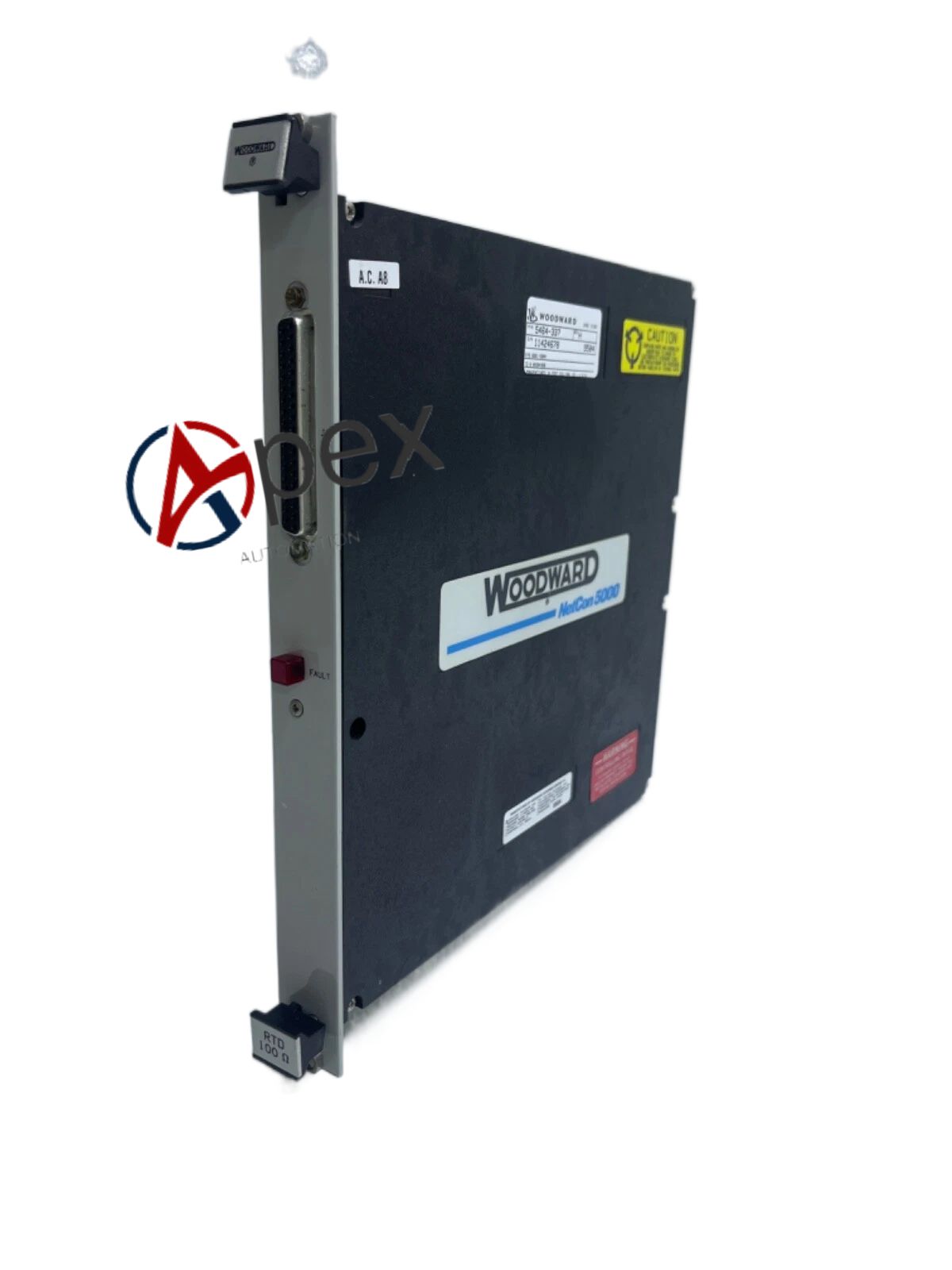

Structural Characteristics Rack pluggable PCB, built-in shielding layer, onboard terminal blocks for signal connection.
Working Principle The board collects all field sensor and I/O signals, executes pre-programmed control and protection algorithms, distributes output commands to each I/O module, and exchanges data with upper monitoring system.
Installation Requirements Install in well-ventilated cabinet, keep away from heat source and strong electromagnetic radiation; wear anti-static wristband during replacement.
Usage Notes Backup all configuration parameters before board replacement; check communication bus connection after commissioning.
