Technical Specifications 24V DC power supply, analog input / output and digital discrete channels. Operating temperature: -40℃ ~ +70℃.
Functional Features Field signal collection; signal isolation; on-off control output; communication with main controller.
Application Scenarios Power generation equipment control cabinet, industrial prime mover auxiliary monitoring.
Performance Parameters Channel isolation design, high EMC immunity.

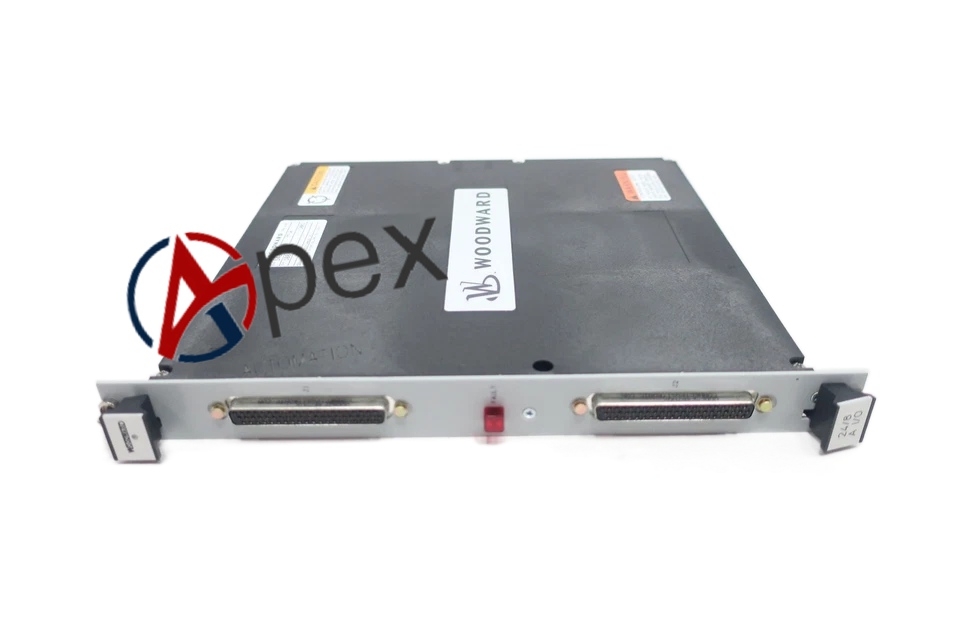

Structural Characteristics Rack mount module, pluggable terminals, conformal coated PCB.
Working Principle Collect field switch and analog signals, convert signals to digital data and send to main CPU, receive command from CPU and output control signal to field devices.
Installation Requirements Install in sealed control cabinet, shield cable for analog signals, anti-static operation during replacement.
Usage Notes Check channel status after power on, do not exceed rated voltage of each channel.
