Technical Specifications 24VDC power supply; multi-channel analog input; signal filtering and galvanic isolation circuit; operating temperature -40℃ ~ +70℃.
Functional Features Weak signal amplification, noise filtering, signal isolation, channel fault diagnosis.
Application Scenarios Gas turbine, steam turbine and genset process parameter monitoring loops.
Performance Parameters Low signal distortion, high sampling precision, strong anti-electromagnetic interference.

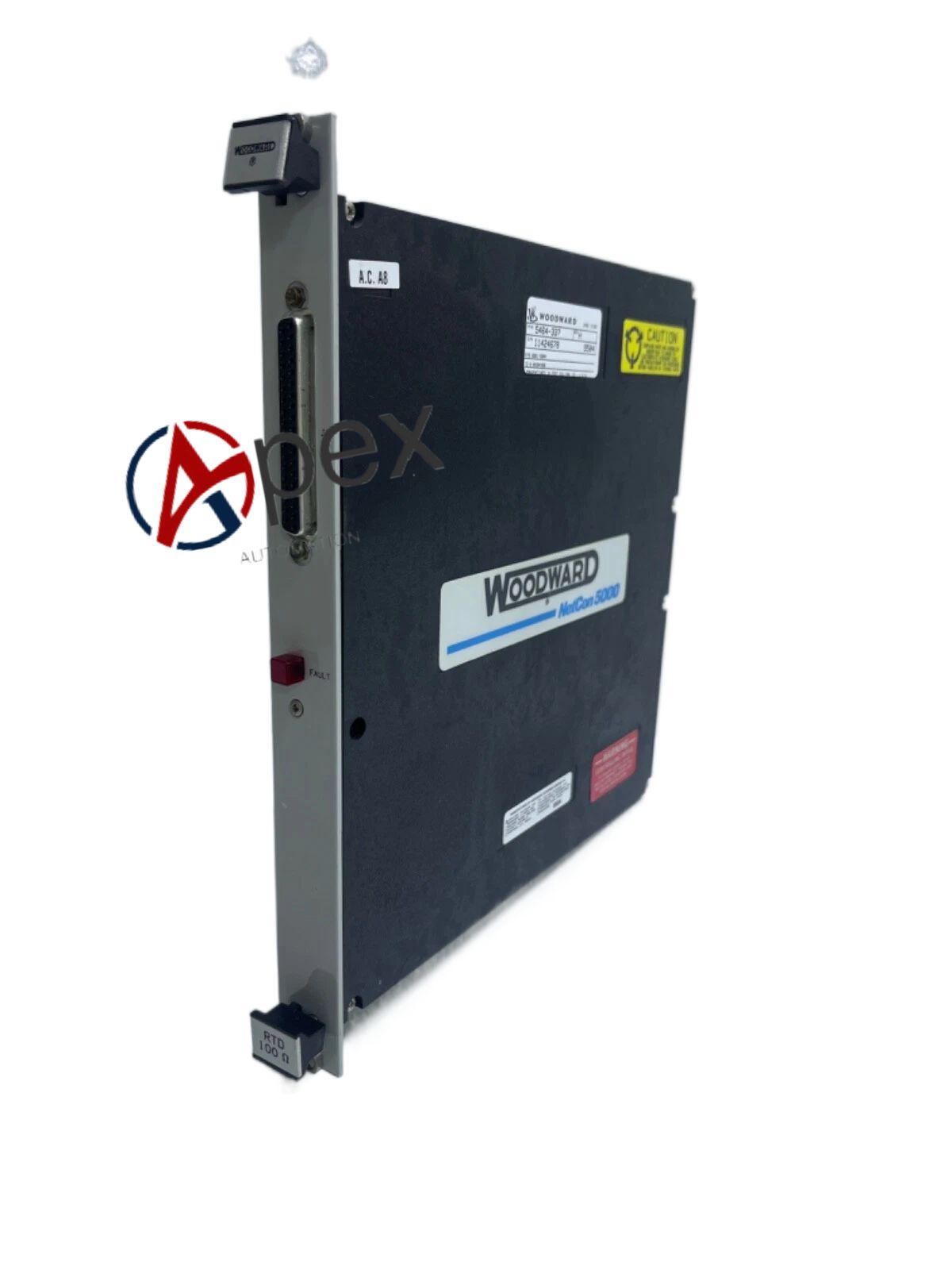

Structural Characteristics Rack pluggable printed circuit board, onboard signal terminals.
Working Principle Receive raw analog signals from pressure, temperature transmitters, filter and convert them into standard signals for main processor.
Installation Requirements Install close to field sensor side, separate signal cables and power cables.
Usage Notes Inspect shielding grounding; calibrate each input channel periodically.
