Technical Specifications 24VDC power supply, frequency pulse signal input, digital signal output. Operating temperature: -40℃ ~ +70℃.
Functional Features Pulse signal shaping, speed calculation, signal fault diagnosis, overspeed pre-alarm, data upload.
Application Scenarios Gas engine, diesel generator and rotating machinery speed monitoring system.
Performance Parameters High speed resolution, strong anti-interference for pulse noise.

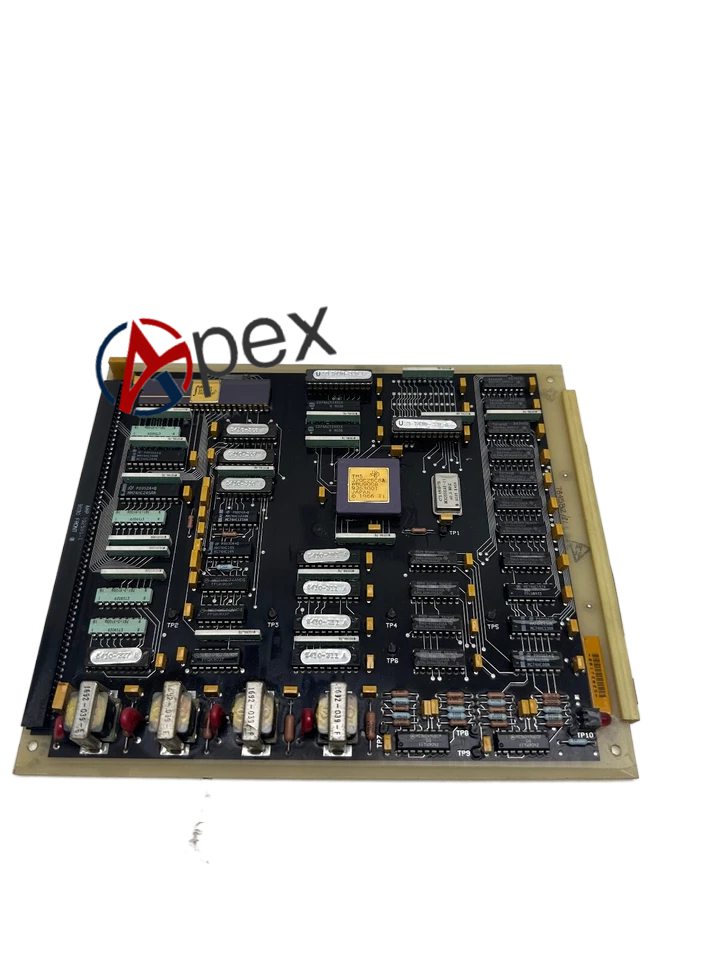

Structural Characteristics PCB board with gold-plated edge connector and built-in signal conditioning circuit.
Working Principle Acquire pulse signals from speed pickup, filter interference, compute real-time rotational speed and transmit data to main controller.
Installation Requirements Shielded twisted pair for speed wiring, separate from high-power cables.
Usage Notes Check magnetic pickup gear clearance before commissioning.
