Technical Specifications VMEbus interface, Profibus DP protocol, single Profibus channel, 5V/24V power option.
Functional Features Profibus master/slave communication, VME bus data exchange, bus fault monitoring, diagnostic information output.
Application Scenarios Railway control, military industry, heavy industry equipment, VME industrial control computer system.
Performance Parameters High reliability bus transmission, strong shock and vibration resistance, stable Profibus signal transmission.

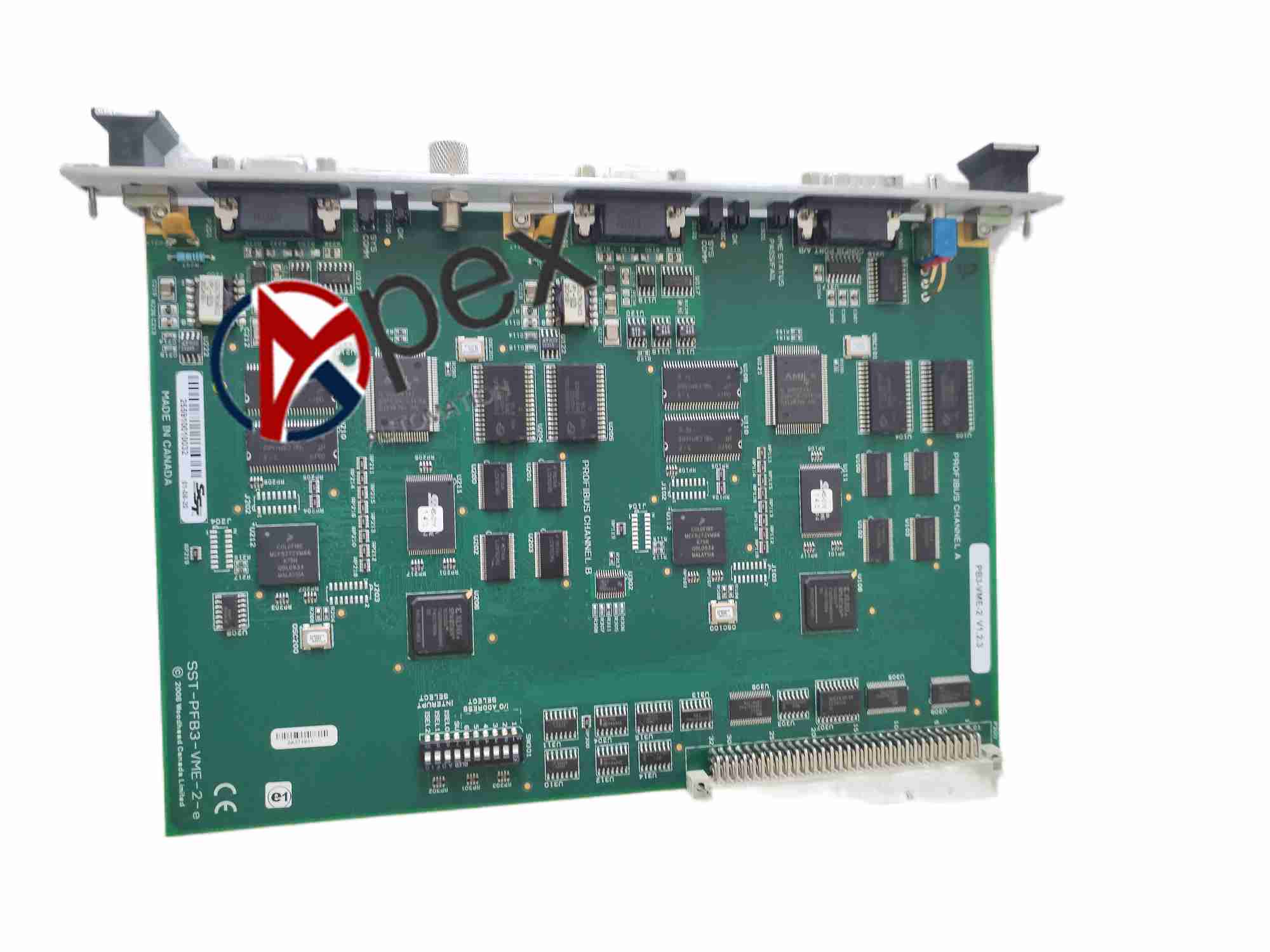

Material Composition Fiberglass PCB, VME gold-plated backplane connector, metal shielding frame, plastic DB9 port housing.

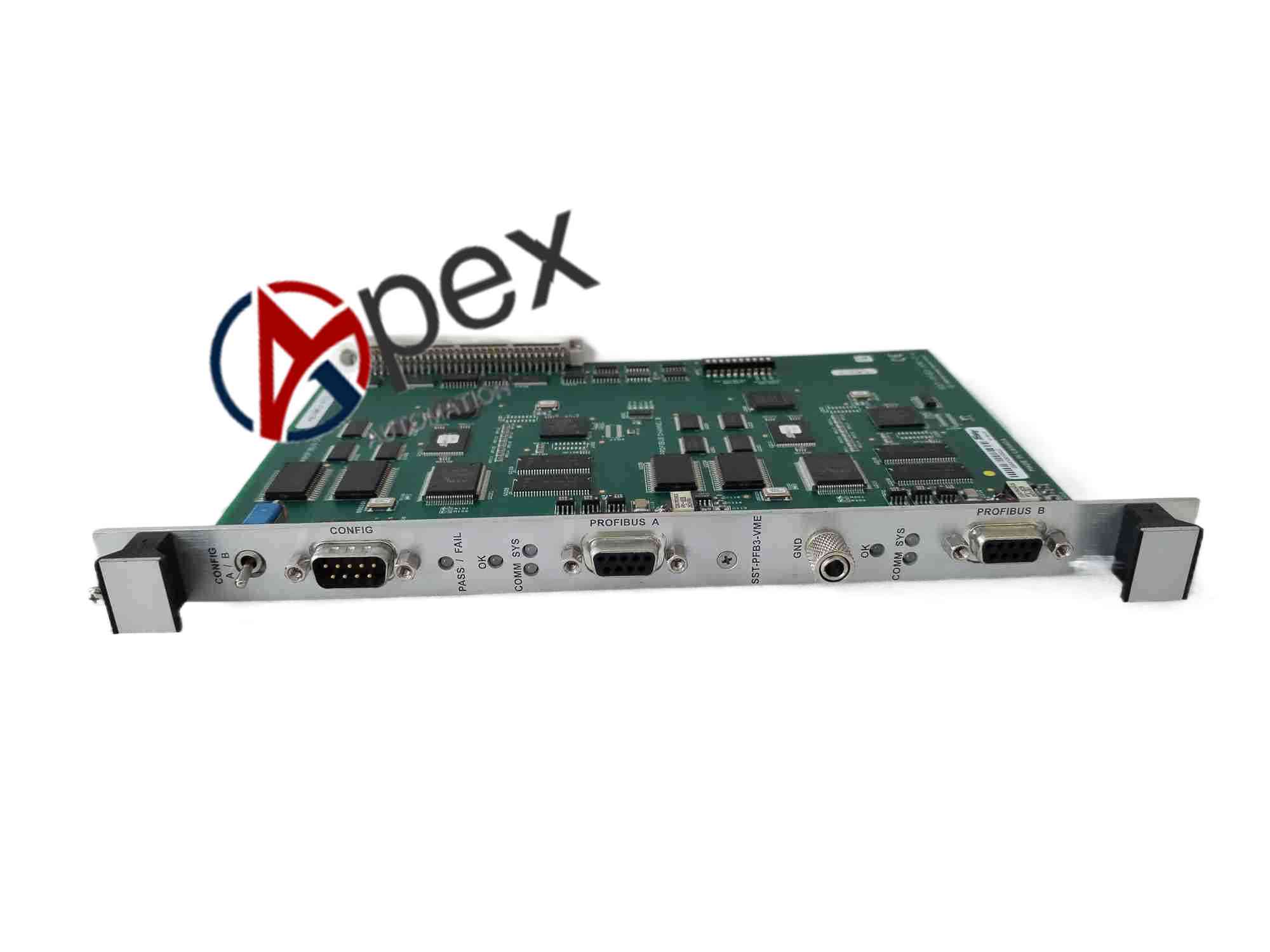

Structural Characteristics VME standard plug-in board structure, front panel with LED indicators and DB9 Profibus port.
Working Principle Realize protocol conversion between VME bus and Profibus DP, exchange real-time data between VME controller and Profibus field devices.
Installation Requirements Insert board into VME rack slot, lock the module, connect Profibus shielded cable and complete system grounding.
Usage Notes Check VME backplane signal definition. Set Profibus station address correctly. Prevent mechanical vibration damage.
