Technical Specifications PCI bus interface, Profibus DP protocol, hardware version V1, DB9 bus connector, powered by PCI slot.
Functional Features Profibus master and slave communication, field device data exchange, bus diagnostic function, station configuration.
Application Scenarios Industrial monitoring workstation, equipment maintenance debugging, factory production data acquisition system.
Performance Parameters Stable communication transmission, EMC noise suppression, continuous long-time operation, standard Profibus timing.
Material Composition Fiberglass printed circuit board, metal shielding plate, gold-plated PCI edge connector, plastic port shell.

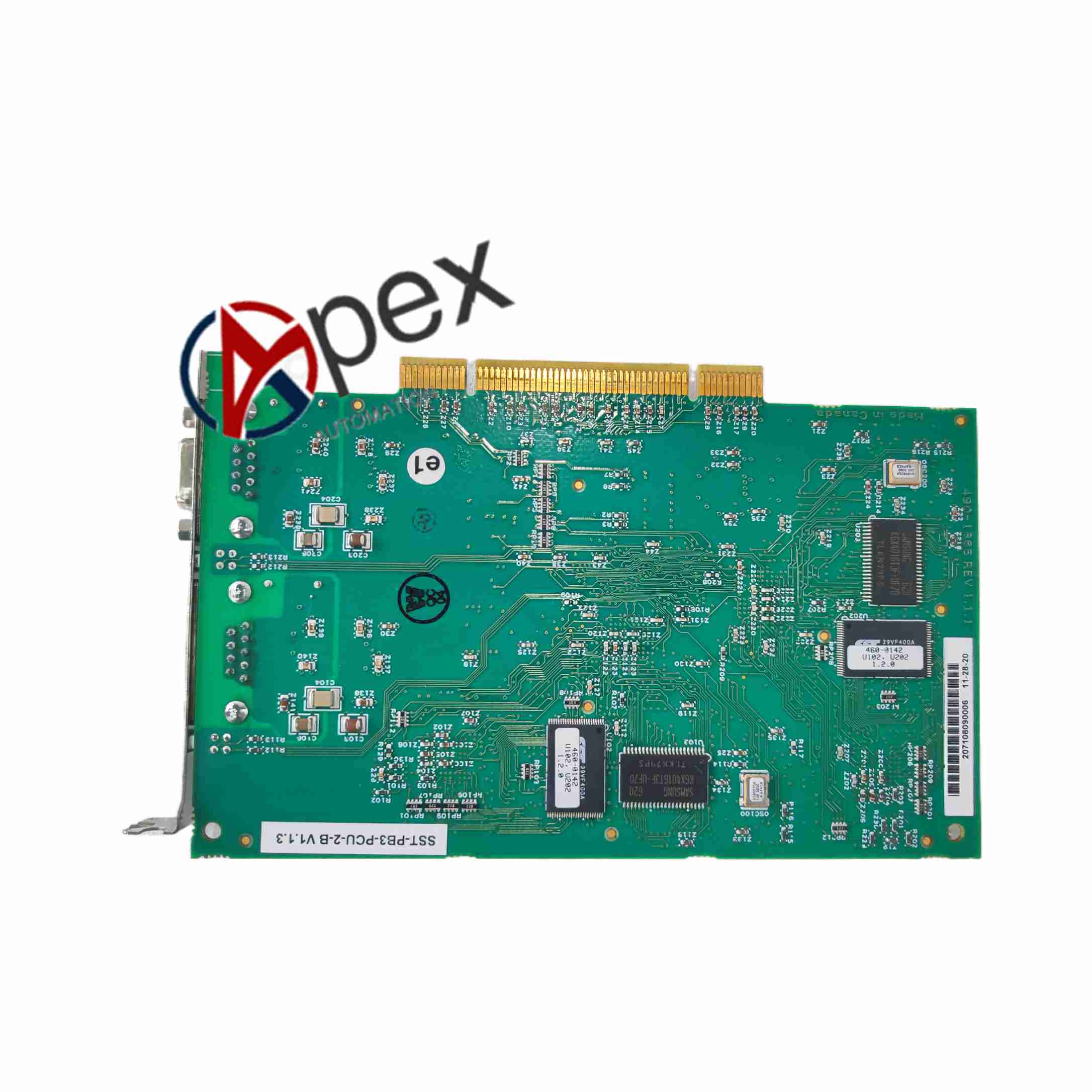

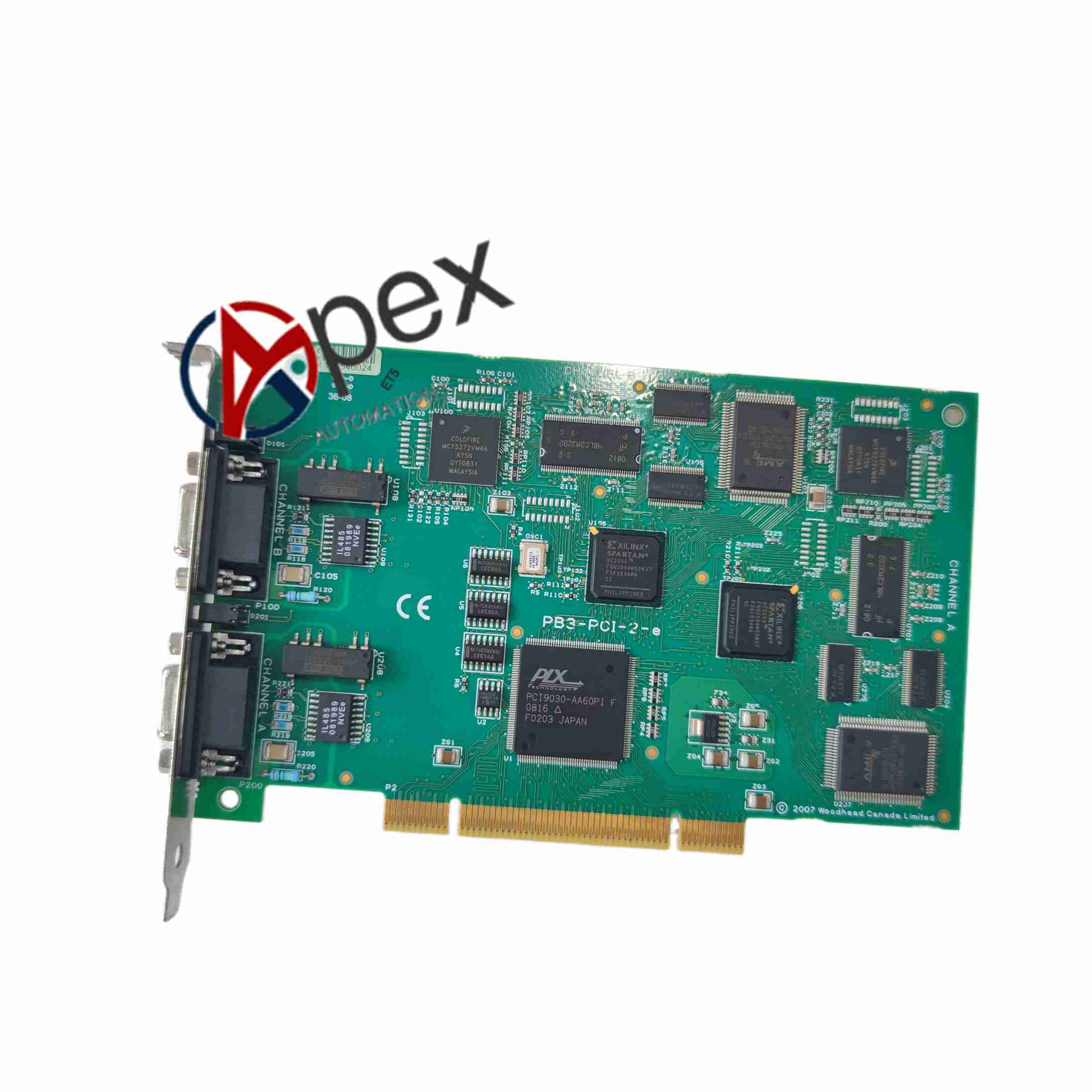

Structural Characteristics Standard PCI card structure, rear DB9 Profibus port, metal fixing bracket, version marking on PCB.
Working Principle Convert data between PCI bus and Profibus DP protocol, realize real-time communication between industrial PC and Profibus field instruments.
Installation Requirements Insert into industrial PC PCI slot, fasten bracket, install corresponding V1 version driver, connect Profibus cable.
Usage Notes Use driver matching V1 hardware. Check Profibus terminal resistor setting. Avoid strong electromagnetic interference.
