Technical Specifications PCI Express interface, Profibus DP protocol, single or dual channel option, 32-bit data transmission.
Functional Features Profibus master/slave communication, data acquisition from field bus devices, bus diagnosis, data mapping configuration.
Application Scenarios Industrial computer monitoring system, factory data acquisition, test bench, Profibus network host station.
Performance Parameters High-speed PCIe data transmission, stable Profibus communication, built-in EMC protection, wide working temperature.
Material Composition Fiberglass circuit board, metal shielding bracket, gold-plated PCIe edge connector, plastic port baffle.

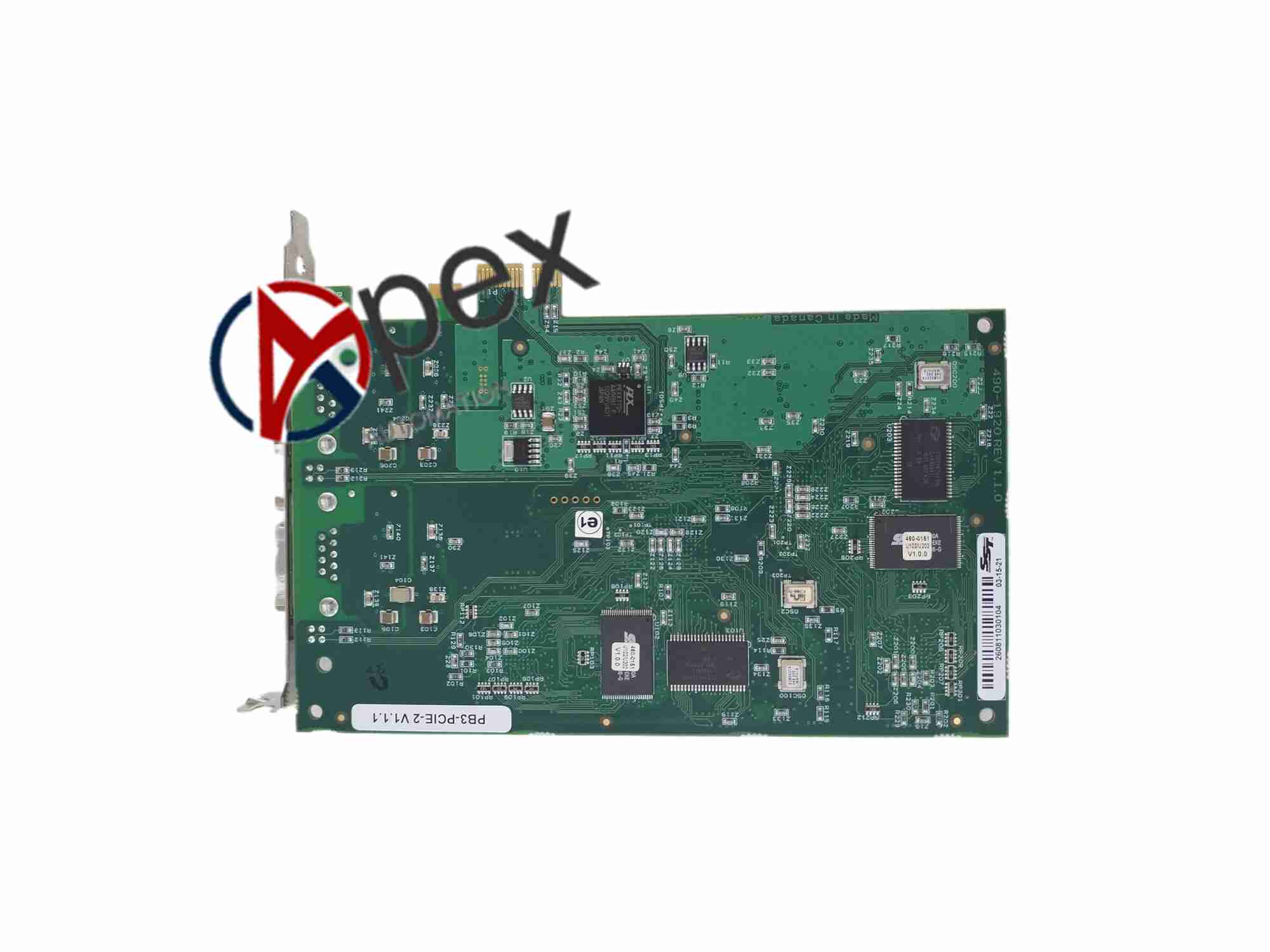

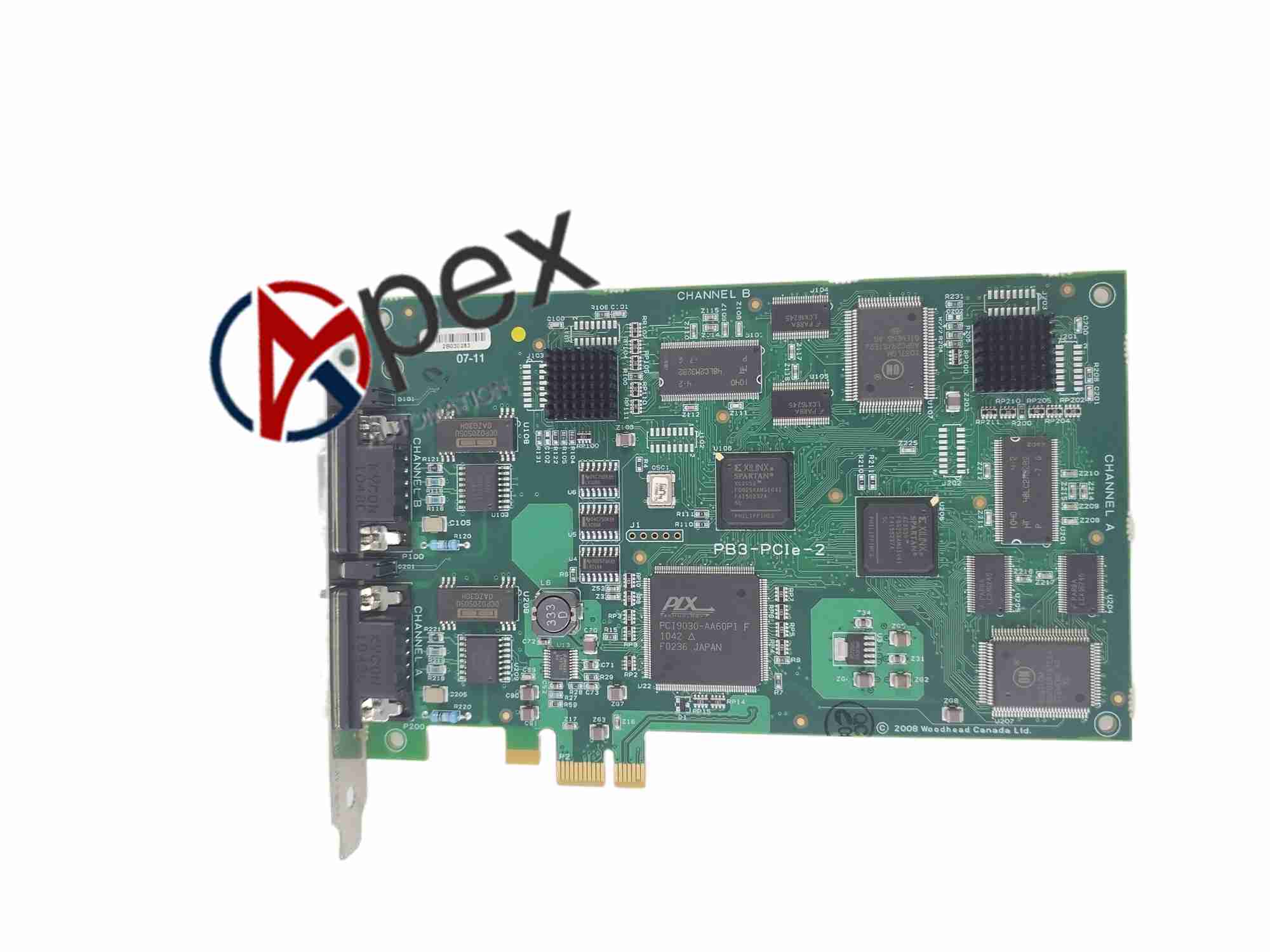

Structural Characteristics Standard PCIe half-height card structure, external Profibus DB9 connector, metal shielding shell.
Working Principle Realize data interaction between industrial PC and Profibus DP field equipment through PCIe bus and Profibus protocol conversion.
Installation Requirements Insert card into PCIe slot of industrial PC, fix metal baffle, install driver software and connect Profibus cable.
Usage Notes Install matching driver version. Set correct Profibus station address. Use shielded Profibus cable.
