Technical Specifications Profibus DP protocol, redundant communication link, ControlLogix backplane interface, 24V DC power input.
Functional Features Dual channel Profibus communication, redundant link switching, real-time data transmission, bus fault diagnosis and alarm.
Application Scenarios Chemical industry, power plant, oil & gas and other industrial occasions requiring redundant bus communication.
Performance Parameters Fast redundant switchover, stable real-time data transmission, anti-interference design, 7×24 continuous operation.
Material Composition Flame retardant plastic front panel, fiberglass PCB, metal shielding frame, gold-plated backplane connector.

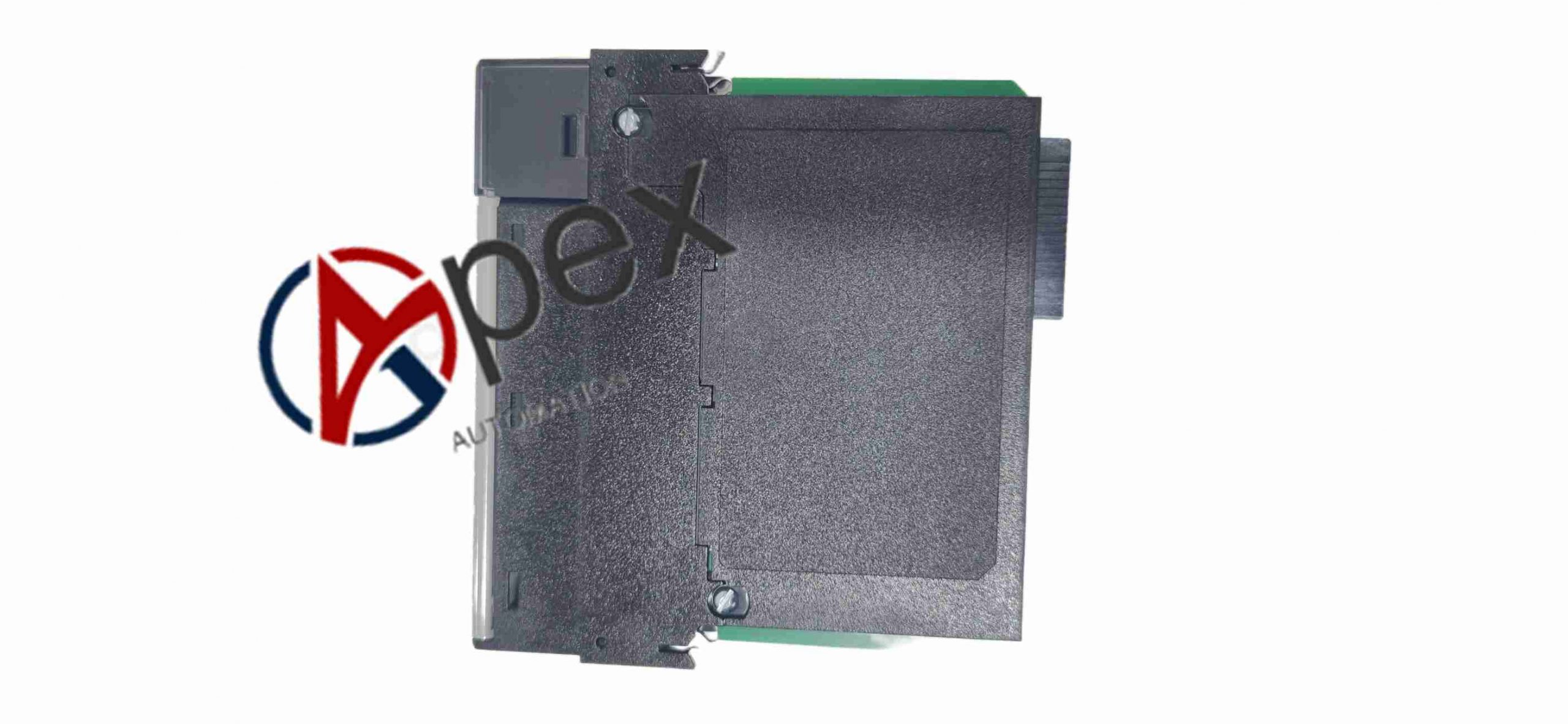

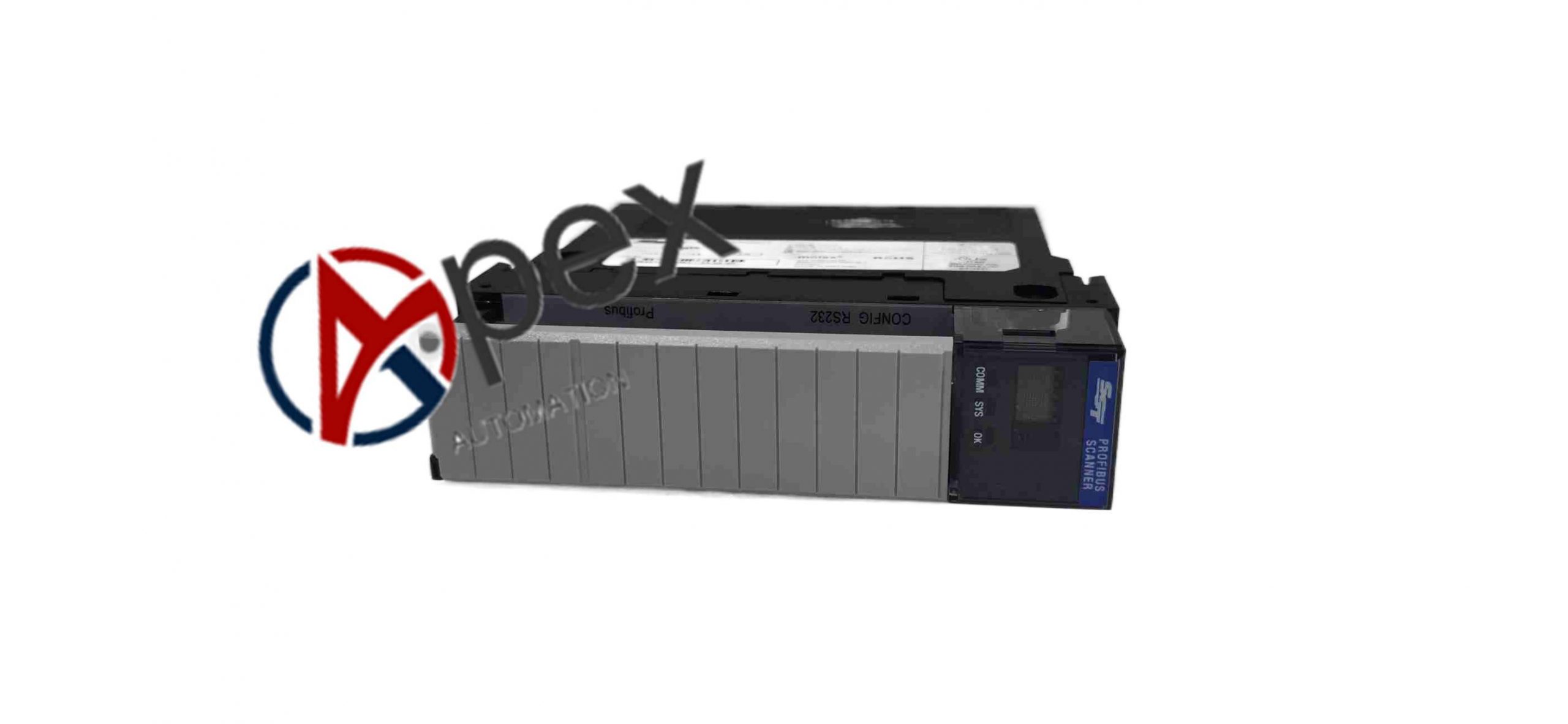

Structural Characteristics Rack plug-in module, dual Profibus communication ports, front LED indicators for channel status.
Working Principle Two independent Profibus channels run simultaneously. If one communication link fails, the system automatically switches to the backup channel to maintain normal data exchange.
Installation Requirements Install in ControlLogix rack, connect two Profibus cables, set redundant parameters and reliable grounding.
Usage Notes Keep two bus cables separated. Verify redundant function after configuration. Prevent bus short circuit.
