Technical Specifications 4 fully independent control loops. Support thermocouple, RTD, 4-20mA, voltage input. RS232/RS485 serial communication. 6 samples per second per channel. 100-240VAC power supply. Operating temperature:0°C ~ +50°C.
Functional Features Auto-tune PID algorithm. Ramp/soak temperature profile control. Sensor break detection. Process alarm. Multi-loop independent setpoint adjustment. Serial communication for remote monitoring.
Application Scenarios Ovens, furnaces, environmental chambers, plastic extrusion, semiconductor thermal process with up to 4 temperature control points.
Performance Parameters High measurement resolution, automatic zero and span calibration, stable PID regulation. Operating temperature:0~+50°C.

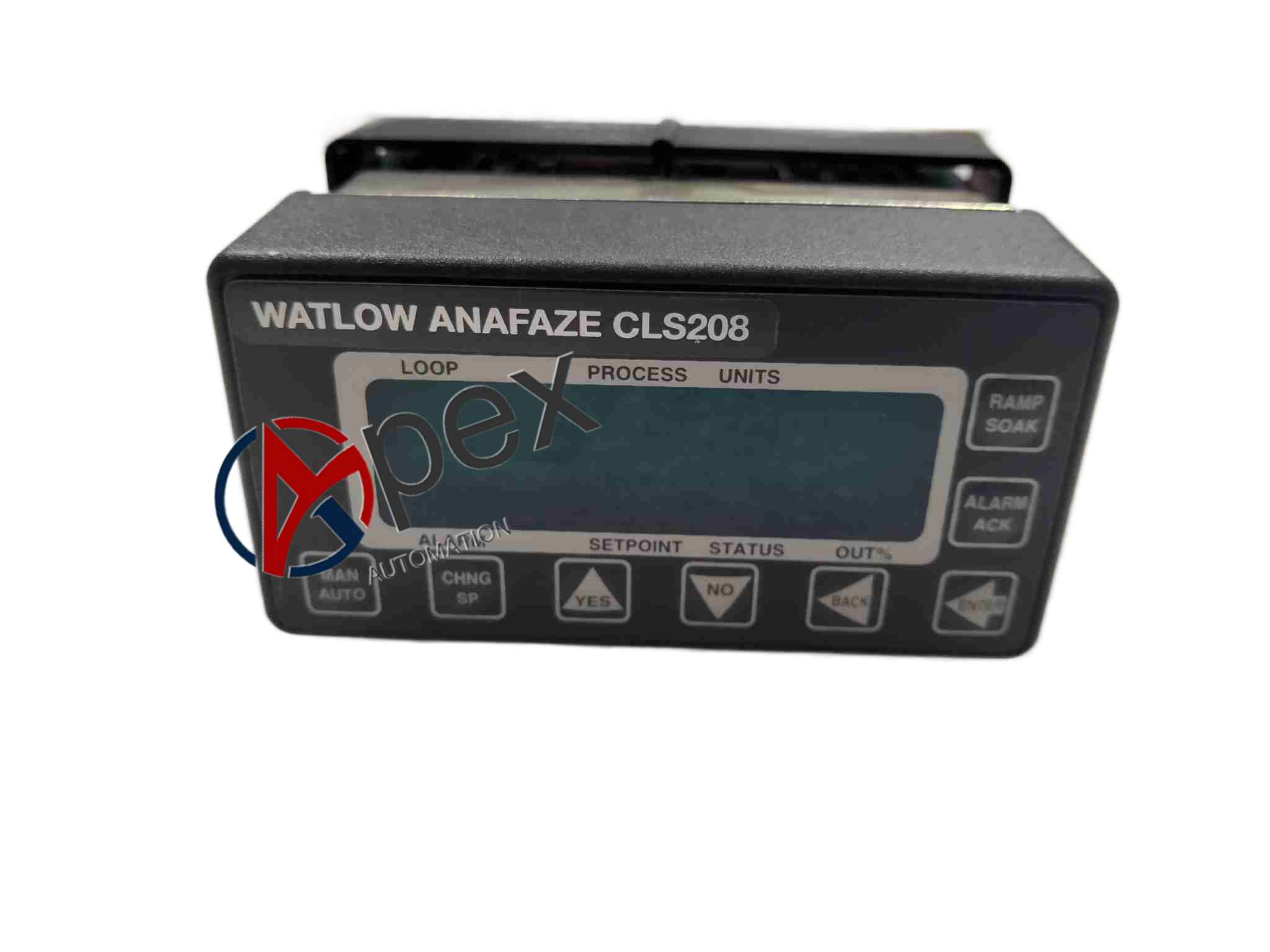

Structural Characteristics DIN rack mount controller unit, front display and keypad, terminal block for sensor and output wiring, internal processor and signal conditioning circuit.
Working Principle Read temperature sensor signal of each loop, compare measured value with setpoint, run PID algorithm, drive output to heater or cooling device to maintain target temperature.
Installation Requirements Mount on DIN rail in control cabinet. Connect sensor cables and control output wiring. Set sensor type and PID parameters via front panel or communication software.
Usage Notes Use dedicated compensation wire for thermocouple. Separate sensor signal cables from high power heater wiring.
