Technical Specifications 4 independent PID loops, thermocouple/RTD/analog input support, RS485 communication, relay or analog output options, 100-240VAC power. Operating temperature:0°C ~ +50°C.
Functional Features PID auto tuning, ramp soak profile programming, sensor fault alarm, multi-loop alarm output, host serial communication for SCADA integration.
Application Scenarios Industrial oven, thermal test chamber, heat treatment equipment requiring 4-point temperature control.
Performance Parameters High precision temperature measurement, stable closed-loop control. Operating temperature:0~+50°C.

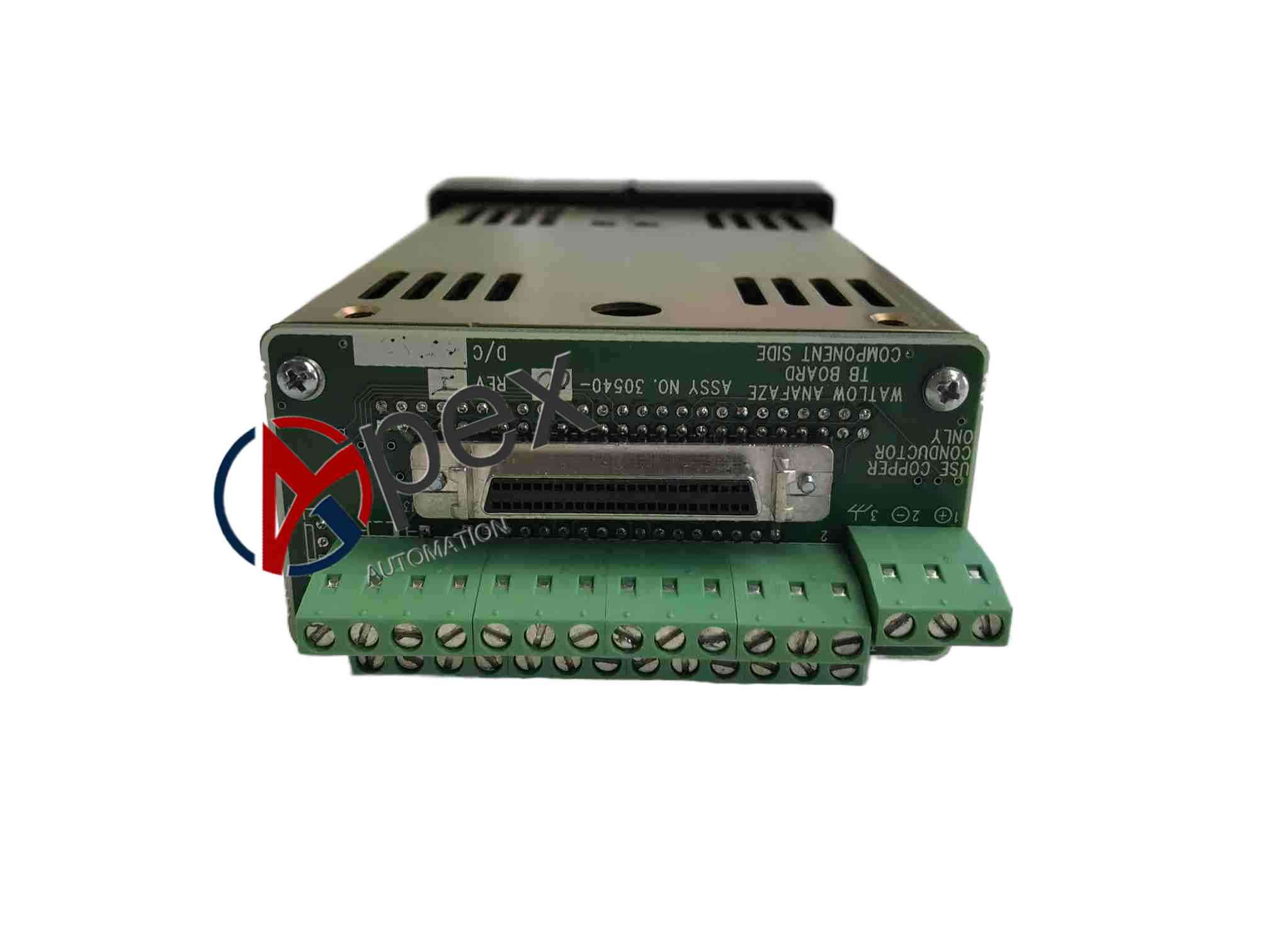

Structural Characteristics DIN rail housing, front keypad and display, field wiring terminal block, signal conditioning and processor circuit.
Working Principle Acquire temperature readings from each loop sensor, execute independent PID calculation, adjust control output to stabilize temperature at configured setpoint.
Installation Requirements DIN rail mounting. Wire temperature sensors and control outputs. Configure loop parameters through front panel or software.
Usage Notes Check sensor polarity before power on. Perform PID auto-tune under actual thermal load.
