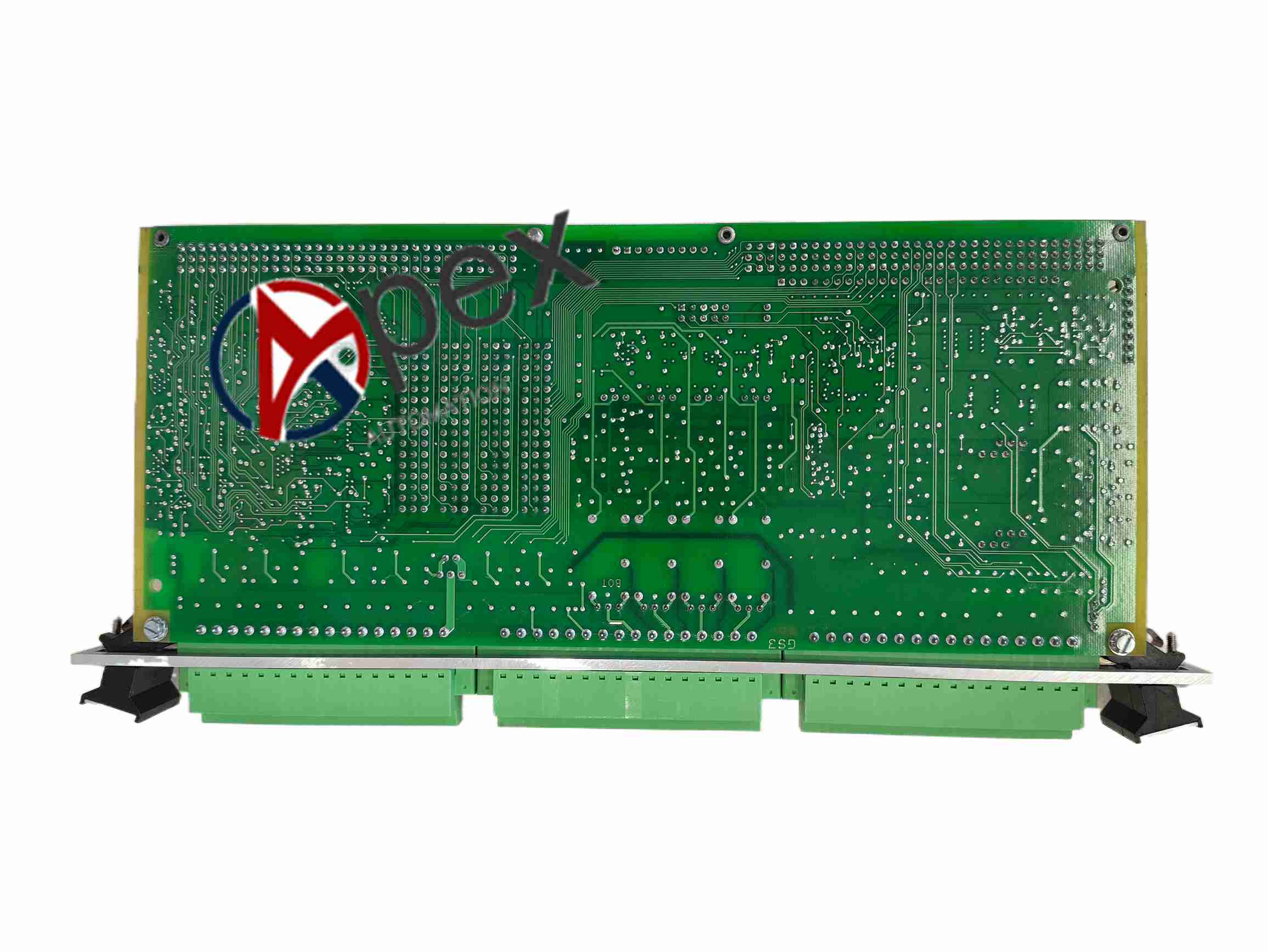

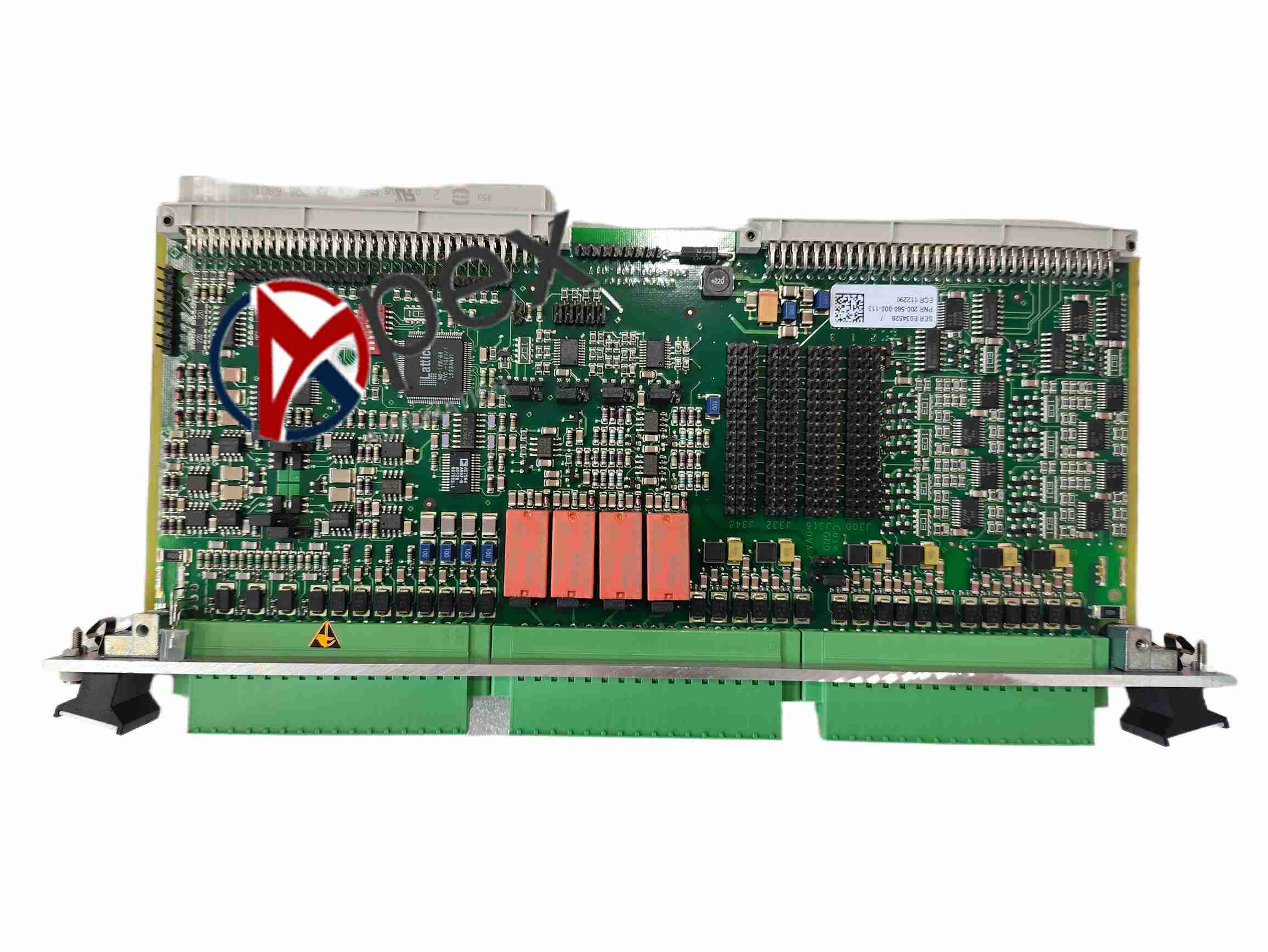

Vibrometer VM600 RLC16 200-570-000-111 / 200-570-101-015 Relay Output Card

Technical Specifications 16 relay output channels, programmable alarm and trip logic, backplane bus communication, 24V DC power supply.

Functional Features Relay contact output for alarm and trip, relay status feedback, channel fault diagnosis.

Application Scenarios Turbine, compressor, fan safety protection system, hardwired trip signal output.

Performance Parameters High isolation relay contacts, reliable trip action, fast response for protection signal.

Material Composition Flame retardant plastic housing, fiberglass PCB, industrial relays, copper terminal blocks, metal shielding.

Structural Characteristics Rack plug-in card structure, front terminal block for relay wiring, rear gold finger for backplane bus.

Working Principle Receive alarm and trip commands from CPUM main processor through backplane bus, drive internal relays to switch external hardwired protection circuits.

Installation Requirements Insert module into VM600 rack, connect relay output wiring to terminal block, lock module.

Usage Notes Check relay contact rated capacity. Do not overload trip circuit. Regularly test relay action.
