Technical Specifications 4 signal processing channels, support vibration, displacement and speed measurement, backplane bus interface, 24V DC power.
Functional Features Dynamic signal analysis, vibration parameter calculation, spectrum processing, data transmission to main processor.
Application Scenarios Rotating machinery vibration spectrum analysis, turbine and compressor condition monitoring.
Performance Parameters High-speed FFT calculation, high resolution signal analysis, stable continuous operation.

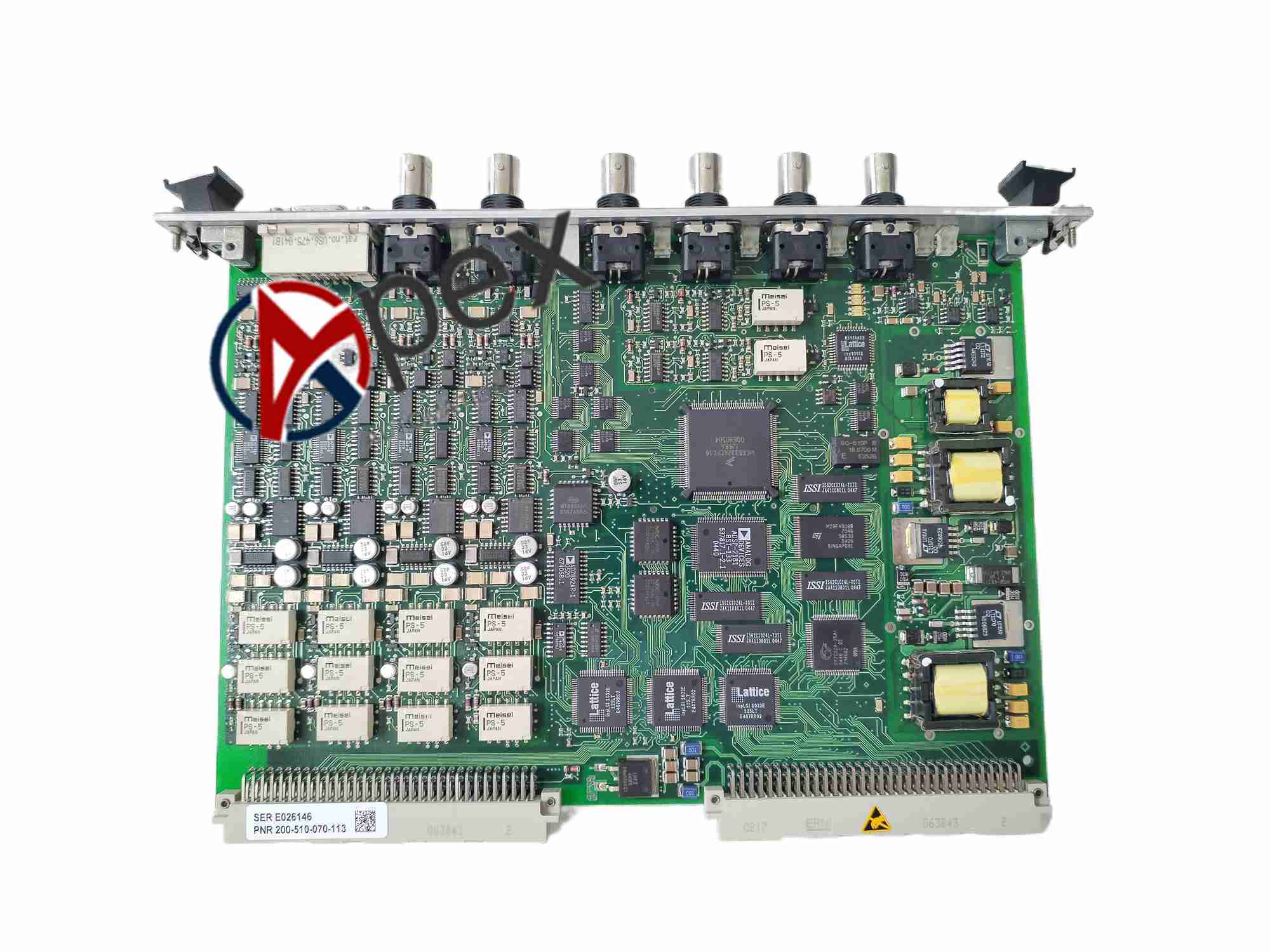

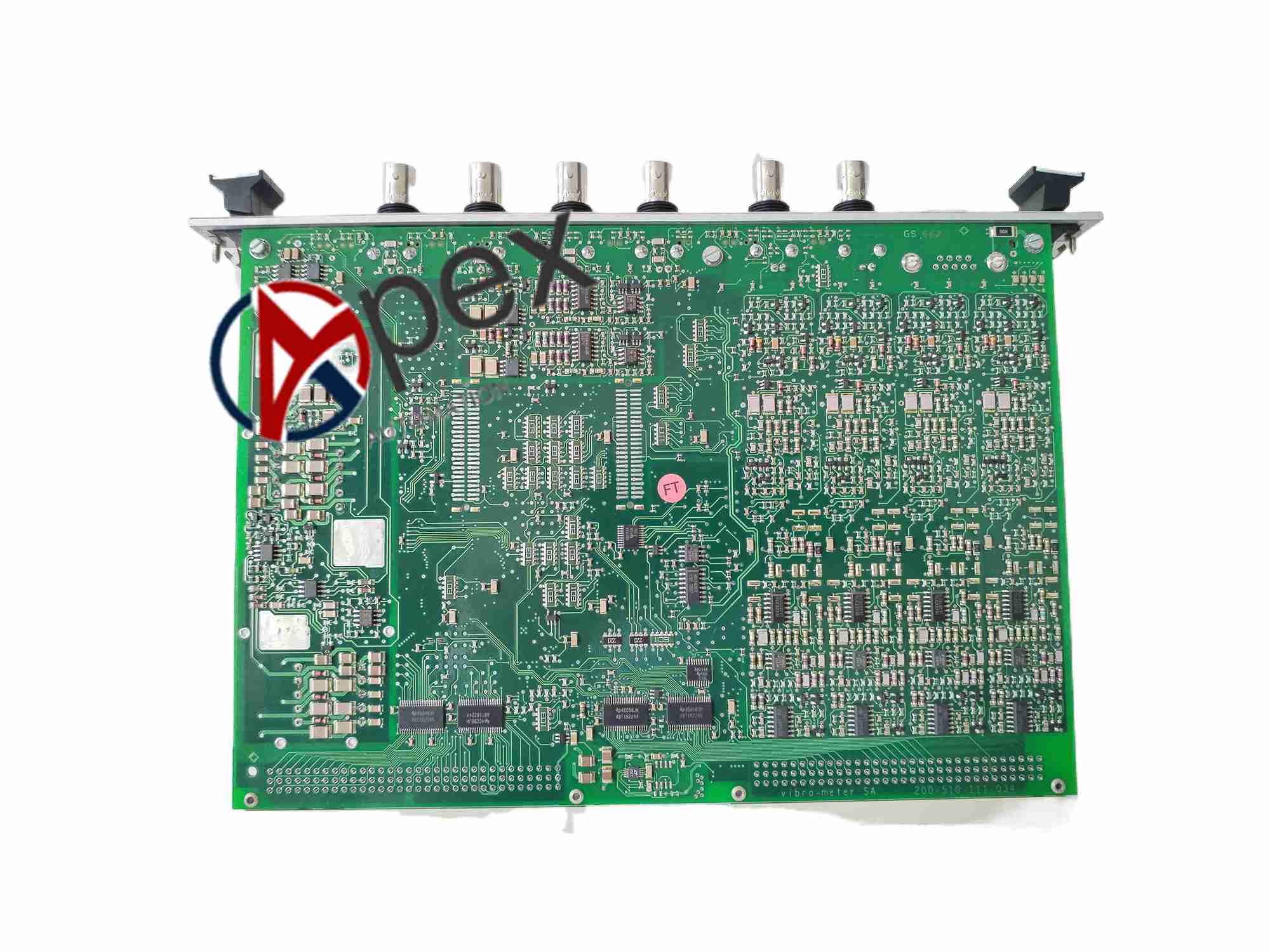

Material Composition Flame retardant plastic housing, fiberglass circuit board, metal shielding, gold-plated backplane connector.

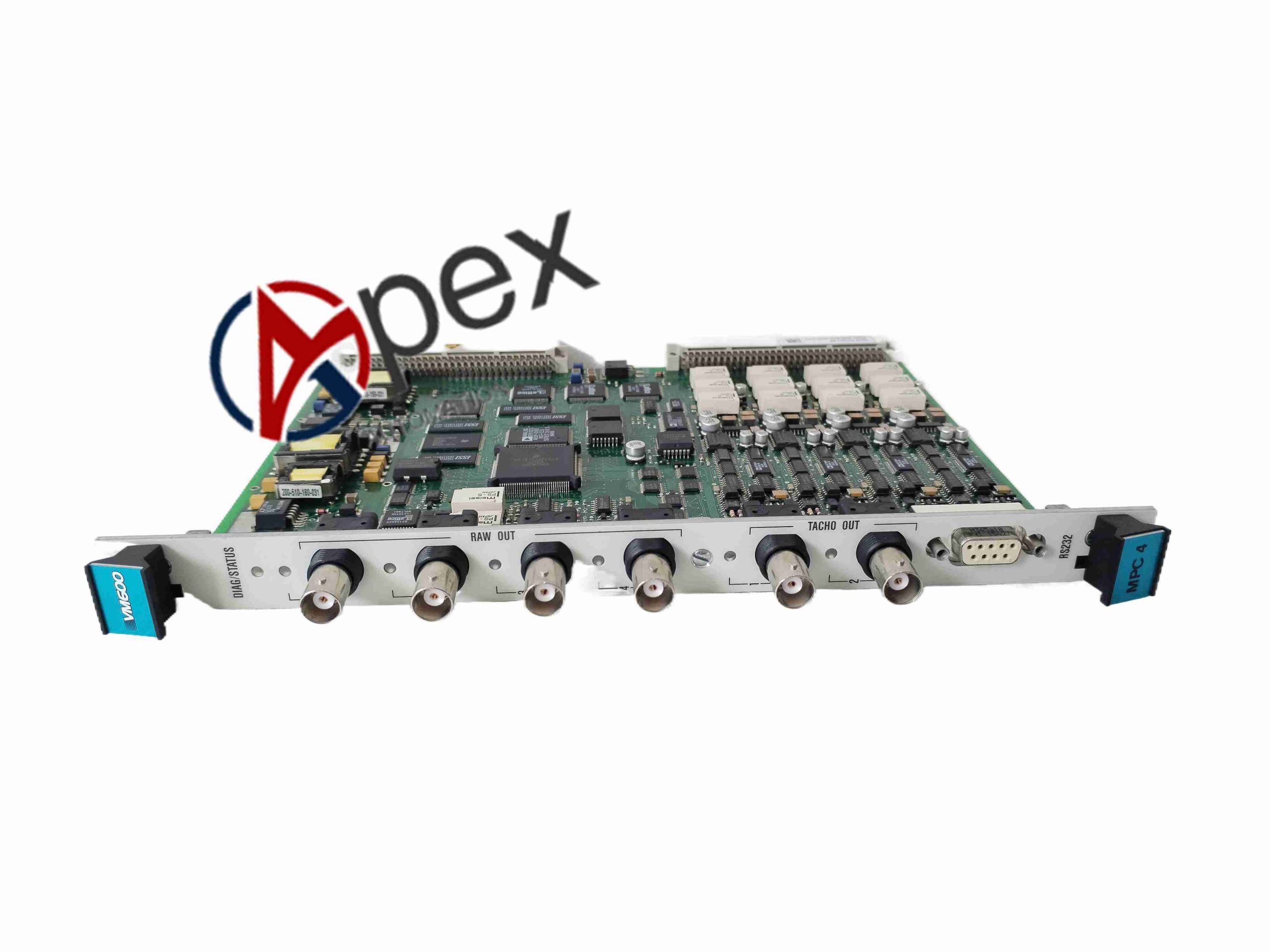

Structural Characteristics Rack plug-in card, front LED indicators, rear gold finger for backplane connection.
Working Principle Receive conditioned analog signals from I/O modules, perform digital signal processing and spectrum calculation, send calculated parameters to CPUM module.
Installation Requirements Insert into VM600 rack slot, lock module, download configuration and verify signal channel.
Usage Notes Keep away from high frequency noise source. Check sampling parameter setting before system start-up.
