Technical Specifications 4-channel dynamic signal processing, support vibration, shaft displacement and speed measurement, backplane bus communication.
Functional Features Real-time dynamic signal analysis, FFT spectrum calculation, vibration parameter extraction, data transfer to main processor.
Application Scenarios Power generation turbine, petrochemical compressor and other large rotating machinery online monitoring.
Performance Parameters High sampling rate, high calculation precision, stable spectrum analysis, strong anti-interference ability.

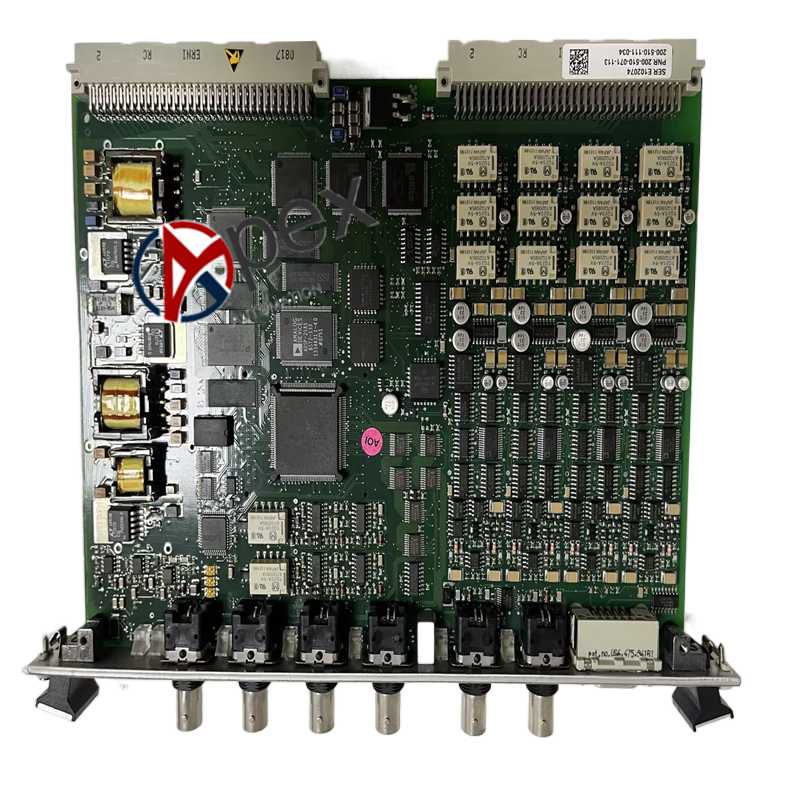

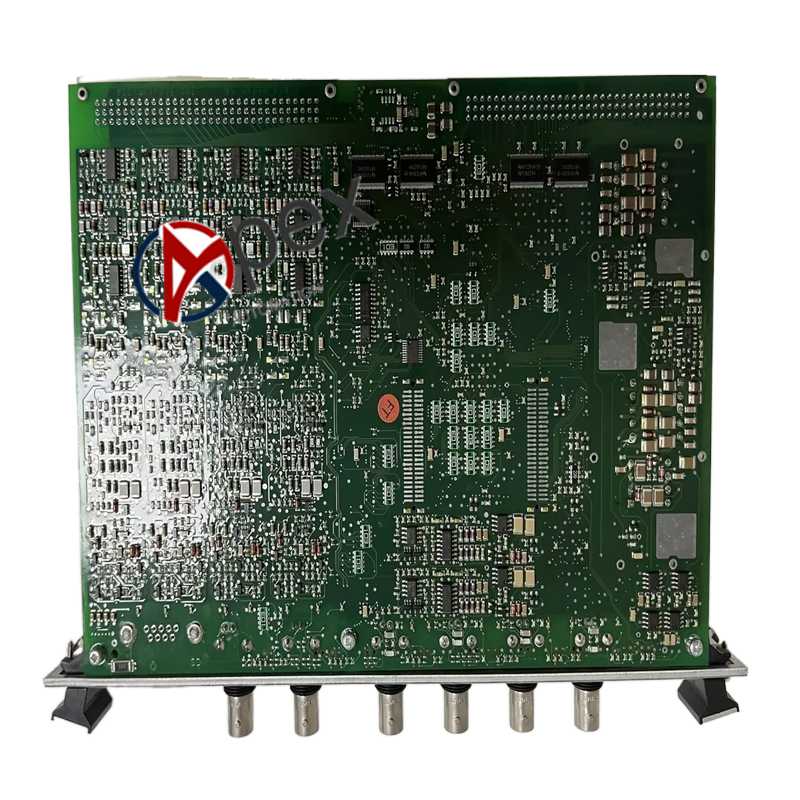

Material Composition Flame retardant plastic front panel, fiberglass PCB, metal shielding frame, gold-plated backplane connector.

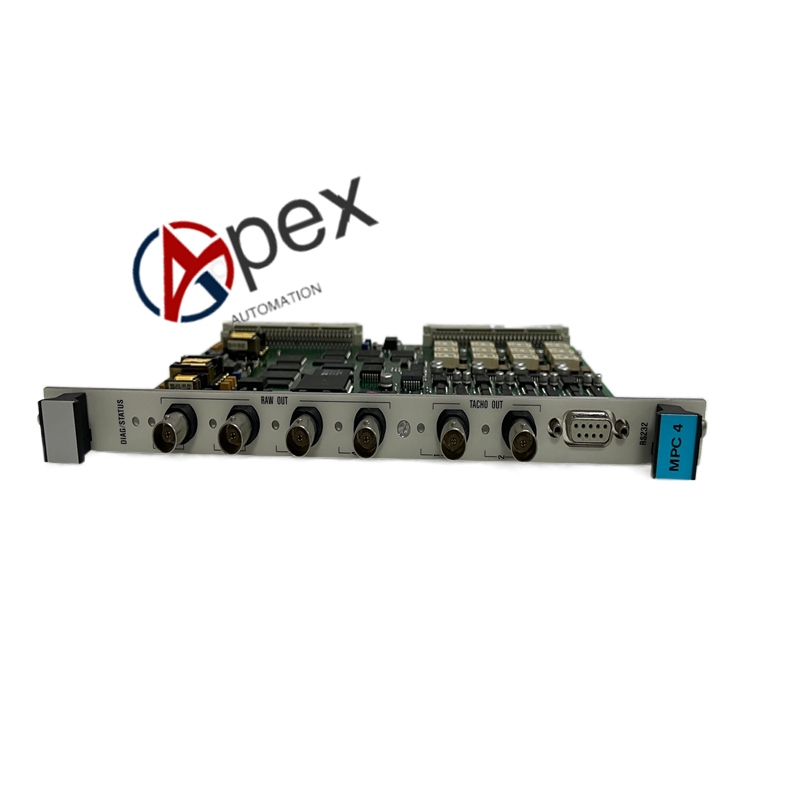

Structural Characteristics Rack plug-in card, front LED status indicators, rear gold finger connected to VM600 chassis backplane.
Working Principle Receive analog signals from IOC modules, carry out digital signal processing and spectrum analysis, transmit calculated vibration parameters to CPUM for protection logic judgment.
Installation Requirements Install into VM600 rack slot, lock module, match system configuration and complete grounding.
Usage Notes Verify part number compatibility before replacement. Do not modify sampling parameters randomly.
