Technical Specifications Multi-channel signal input, built-in network interface, backplane bus communication, 24V DC power supply.
Functional Features Field sensor signal acquisition, local signal processing, network data transmission, channel fault diagnosis.
Application Scenarios Industrial rotating machinery online monitoring, remote vibration data upload and equipment protection.
Performance Parameters Synchronous multi-channel sampling, stable network communication, good anti-electromagnetic interference performance.
Material Composition Flame retardant plastic front panel, fiberglass PCB, metal shielding frame, gold-plated backplane connector.

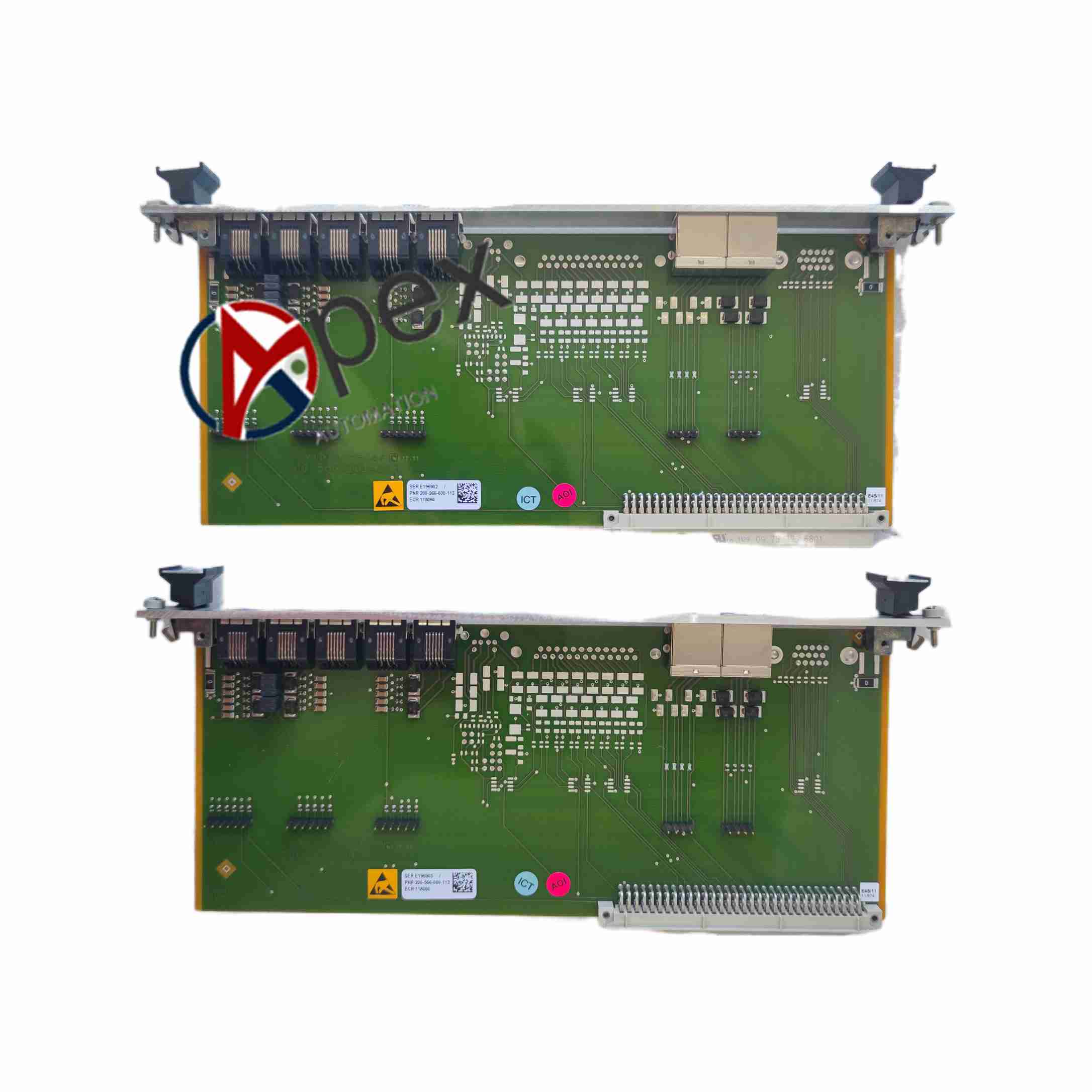

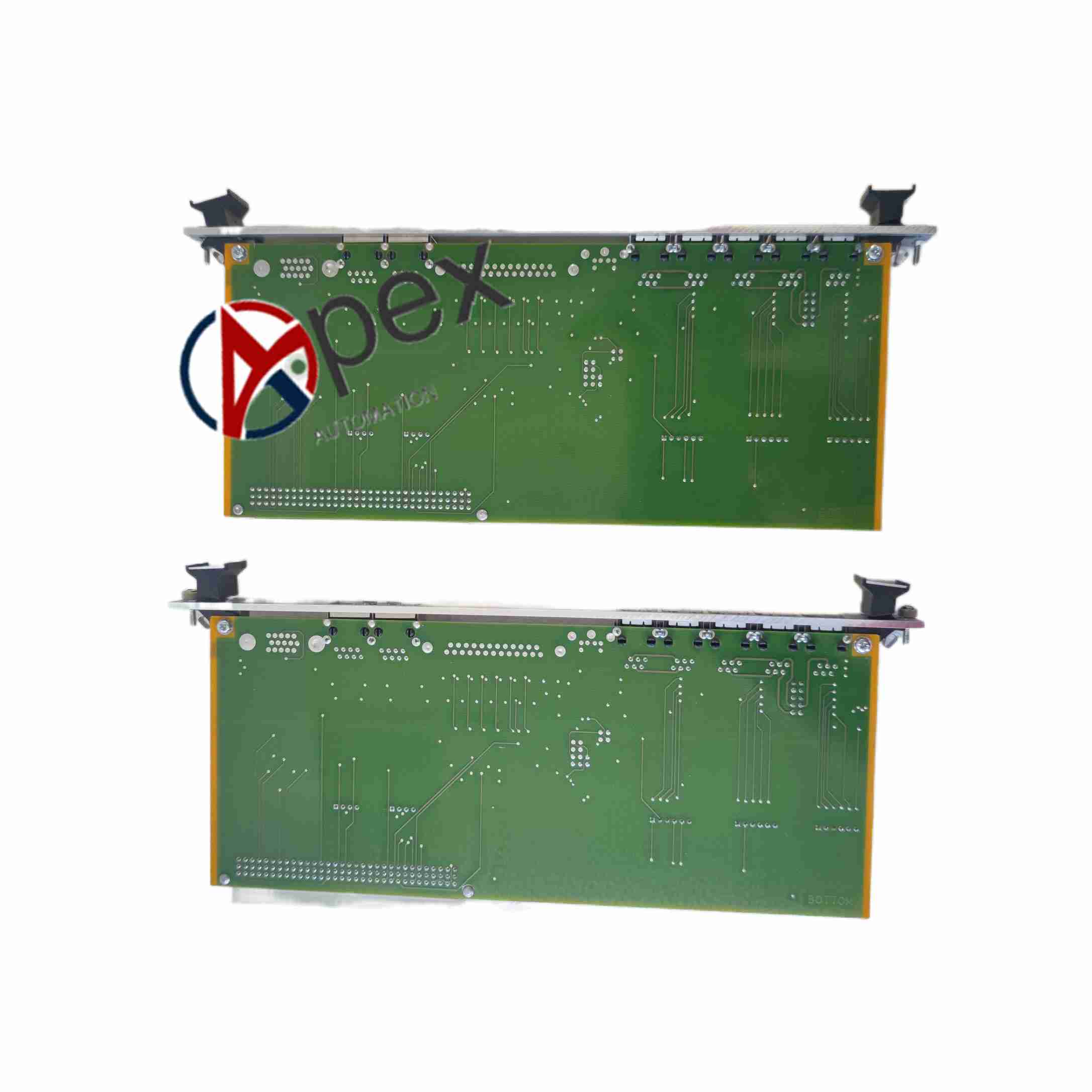

Structural Characteristics Rack plug-in card structure, front wiring terminals and communication port, rear gold finger for chassis backplane.
Working Principle Collect analog vibration signals from field sensors, convert to digital data, exchange data with CPUM module via backplane bus and support network data upload.
Installation Requirements Install in VM600 rack, connect sensor cables and network cable, complete module configuration.
Usage Notes Set network parameters correctly. Use shielded cable for sensor signal. Prevent surge voltage damage.
