Technical Specifications 4 measurement channels, support eddy current probe and velocity sensor, relay alarm output, backplane bus interface.
Functional Features Analog sensor signal acquisition, signal filtering, fault detection, relay alarm contact output.
Application Scenarios Turbine shaft displacement, shaft vibration monitoring, small and medium rotating machinery protection.
Performance Parameters High precision signal sampling, fast channel fault detection, reliable relay contact output.
Material Composition Flame retardant plastic front panel, fiberglass circuit board, metal shielding plate, gold-plated backplane connector.

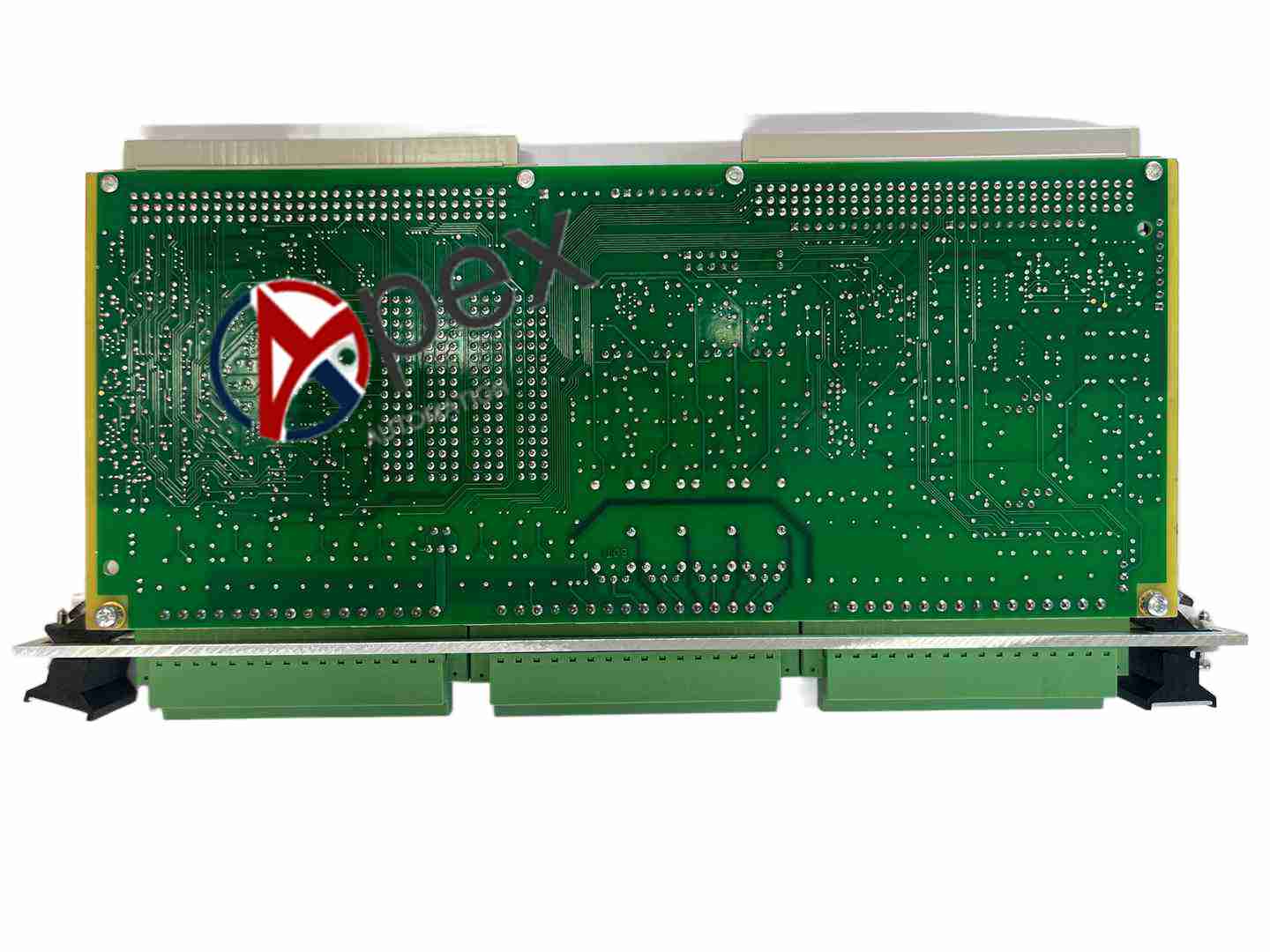

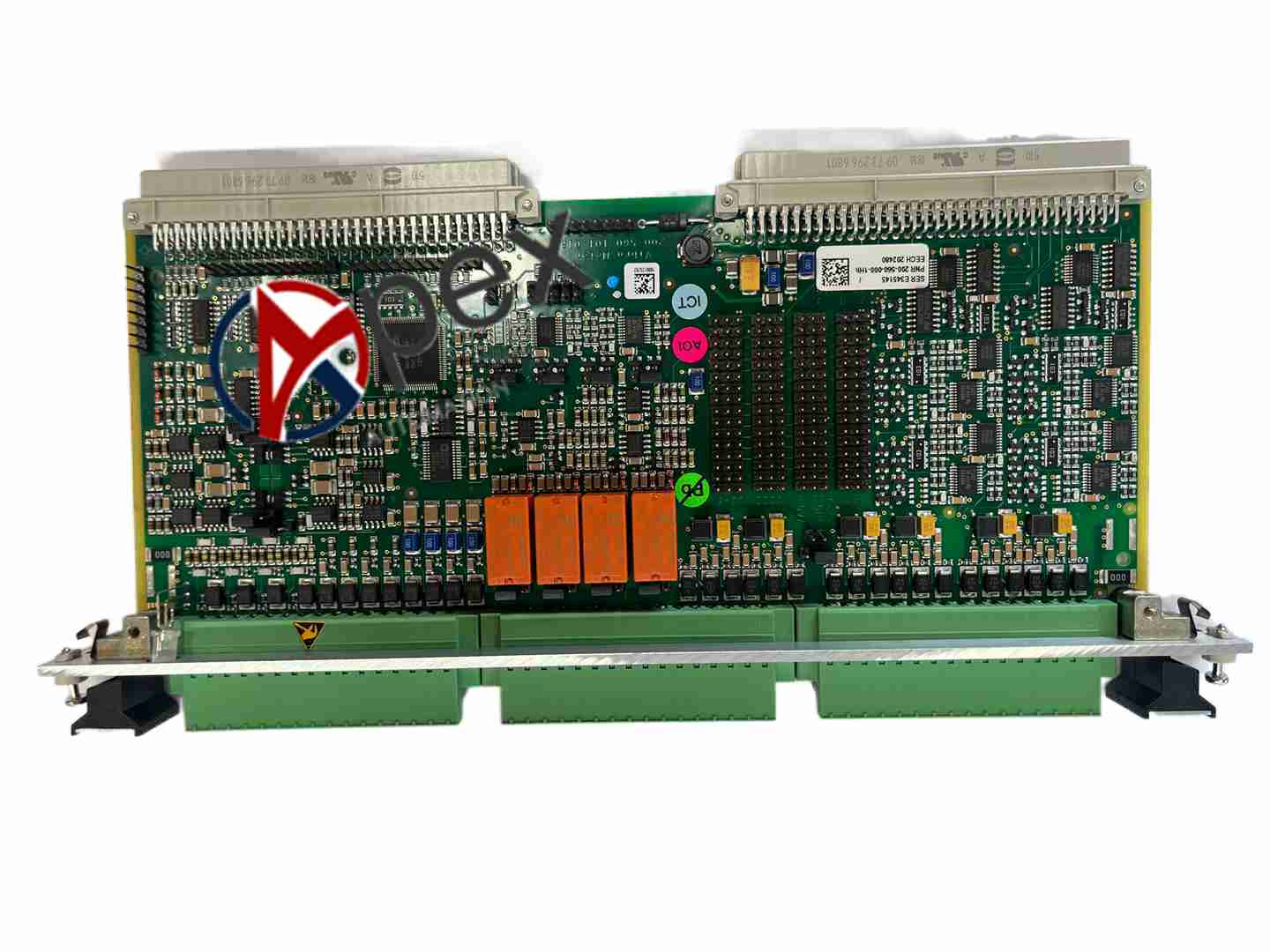

Structural Characteristics Rack plug-in card, front wiring terminal block, LED channel status indicators, rear gold finger interface.
Working Principle Collect analog signals from field vibration sensors, convert into digital data and send to main processor, output relay contact signal when alarm threshold is exceeded.
Installation Requirements Install in VM600 rack slot, connect sensor cables, tighten terminal screws and complete protective grounding.
Usage Notes Calibrate sensor channel after wiring. Avoid overvoltage input to signal channels.
