Technical Specifications High-performance CPU, backplane bus interface, multiple communication ports, 24V DC power supply, event memory storage.
Functional Features Vibration parameter calculation, protection logic judgment, alarm and trip logic processing, system configuration management, data storage.
Application Scenarios Large rotating machinery protection, turbine, generator, compressor safety monitoring and trip protection.
Performance Parameters Fast logic response, high reliability trip judgment, data recording, support redundant system configuration.
Material Composition Flame retardant plastic front panel, fiberglass PCB, metal shielding, gold-plated backplane connector, memory chip.

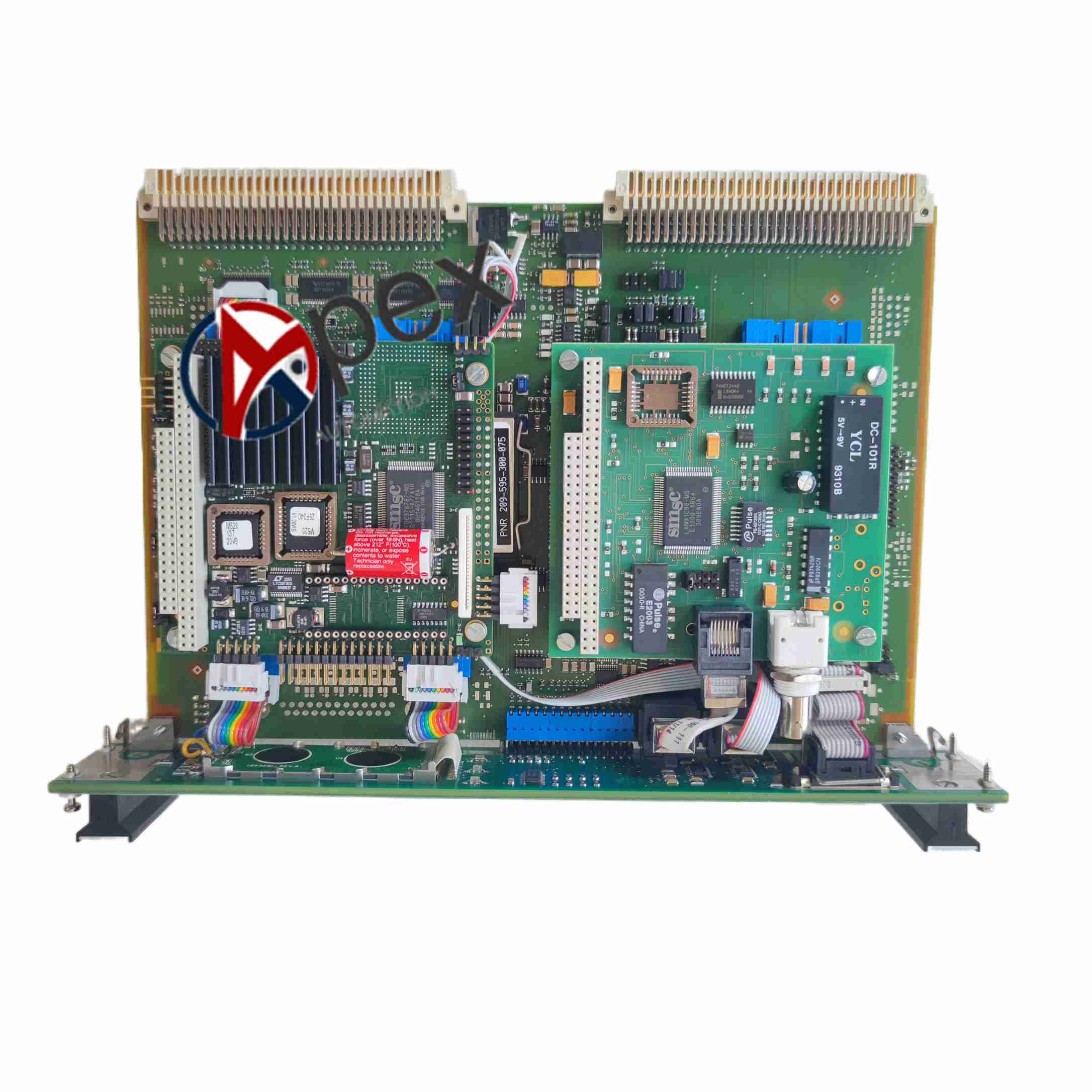

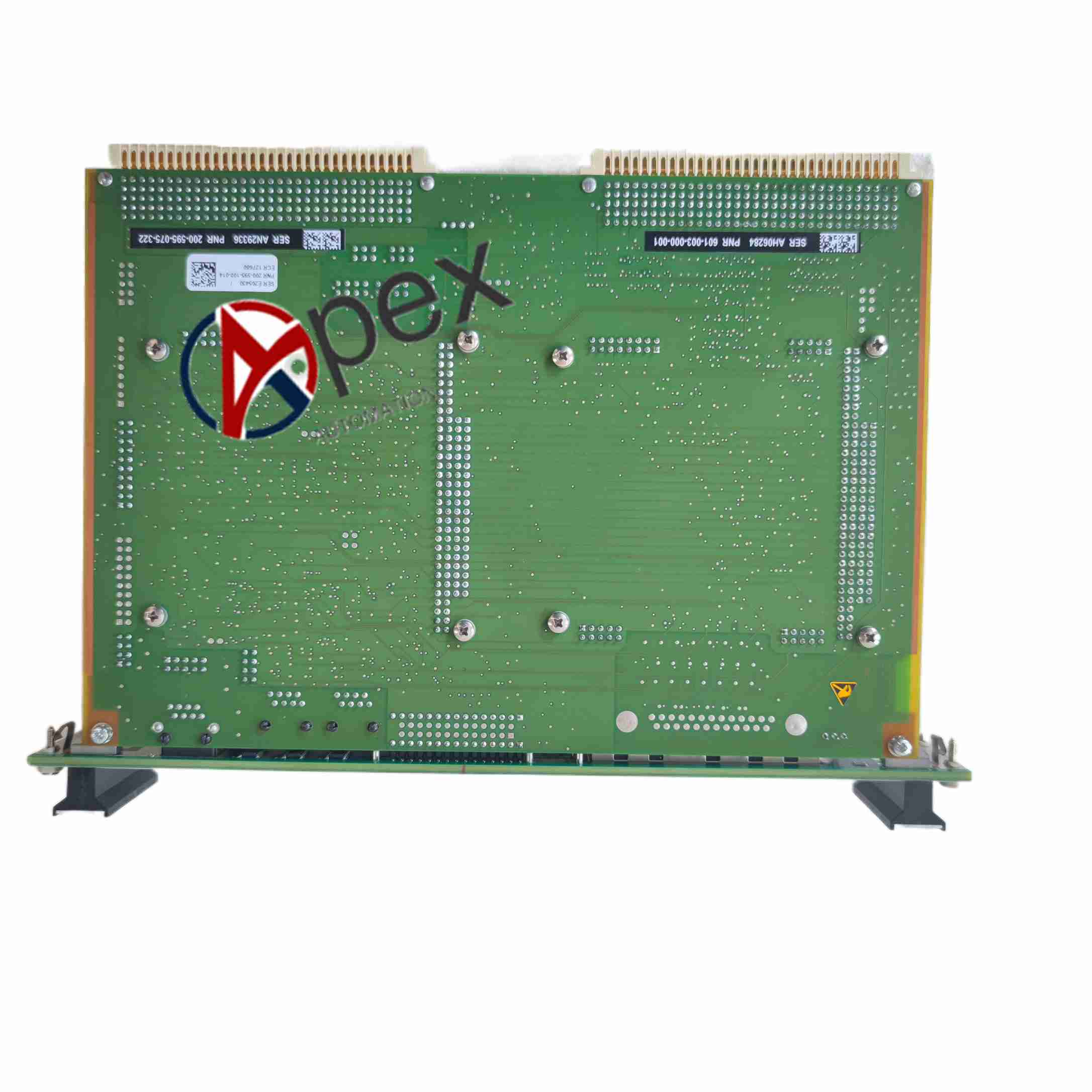

Structural Characteristics Plug-in rack card, front LED indicators, rear gold finger connected to chassis backplane.
Working Principle Collect measurement data from all I/O modules through backplane bus, calculate vibration and displacement values, compare with threshold to trigger alarm or trip output.
Installation Requirements Install in designated rack slot of VM600 chassis, lock card, download system configuration and check grounding.
Usage Notes Backup configuration file after commissioning. Do not modify protection threshold without authorization.
