Technical Specifications Multi-channel data acquisition interface, industrial Ethernet and serial communication, backplane bus interface, 24V DC power.
Functional Features Vibration data processing, network communication with upper monitoring system, module status monitoring, event and alarm data upload.
Application Scenarios Power plant turbine, petrochemical compressor, heavy rotating equipment online vibration monitoring system.
Performance Parameters High-speed data calculation, stable network transmission, fault event recording, high anti-interference performance.
Material Composition Flame retardant plastic front panel, fiberglass circuit board, metal shielding frame, gold-plated backplane connector.

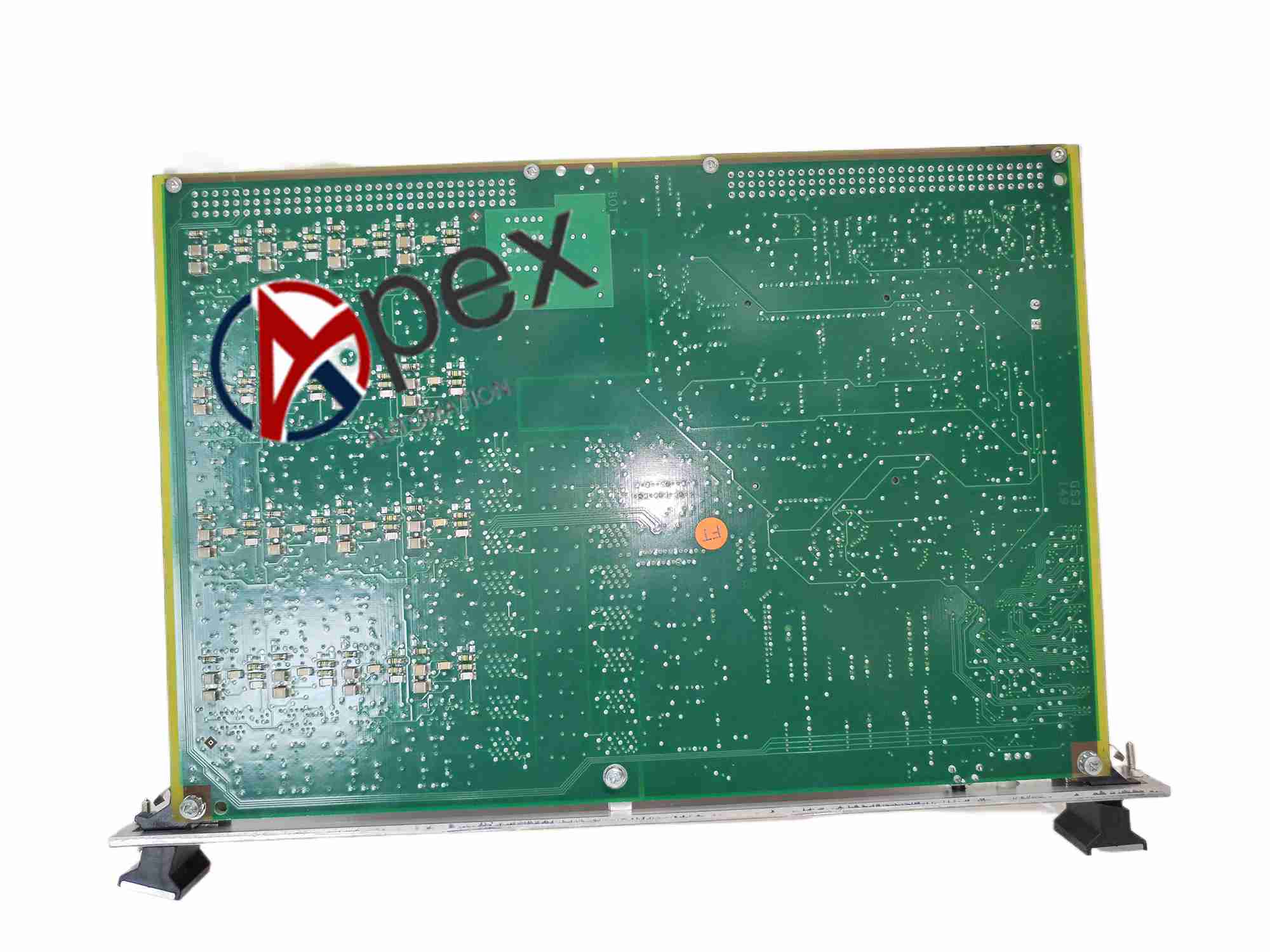

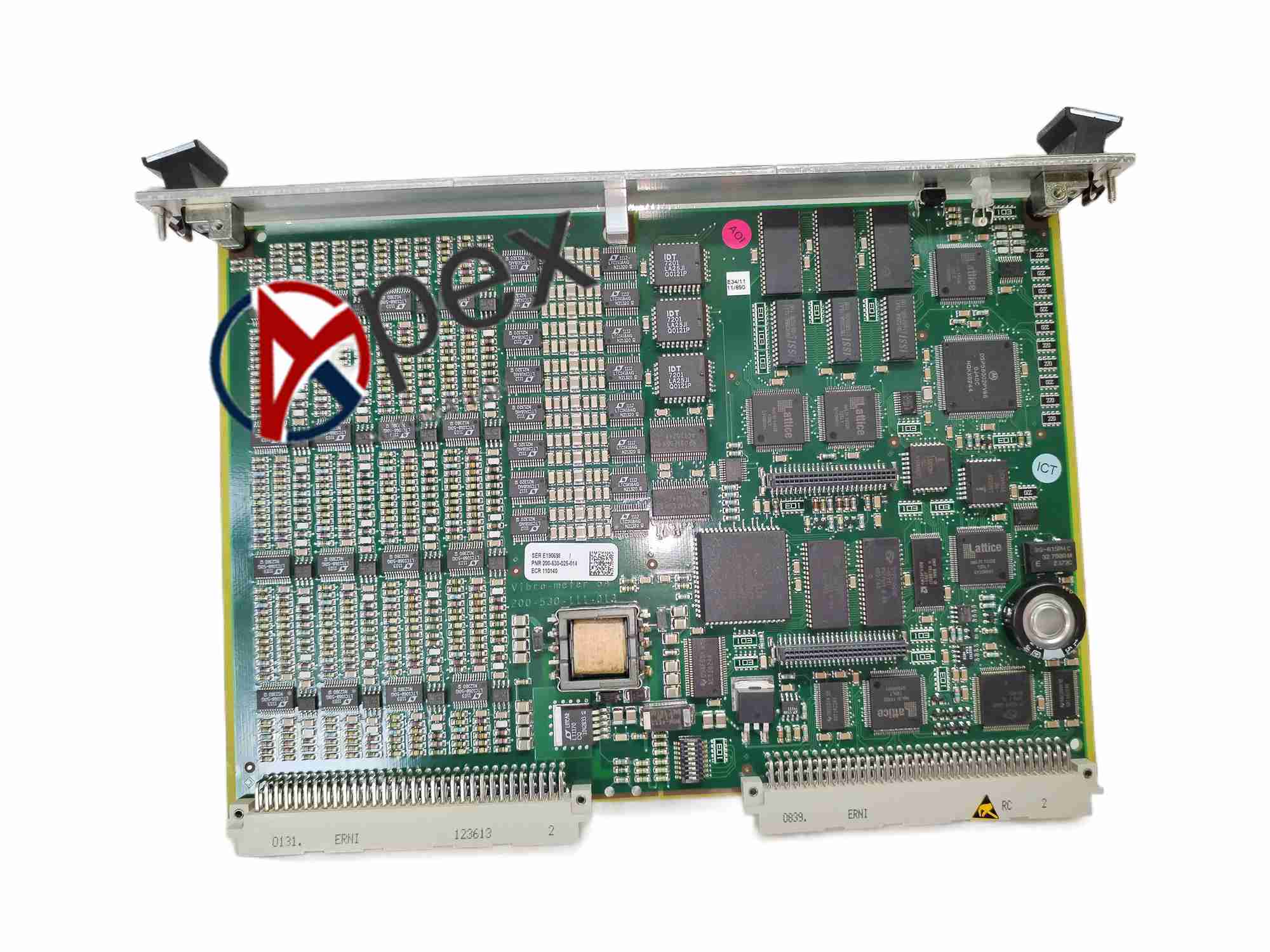

Structural Characteristics Rack plug-in card structure, front panel LED status indicators, rear gold finger for backplane connection.
Working Principle Receive raw measurement data from signal acquisition modules via backplane bus, process vibration parameters and transmit data to upper host through communication ports.
Installation Requirements Insert into VM600 ABE040 rack slot, lock the module, configure network parameters and complete system grounding.
Usage Notes Set correct IP address before operation. Use shielded network cable. Avoid strong electromagnetic interference.
