Technical Specifications 4 module slots, internal system bus, integrated power distribution interface, 19-inch rack mounting, metal housing.
Functional Features Supply power and bus interconnection for VM600 series modules, signal transmission between modules, mechanical support for each card.
Application Scenarios Steam turbine, compressor, fan, large rotating machinery condition monitoring and protection system.
Performance Parameters Stable bus signal transmission, good electromagnetic shielding, support long-term continuous operation.
Material Composition Steel metal chassis, fiberglass backplane PCB, copper bus traces, plastic module locking components.

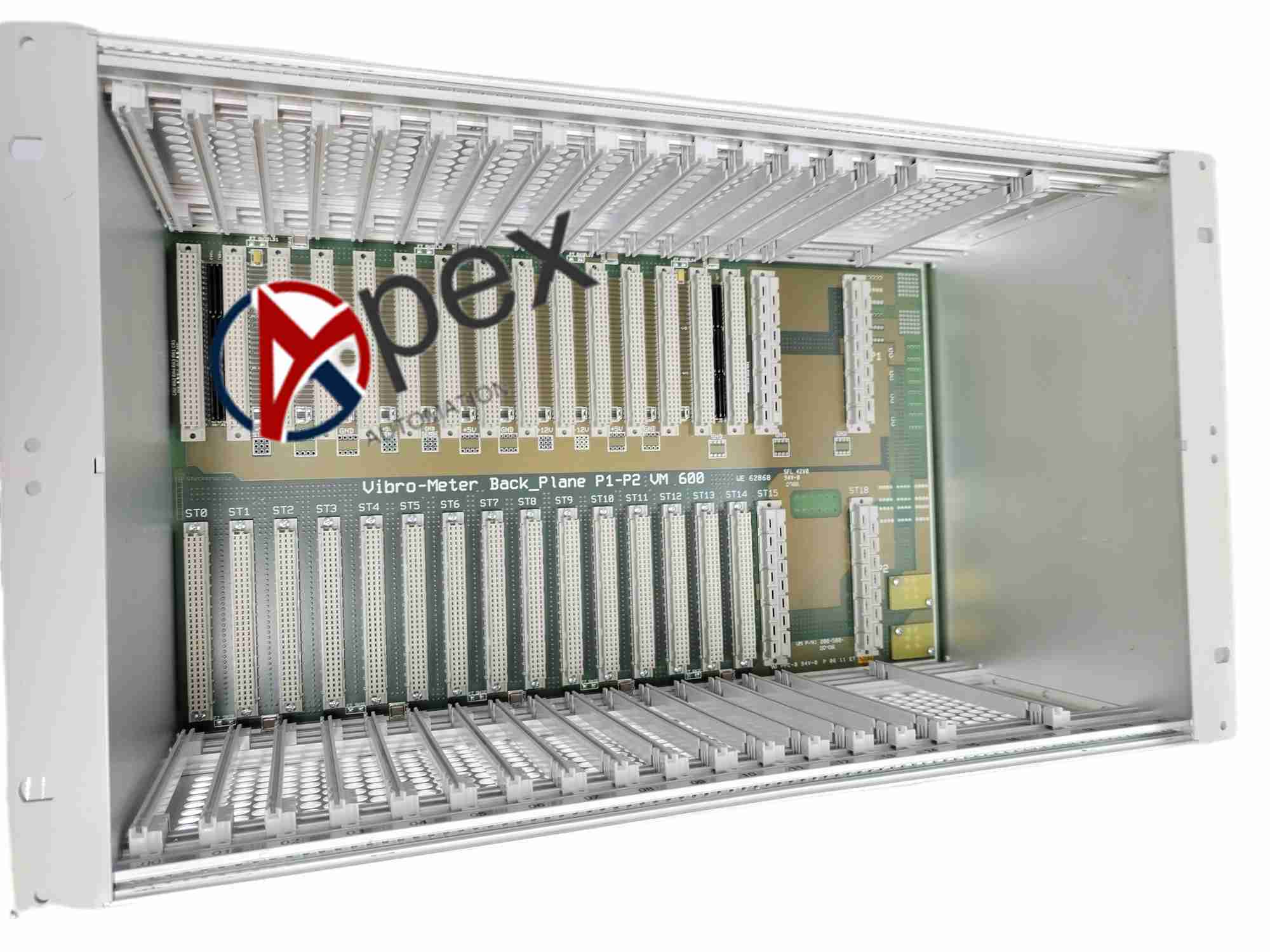

Structural Characteristics 19-inch rack mount metal cabinet, front module insertion slots, rear power and communication connectors.
Working Principle Distribute power to each module and transmit digital and analog signals via internal backplane bus to realize data exchange between different VM600 cards.
Installation Requirements Mount the chassis in standard 19-inch cabinet, connect main power cable, install each functional module into corresponding slot.
Usage Notes Keep ventilation space around chassis. Do not hot swap modules without following system operation manual. Prevent dust accumulation.
