Technical Specifications Backplane power supply. 4 analog input channels. 4-20mA / 0-10V selectable. Isolated input. Operating temperature:0°C ~ +60°C.
Functional Features Continuous analog signal sampling. Over-range alarm. Signal filtering. LED status indication.
Application Scenarios Process industry flow, pressure, temperature measurement, water treatment, chemical small process control.
Performance Parameters High measurement repeatability, built-in filter. Operating temperature:0~+60°C.

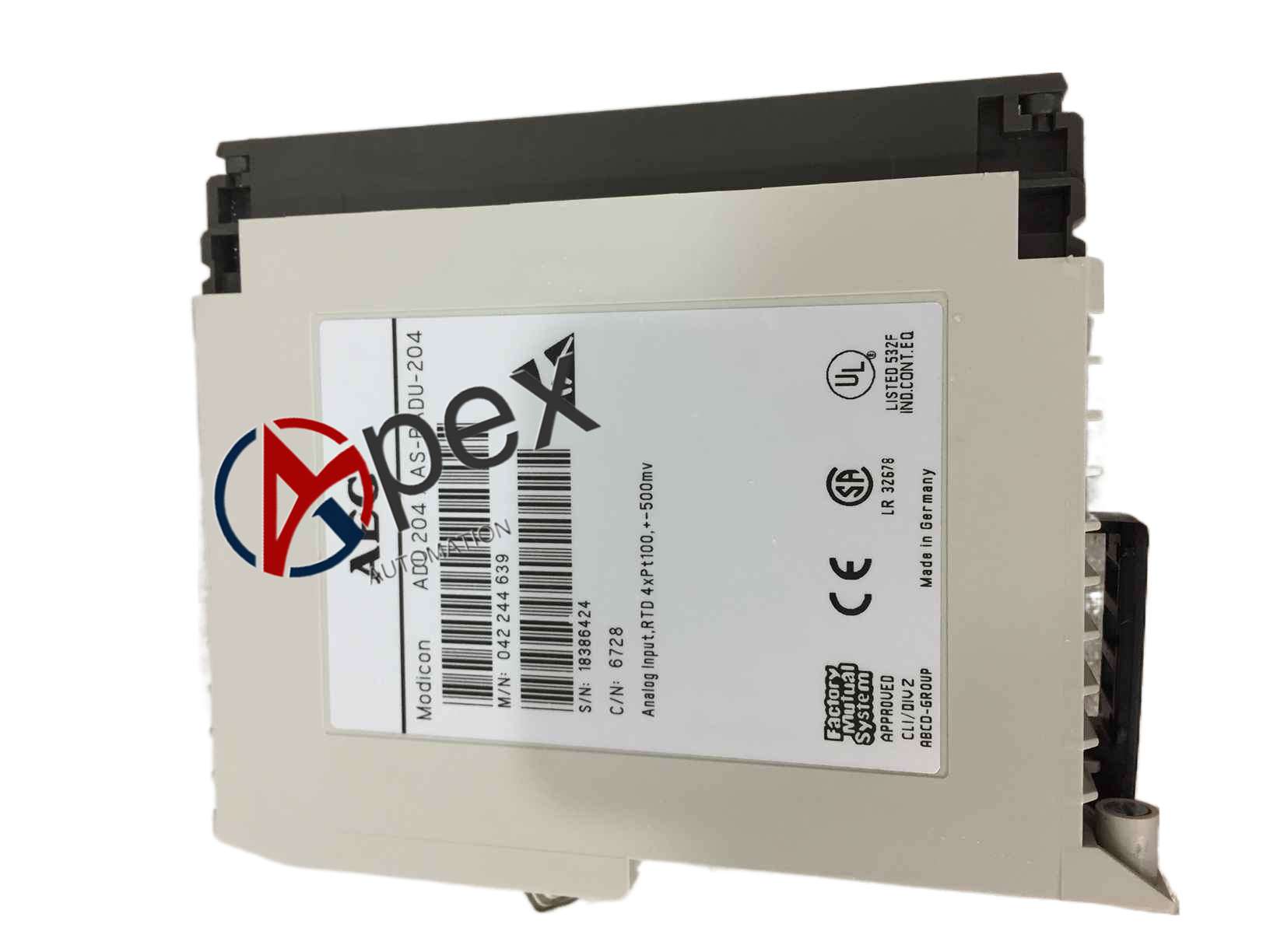

Structural Characteristics Rack plug-in module, front terminal block, backplane bus connector, analog-to-digital conversion circuit.
Working Principle Convert analog current/voltage signals from field sensors into digital values, transmit data to PLC CPU through backplane bus for process calculation.
Installation Requirements Install into Modicon rack. Use shielded twisted pair for field transmitter wiring. Set signal type in PLC configuration.
Usage Notes Prevent electrostatic damage during module replacement. Avoid signal cable running parallel with high power cable.
