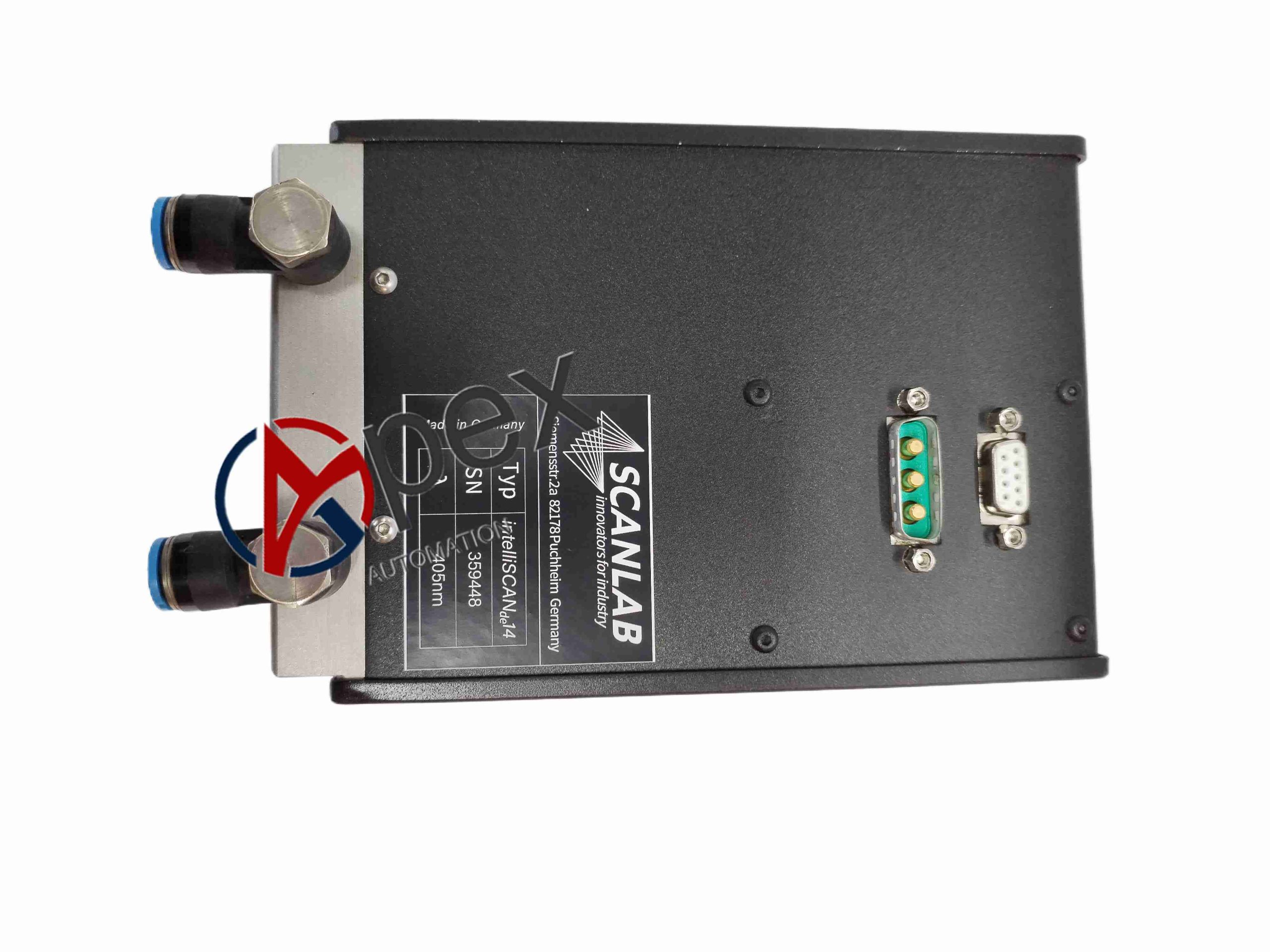

Technical Specifications Working wavelength: 405nm; Model IntelliSCAN DE14; High speed galvanometer; Digital position feedback; Integrated servo driver.
Functional Features High speed laser beam deflection; High repeat positioning accuracy; Digital closed-loop control; Low thermal drift; Compatible with laser marking and microprocessing software.
Application Scenarios Laser marking, microstructuring, PCB laser processing, additive manufacturing and 405nm UV laser micro machining.
Performance Parameters High scanning speed; Ultra-low positioning drift; High linearity for large scan field.

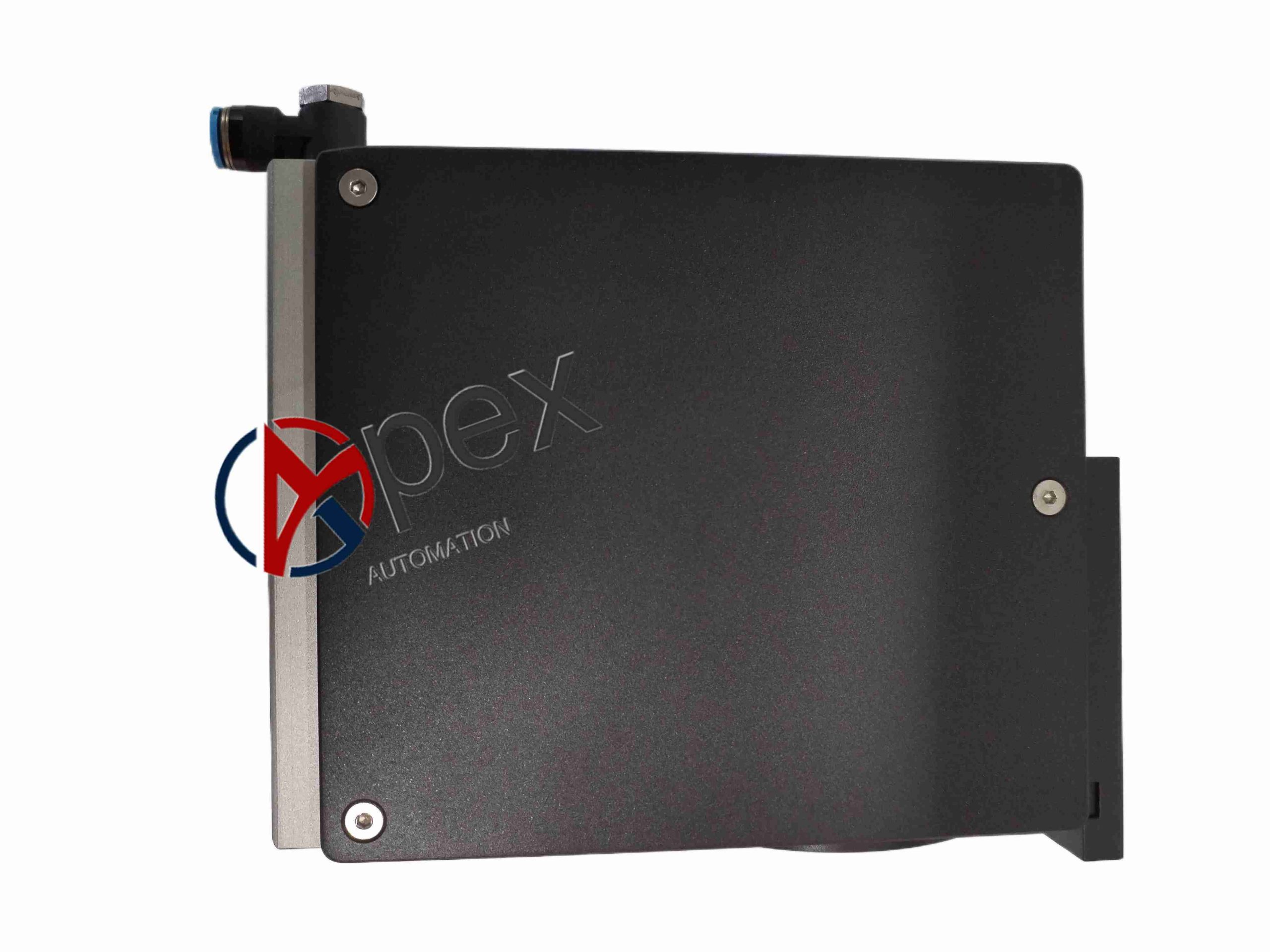

Structural Characteristics Compact cast metal housing, galvanometer motors, optical mirrors, signal interface connectors and control electronics integrated inside.
Working Principle Two orthogonal galvanometer motors tilt the optical mirrors under digital command, deflect the 405nm laser beam to reach target coordinates on the working plane, closed-loop position feedback corrects mirror position in real time.
Installation Requirements Mount on rigid optical base; Keep optical path clean; Avoid vibration and temperature fluctuation; Match with laser source and scan lens.
Usage Notes Protect optical mirrors from dust and contamination. Do not exceed maximum laser power rating. Warm up the scan head before precision processing.
