Technical Specifications Multi-axis control channels, multiple feedback interfaces, industrial fieldbus, 24V DC power supply, cabinet panel mounting.
Functional Features Multi-axis synchronous closed-loop control, electronic cam function, motion profile programming, fault diagnosis and alarm.
Application Scenarios Multi-cylinder hydraulic press, large forming equipment, synchronized hydraulic production line.
Performance Parameters High synchronous precision between axes, fast response, stable heavy-load operation.
Material Composition Metal housing, multi-channel control circuit board, power drive components, plastic terminal protective cover.

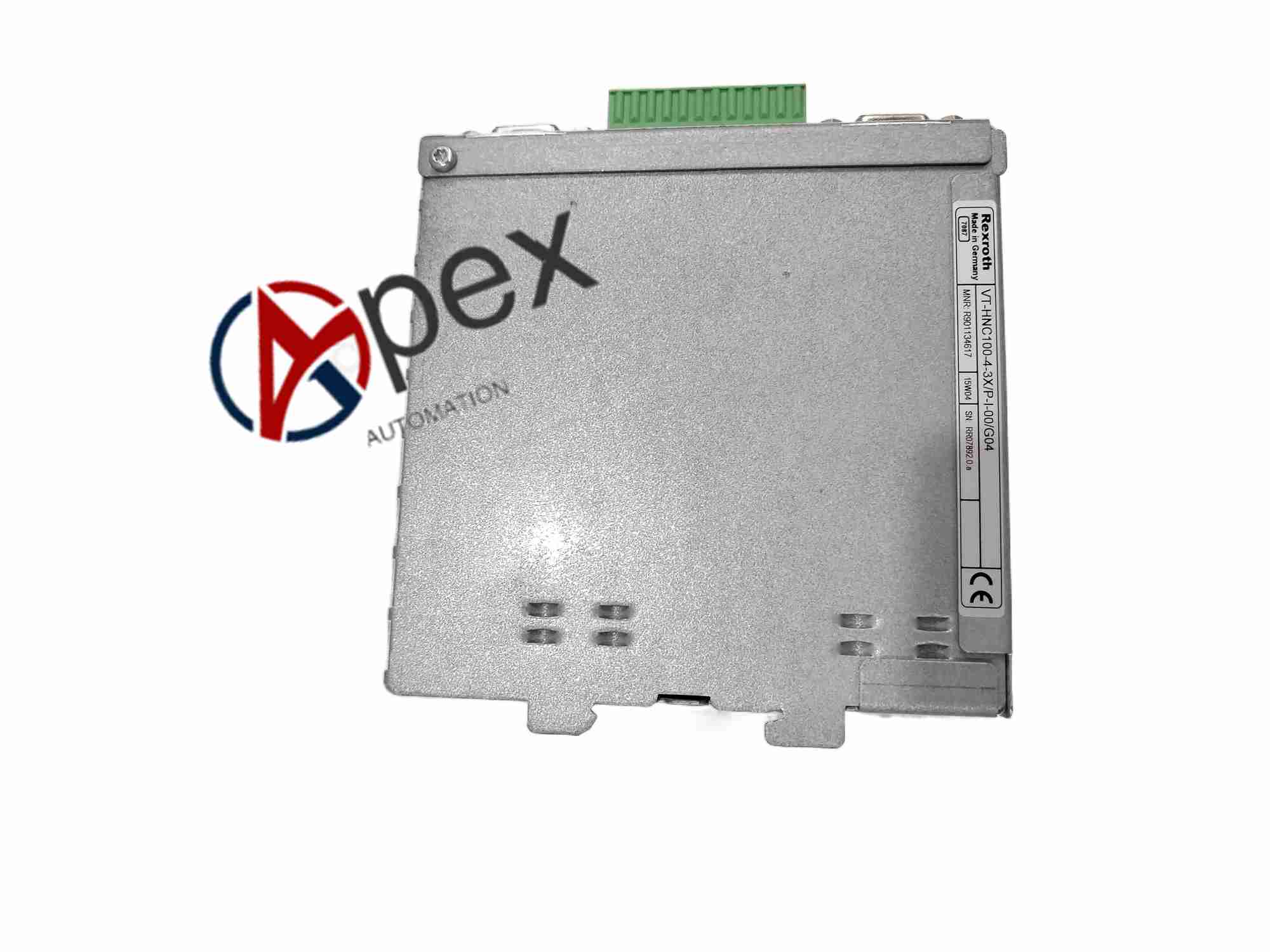

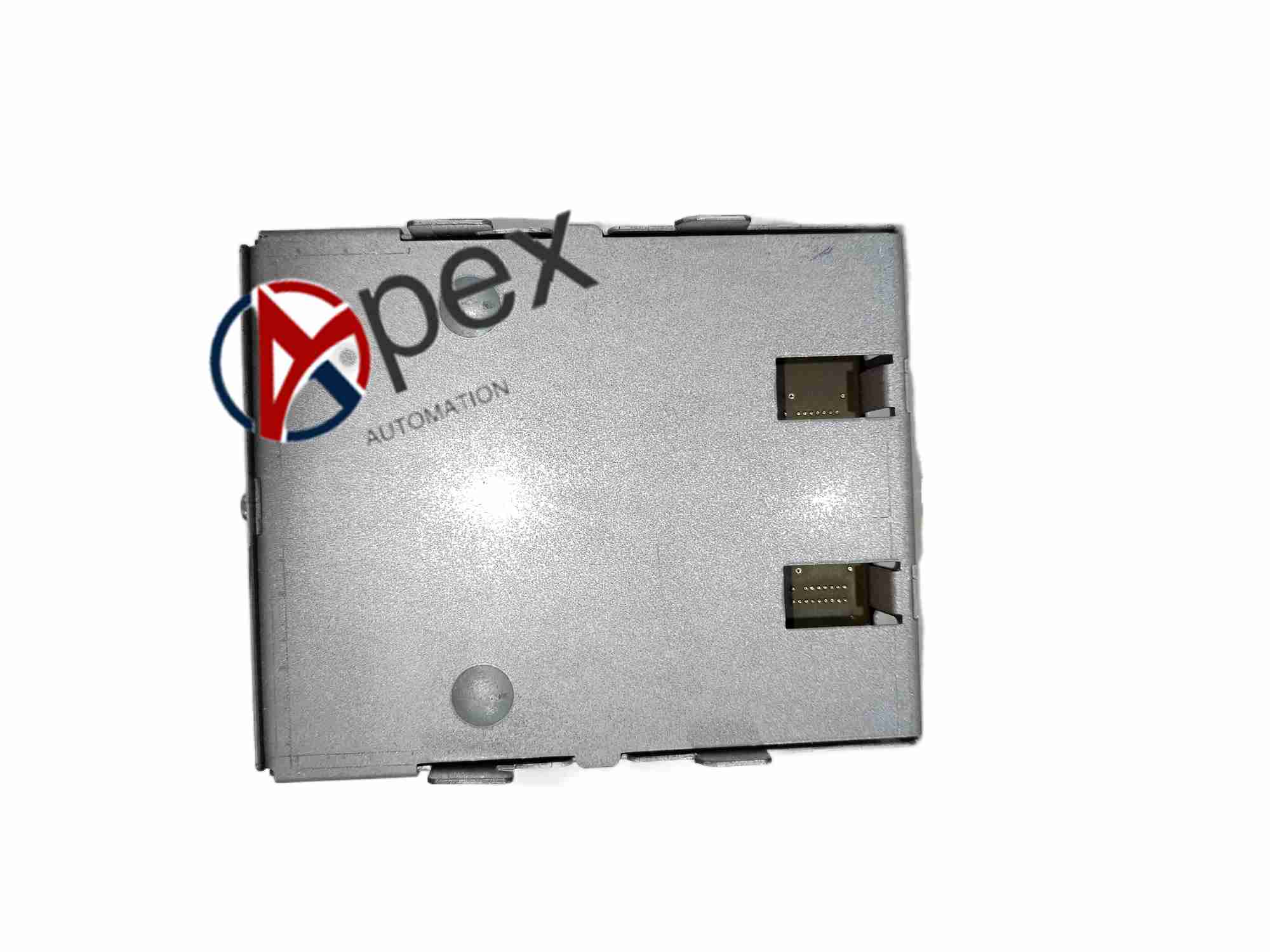

Structural Characteristics Panel-mounted metal casing, front operation panel, separated power and signal terminals.
Working Principle Receive multi-axis motion instructions, synchronously calculate each axis command and feedback, drive each proportional valve to realize multi-axis coordinated hydraulic motion.
Installation Requirements Install in control cabinet with heat dissipation, separate power cable and signal cable, reliable grounding.
Usage Notes Set synchronization parameters carefully. Check each axis feedback signal before commissioning.
