Technical Specifications 24V DC power, analog feedback input, proportional valve drive, fieldbus interface, panel mounting.
Functional Features Position, pressure and force closed-loop control, automatic axis identification, fault diagnosis, configurable alarm output.
Application Scenarios Metal forming hydraulic equipment, hydraulic press, high-precision hydraulic test stand.
Performance Parameters Fast dynamic response, high control accuracy, support complex motion profile.
Material Composition Metal casing, fiberglass PCB, power drive chips, insulated terminal blocks.

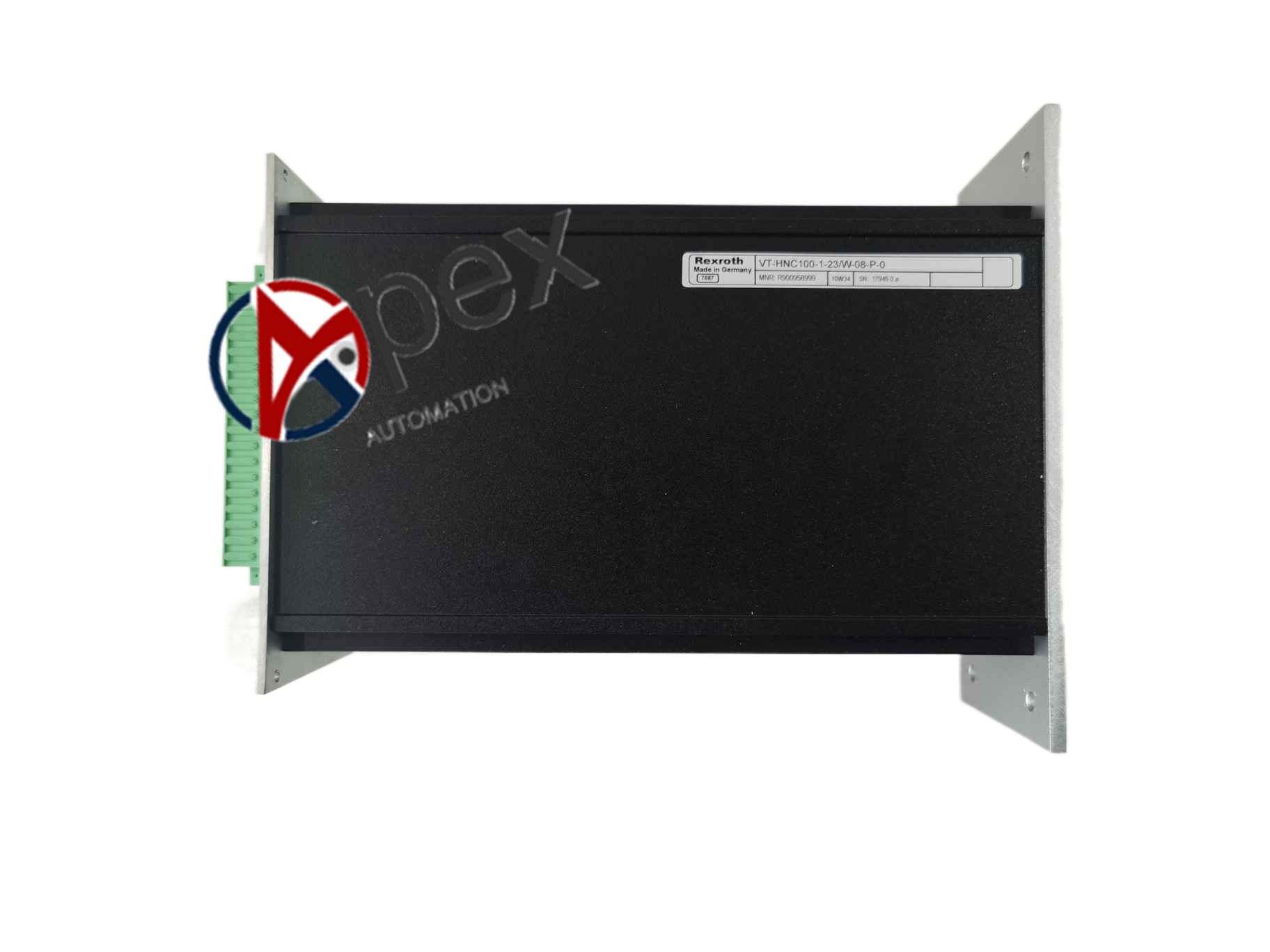

Structural Characteristics Panel mount metal housing, front status LED, rear power and signal wiring terminals.
Working Principle Receive command from upper control system, compare setpoint and actual feedback value, output control signal to proportional hydraulic valve to realize closed-loop hydraulic axis control.
Installation Requirements Install inside control cabinet, ensure good ventilation, use shielded cable for sensor signal.
Usage Notes Backup parameters after commissioning. Check valve and sensor wiring before power on.
