Technical Specifications 24V DC power supply, analog sensor feedback interface, fieldbus communication, parameter setting via software, panel mounting structure.
Functional Features Hydraulic position, pressure and force closed-loop control, axis auto-tuning, ramp function, fault diagnosis and alarm output.
Application Scenarios Hydraulic press, metal forming machine, injection molding machine, heavy-duty hydraulic test bench.
Performance Parameters High control precision, fast response speed, strong anti-disturbance capability, stable continuous operation under heavy load.
Material Composition Metal housing, fiberglass control PCB, power semiconductor components, plastic insulated terminal cover.

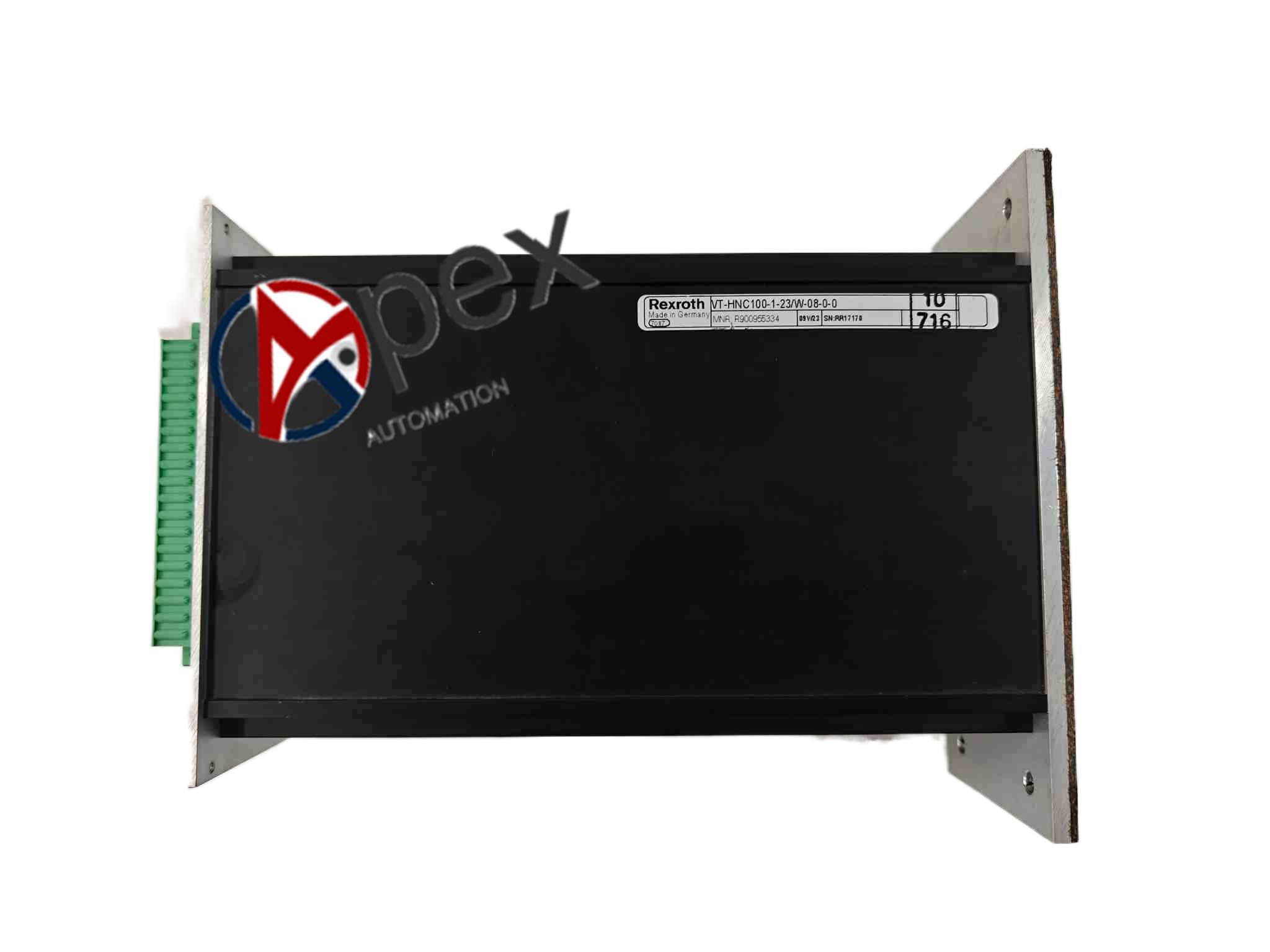

Structural Characteristics Panel-mounted metal casing, front operation display interface, separated power and signal terminal blocks.
Working Principle Receive motion command from upper controller, compare command value with actual hydraulic axis feedback signal, output drive signal to proportional valve to adjust hydraulic flow and pressure for closed-loop axis control.
Installation Requirements Install inside control cabinet with sufficient heat dissipation space, separate power cable and signal cable, implement reliable protective grounding.
Usage Notes Complete parameter commissioning before formal operation. Check sensor and proportional valve wiring regularly.
