Technical Specifications Multi-axis hydraulic control, analog and digital feedback interface, fieldbus communication, 24V DC power supply.
Functional Features Hydraulic position, pressure and force closed-loop control, axis parameter auto-tuning, fault monitoring and alarm.
Application Scenarios Hydraulic press, metal forming machine, injection molding machine, heavy duty hydraulic equipment.
Performance Parameters High control precision, fast response, strong anti-load disturbance, stable continuous operation.
Material Composition Metal housing, fiberglass control circuit board, power semiconductor components, plastic terminal insulation cover.

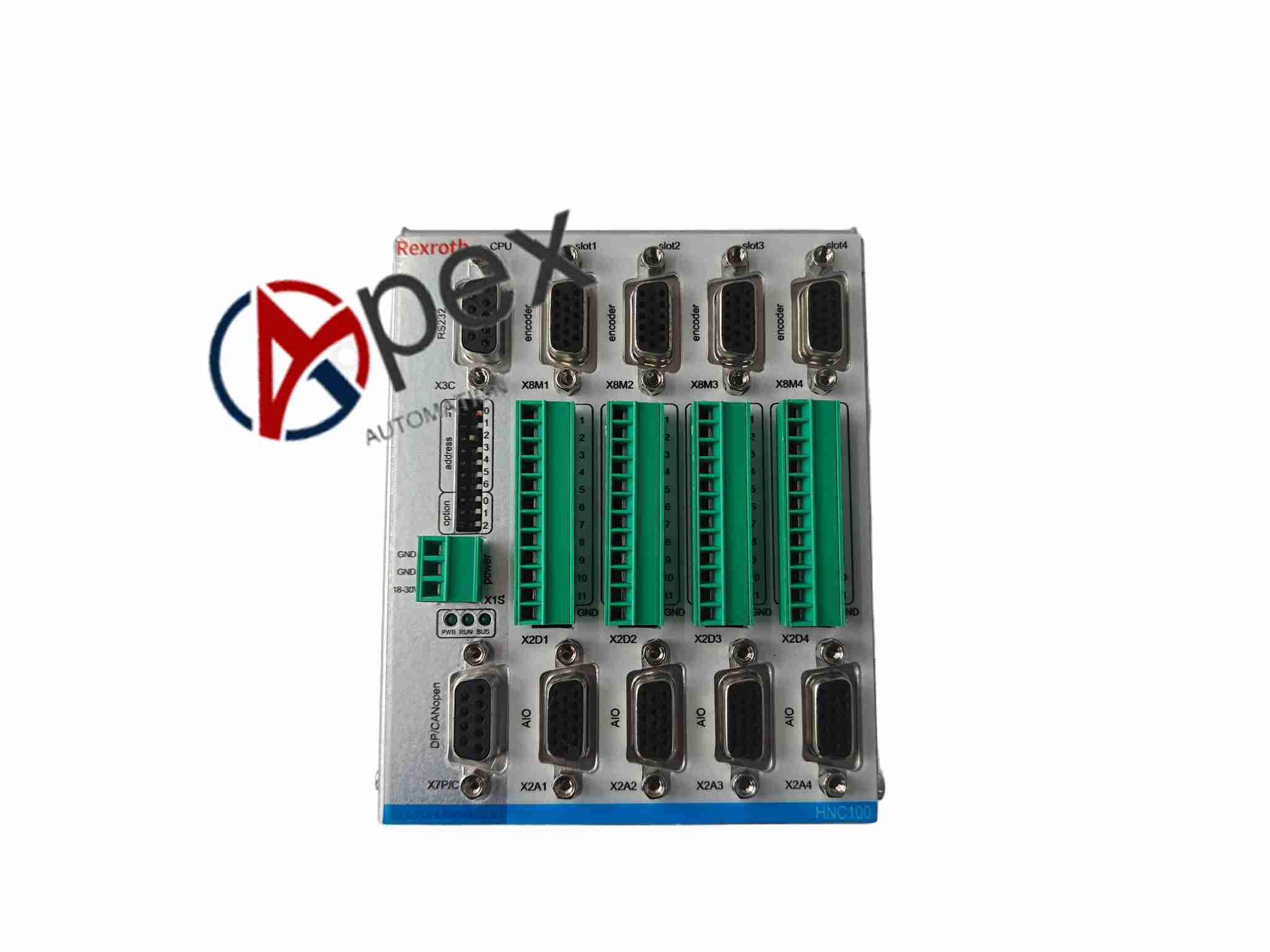

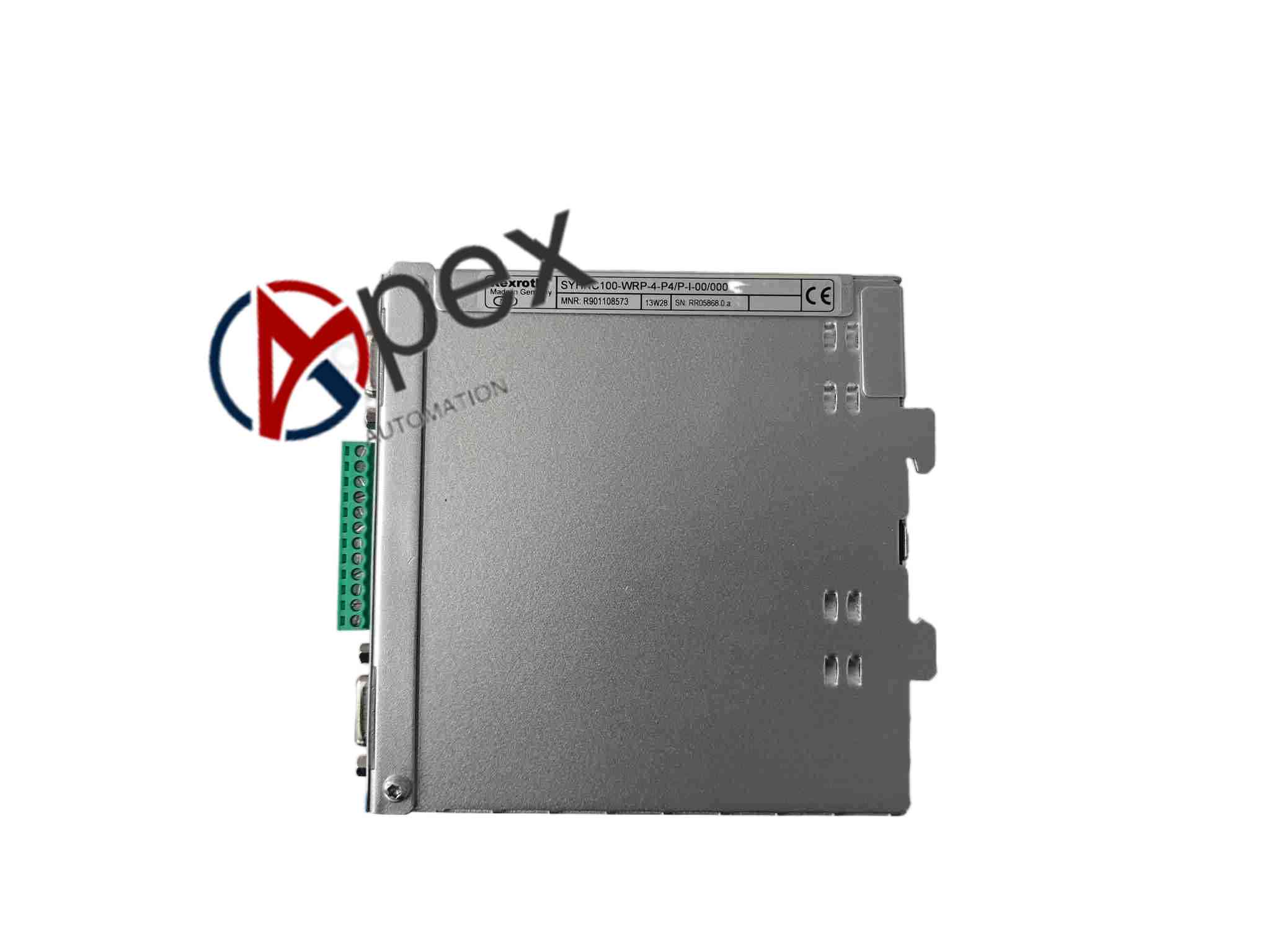

Structural Characteristics Panel mounting metal casing, front operation interface, separate power and signal terminal blocks.
Working Principle Receive motion command from upper controller, compare with hydraulic axis feedback signal, output control signal to hydraulic proportional valve to realize closed-loop hydraulic axis control.
Installation Requirements Mount inside control cabinet, reserve heat dissipation space, separate power and signal wiring, reliable grounding.
Usage Notes Complete hydraulic loop commissioning before formal operation. Regularly check sensor signal cable connection.
