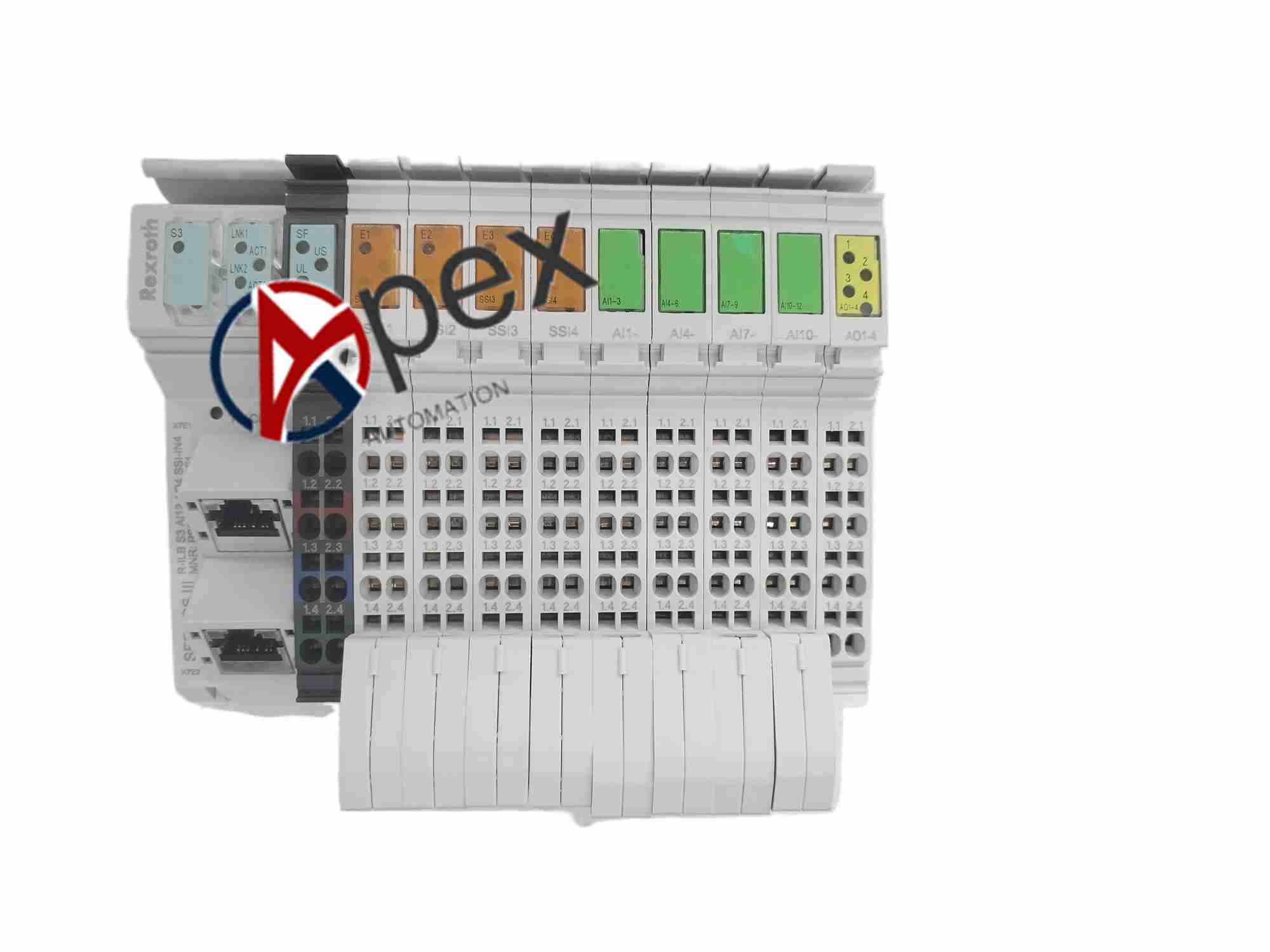

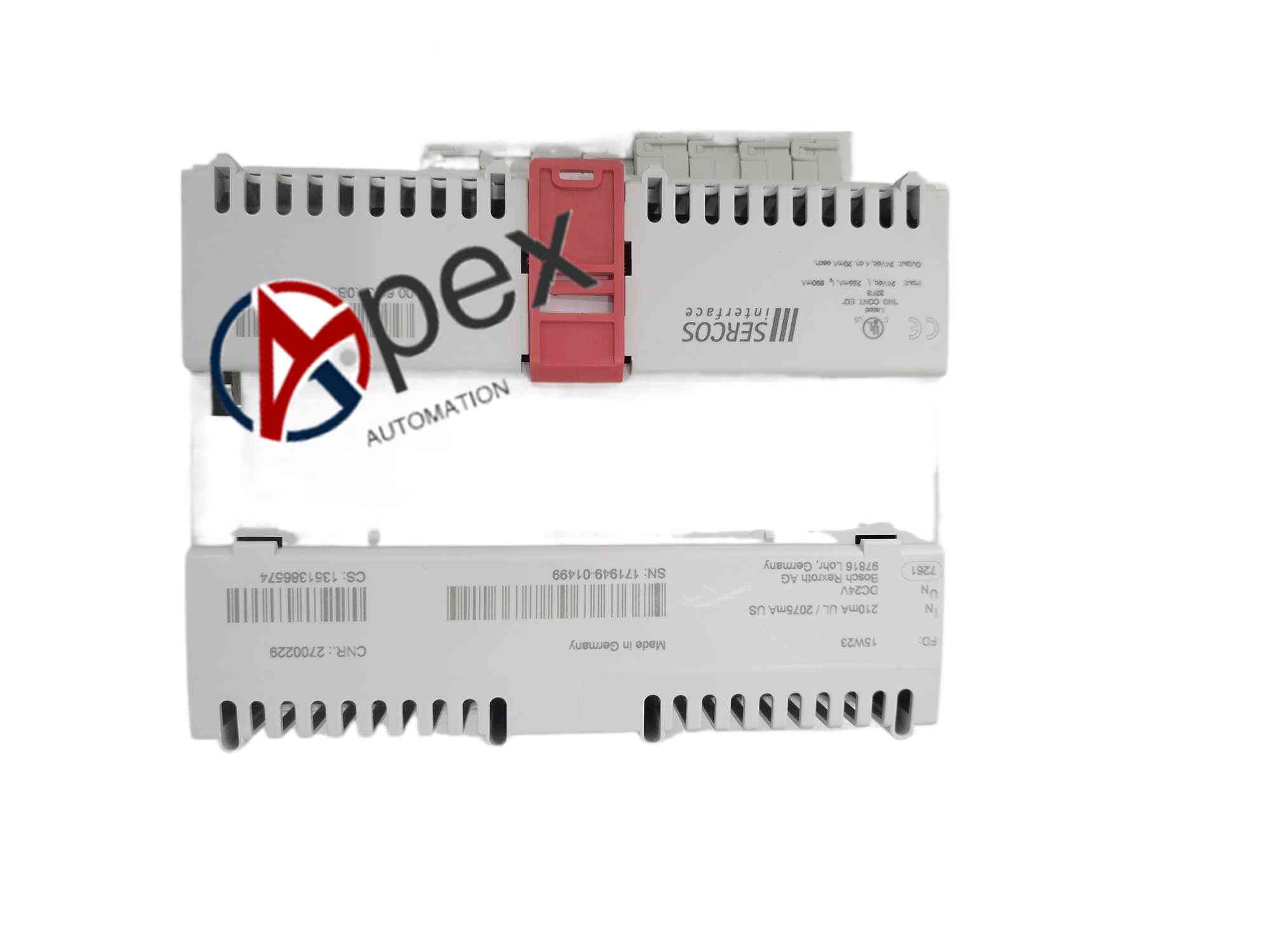

Technical Specifications 12 analog input channels, 4 analog output channels, 4 SSI encoder input channels, fieldbus communication support, 24V DC power supply.
Functional Features Collect 4-20mA and 0-10V analog sensor signals, output analog control signals, read SSI encoder position data, realize distributed field signal acquisition.
Application Scenarios Packaging machinery, metal cutting equipment, automated assembly lines, high precision motion control systems.
Performance Parameters Compatible with standard industrial analog signal range, high-speed SSI serial reading, built-in short circuit and overvoltage protection.
Material Composition Flame retardant plastic housing, copper alloy terminal blocks, fiberglass circuit board, metal DIN rail clamping spring.
Structural Characteristics DIN rail mounting design, compact plastic housing, detachable terminal blocks for convenient field wiring.
Working Principle Converts analog physical signals into digital data and transmits to main controller. It converts digital control commands from controller into analog output signals and decodes SSI serial position information.
Installation Requirements Mount on standard DIN rail inside control cabinet. Use shielded cables for analog and encoder wiring. Separate power cables and signal cables.
Usage Notes Implement reliable protective grounding. Keep analog signal cables away from high-power cables to reduce electromagnetic interference.
