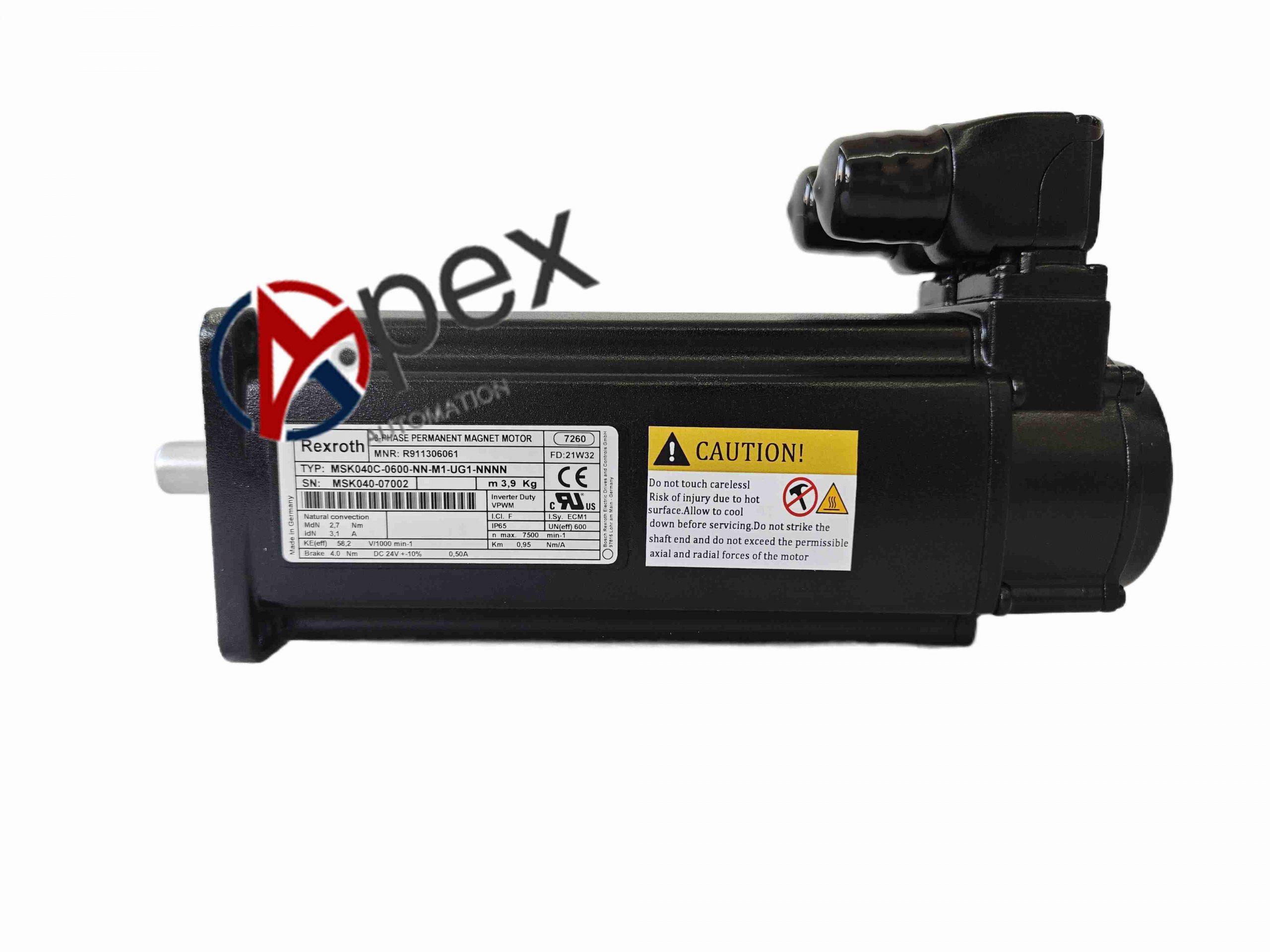

Technical Specifications Permanent magnet synchronous structure, built-in position encoder, matched with Rexroth servo drive, 3-phase AC input.
Functional Features High torque density, low inertia, fast dynamic response, high precision positioning support.
Application Scenarios CNC machine tool, automation assembly equipment, material handling system.
Performance Parameters Wide speed regulation range, strong overload resistance, low vibration during continuous operation.
Material Composition Cast aluminum heat dissipation housing, silicon steel stator, rare earth permanent magnet rotor, alloy output shaft, metal encoder connector.

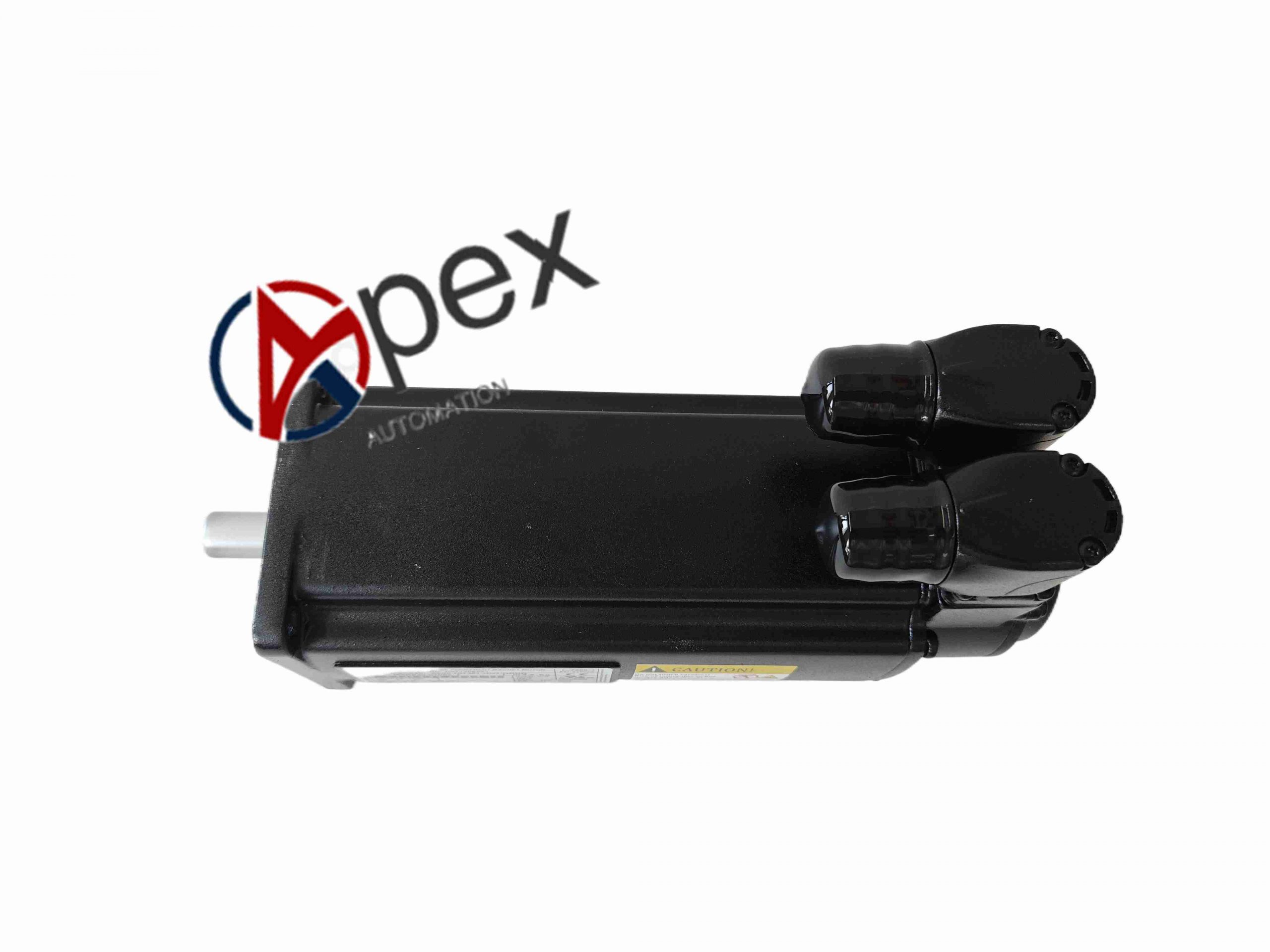

Structural Characteristics Cast aluminum housing with heat dissipation fins, standard flange installation, power and encoder connectors on side face.
Working Principle Stator winding produces rotating magnetic field to drive permanent magnet rotor. Encoder feeds back position signal to servo drive to form closed-loop motion control.
Installation Requirements Flange installation, guarantee coupling coaxiality, use shielded encoder cable and reliable grounding.
Usage Notes Prevent water and dust entering motor interior. Inspect bearing status regularly during long time operation.
