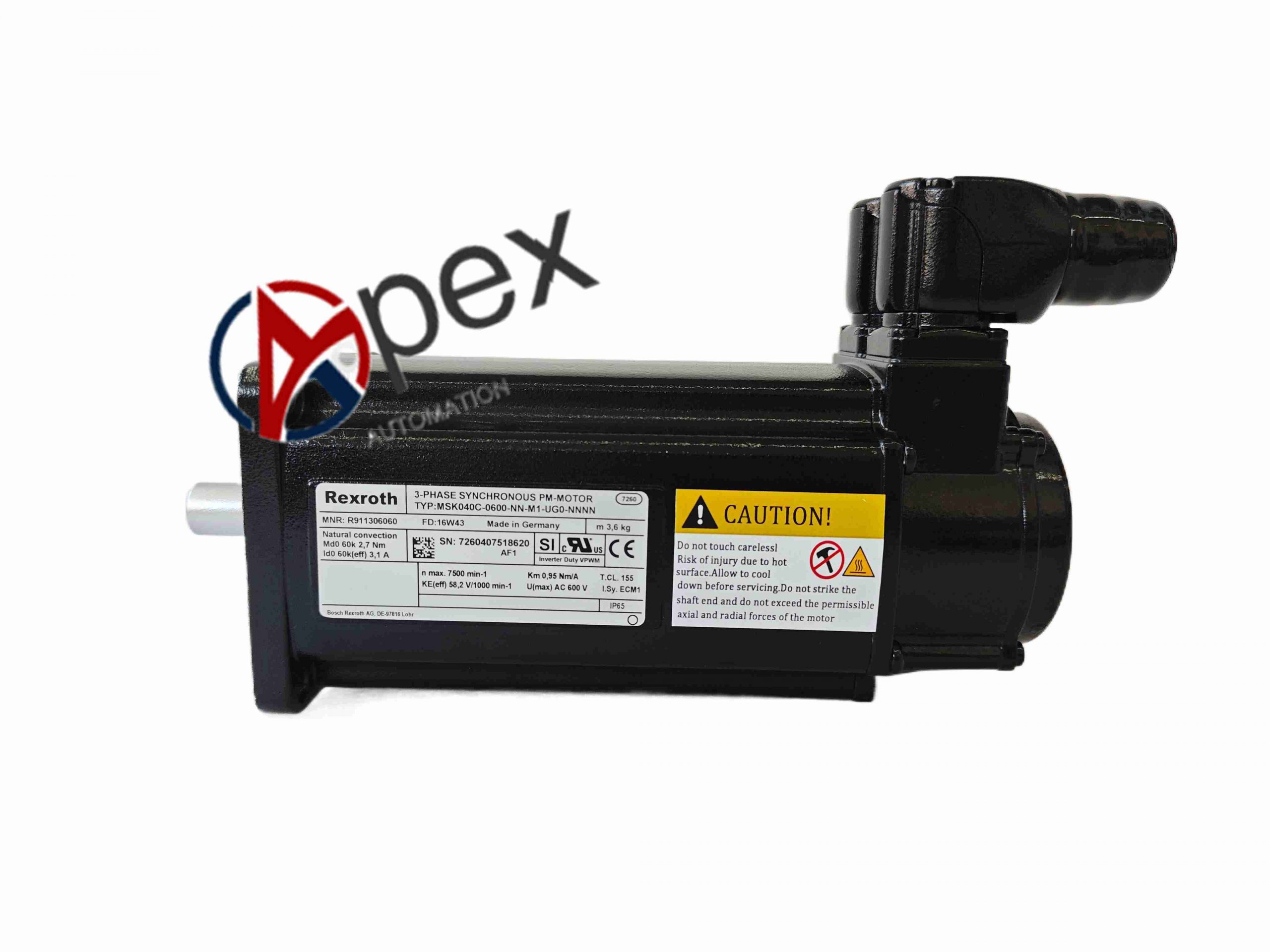

Technical Specifications Permanent magnet synchronous motor; Integrated encoder; IP65 protection; Flange mounting; Operating temperature -20~40°C.
Functional Features High torque density, low rotor inertia, reliable position feedback, good continuous operation capability.
Application Scenarios Packaging machine, material handling, automated conveyor, machine tool auxiliary axis.
Performance Parameters High acceleration capability, stable speed control, low vibration.

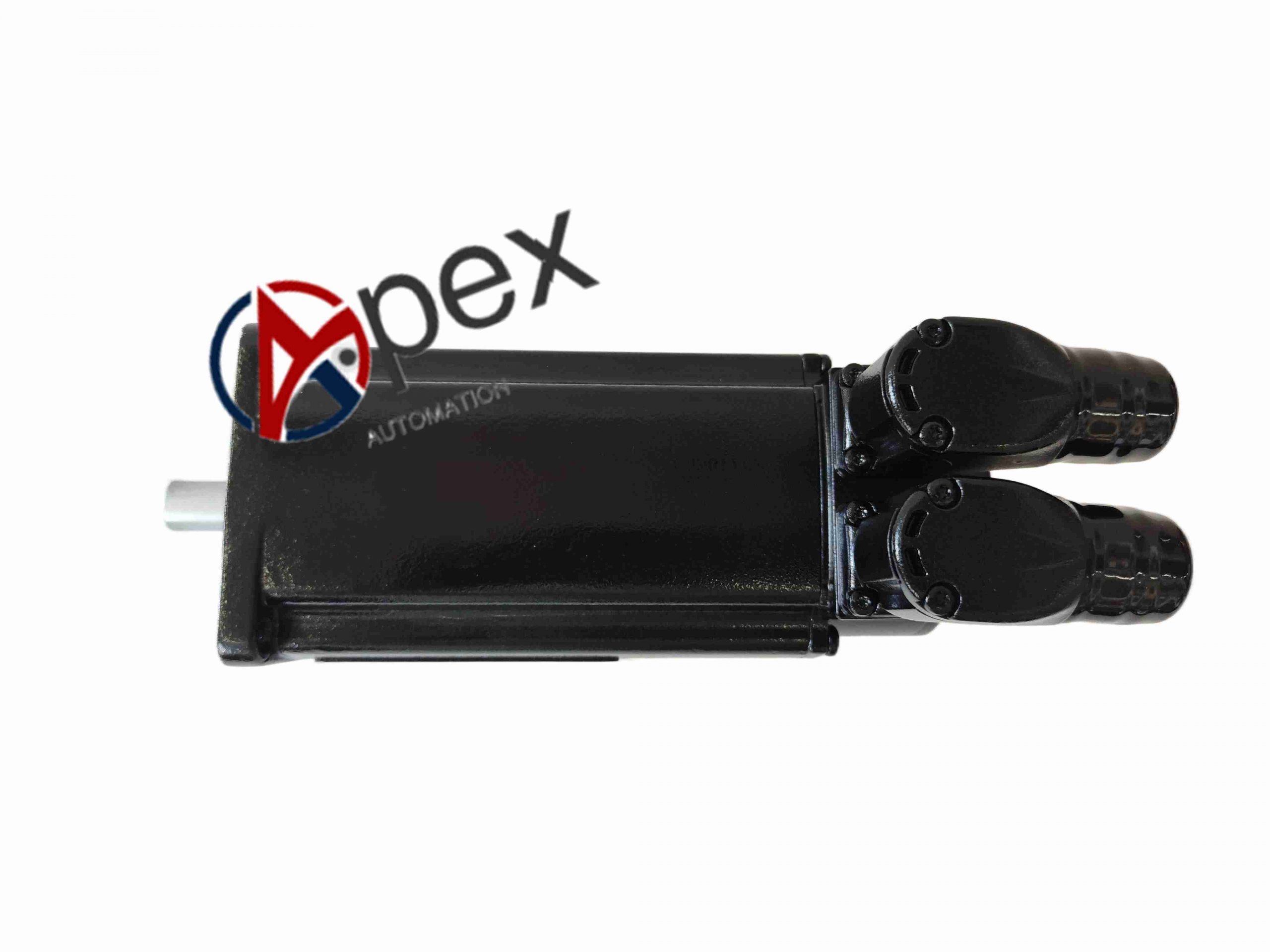

Structural Characteristics Flange mounted compact structure, rear encoder unit, sealed shaft, separate power and feedback connectors.
Working Principle Servo drive supplies three-phase AC to stator windings to produce rotating magnetic field, driving permanent magnet rotor. Encoder feeds back position and speed signal to servo drive for closed-loop motion control.
Installation Requirements Fix motor flange on rigid support. Use flexible coupling to reduce alignment stress. Use shielded cables.
Usage Notes Avoid excessive radial and axial load on shaft. Keep motor clean for heat dissipation. Check cable connections regularly.
