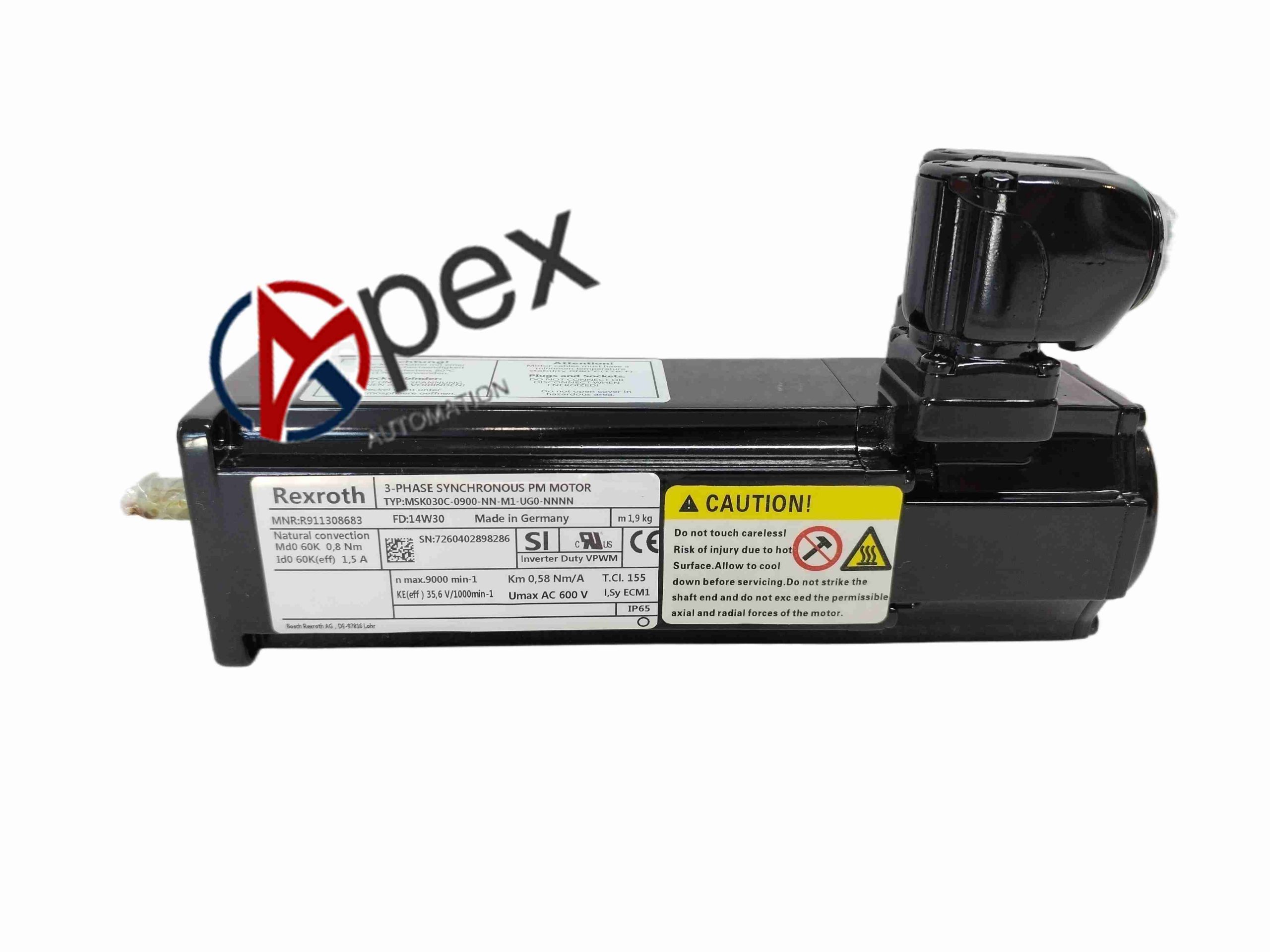

Technical Specifications Permanent magnet synchronous motor, high resolution encoder; IP65 protection; Flange mounting; Operating temperature -20~40°C.
Functional Features High resolution position feedback, high dynamic response, low torque ripple, compact structure.
Application Scenarios High precision automation equipment, electronic assembly, laser processing, precision positioning platform.
Performance Parameters High positioning accuracy, excellent low speed stability, high peak torque.

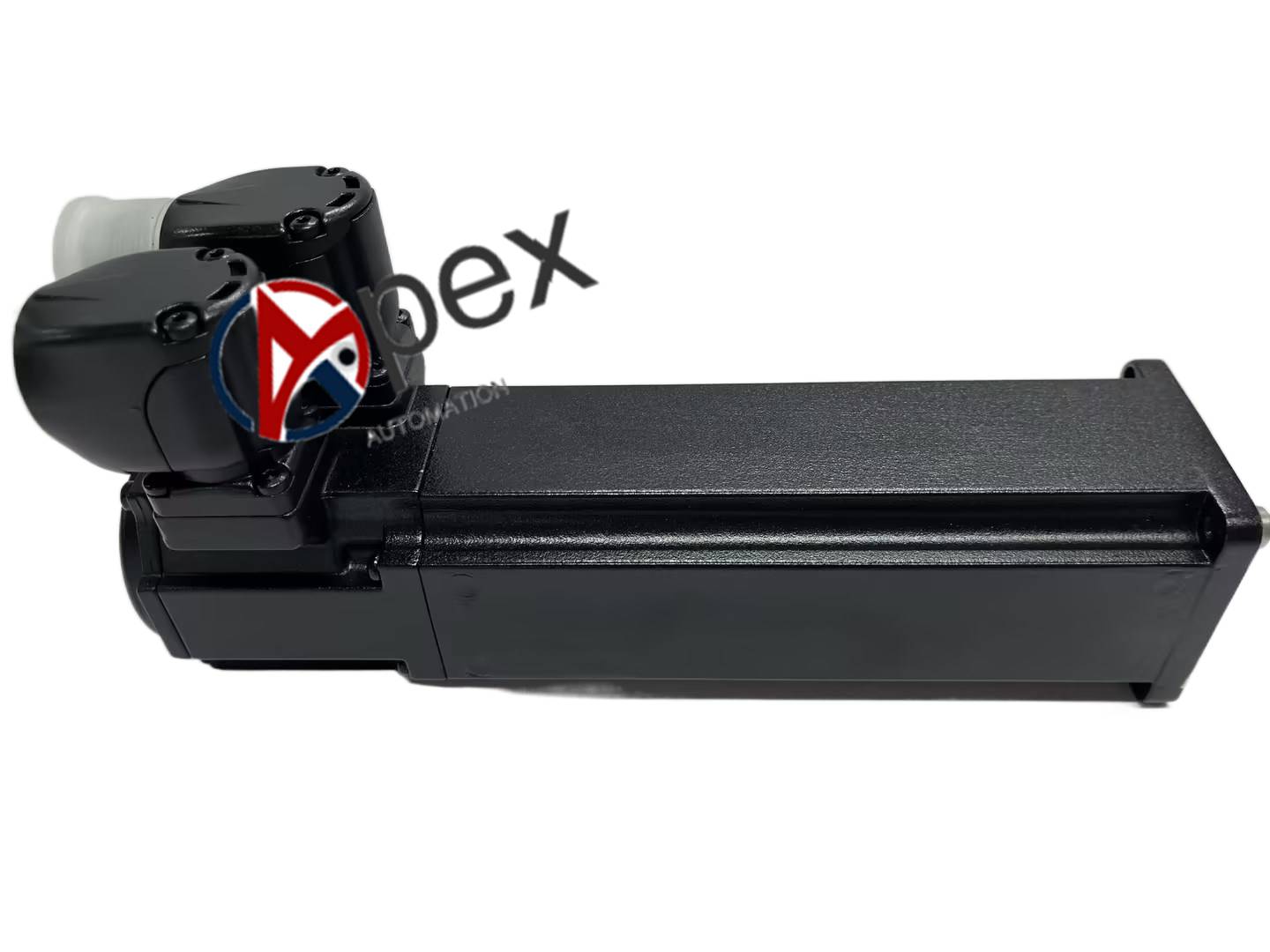

Structural Characteristics Flange mounted compact body, rear high-resolution encoder, sealed shaft, power and feedback connectors.
Working Principle Servo drive outputs three-phase AC to stator winding to drive permanent magnet rotor. High-resolution encoder sends position and speed feedback signal to servo drive to realize closed-loop control.
Installation Requirements Install on rigid mechanical base. Use flexible coupling. Separate shielded power and encoder cables.
Usage Notes Protect encoder from impact during installation. Avoid overload operation. Ensure good heat dissipation.
