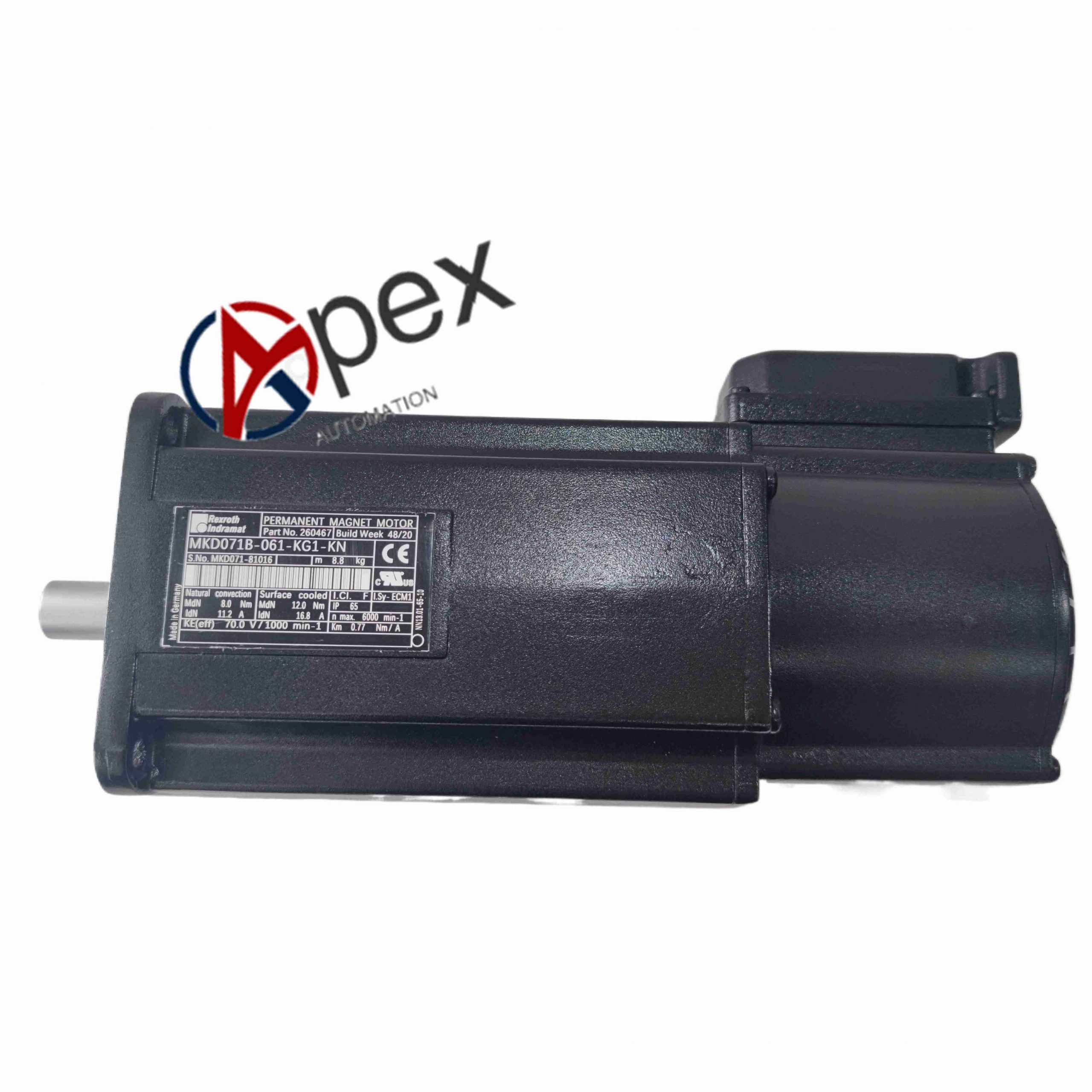

Technical Specifications Permanent magnet synchronous design; Integrated encoder feedback; IP65 protection; Flange mounting; Operating ambient temperature -20~40°C.
Functional Features High torque density, low inertia rotor. High precision position feedback. Suitable for frequent start-stop motion control.
Application Scenarios CNC machine, printing machine, packaging equipment, automated transfer system.
Performance Parameters High acceleration capability, stable speed control, low torque ripple.

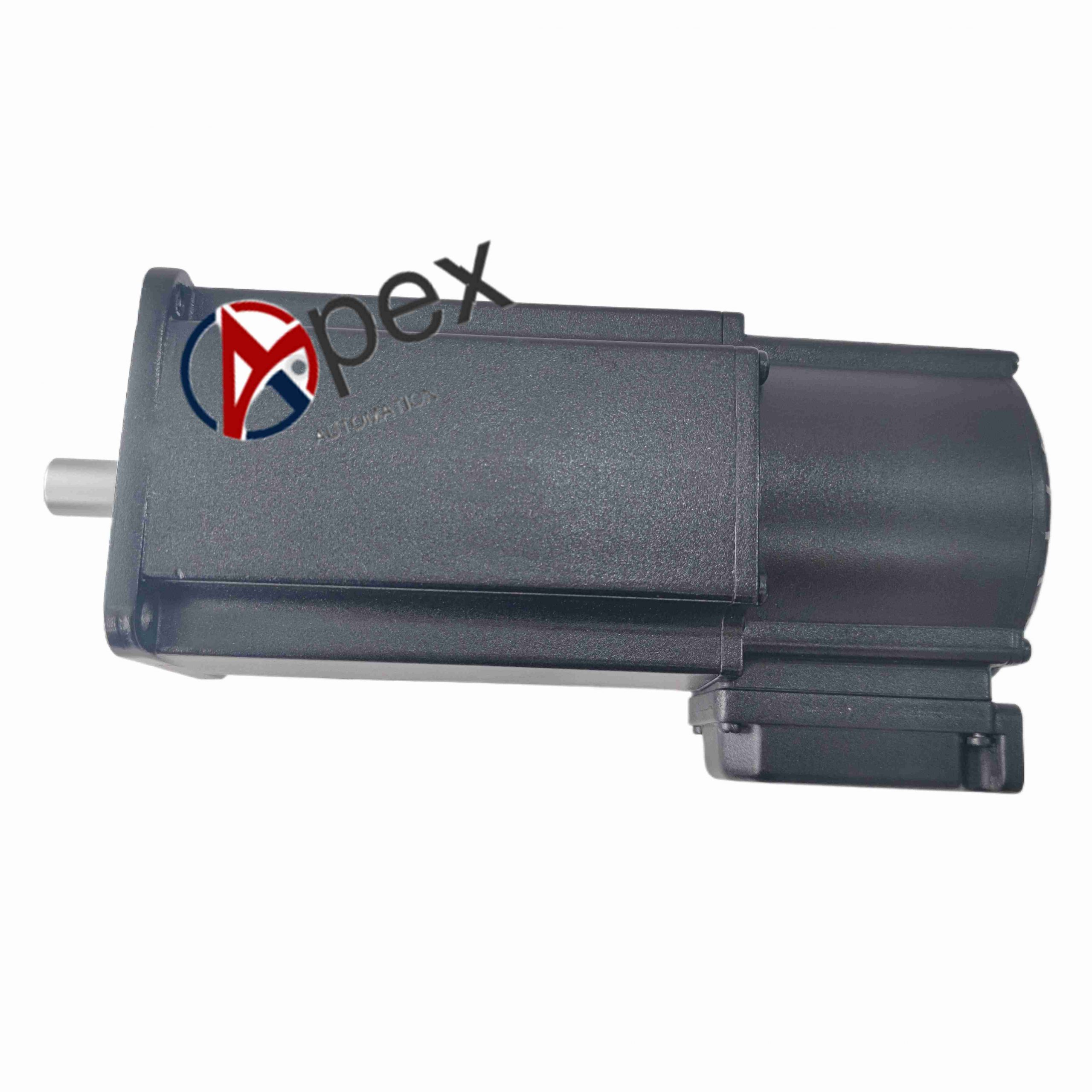

Structural Characteristics Flange mount compact structure, rear mounted encoder unit, sealed shaft, power and feedback terminal box.
Working Principle Three-phase current from servo drive creates rotating magnetic field. Permanent magnet rotor rotates following magnetic field. Encoder continuously feeds back position and speed signal to realize closed-loop servo control.
Installation Requirements Fix motor flange firmly. Use flexible coupling to avoid misalignment. Install shielded power and encoder cables.
Usage Notes Prevent overload operation. Keep motor away from dust and moisture. Check encoder cable connection regularly.
