Technical Specifications EtherNet/IP adapter; Siemens S7 ISO-on-TCP; 10/100Mbps Ethernet; DIN rail mounting; Operating temperature -40~70°C.
Functional Features Bidirectional data exchange between EtherNet/IP and S7 protocol. Configurable data tag mapping. Connection health monitoring and fault alarms.
Application Scenarios Mixed vendor automation systems, Rockwell PLC communicating with S7-1200/S7-300/S7-400/S7-1500 controllers.
Performance Parameters High speed Ethernet data transfer; Support multiple S7 connections; Real-time tag mapping.

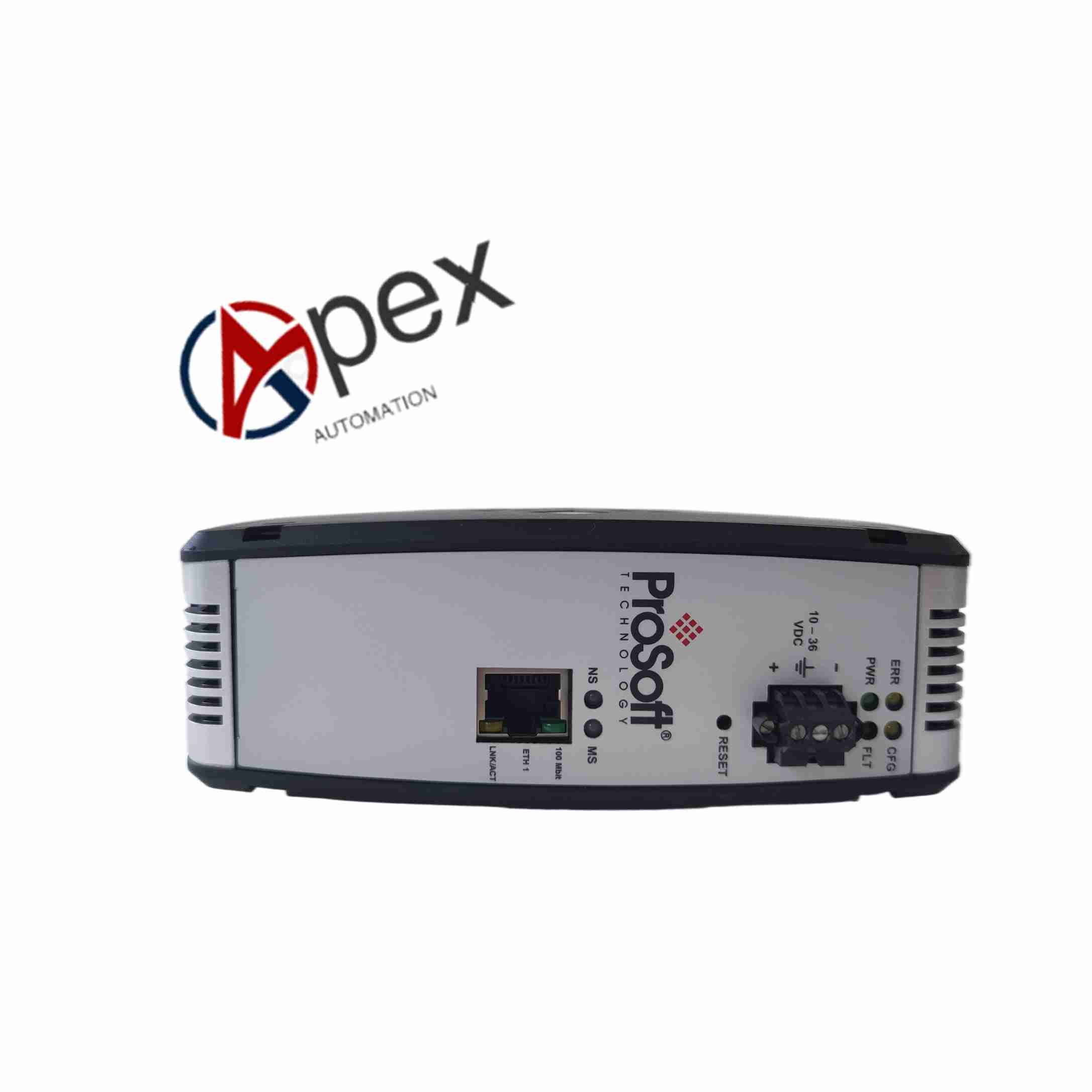

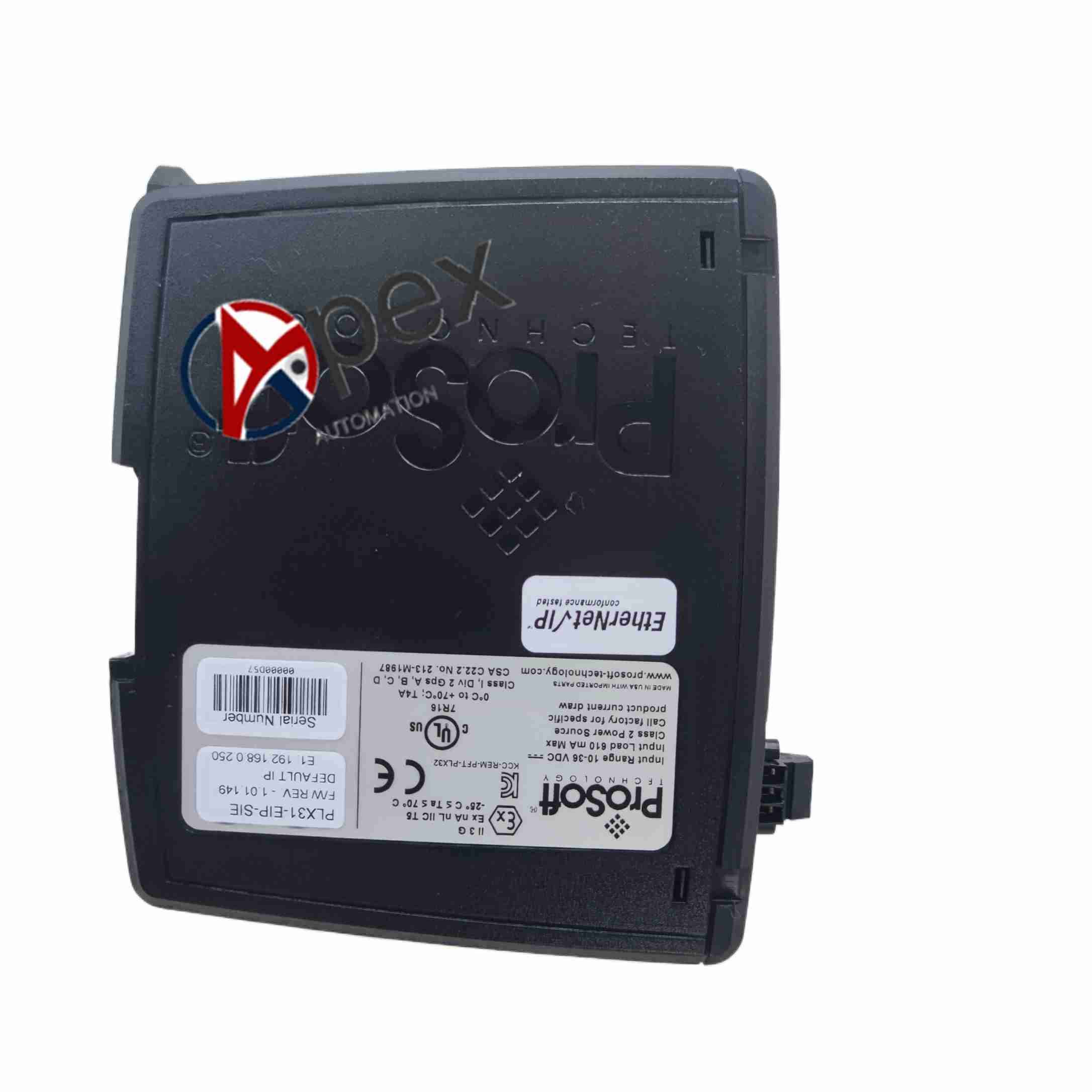

Structural Characteristics DIN rail plastic housing, dual RJ45 Ethernet ports, power terminals, communication and fault LED indicators.
Working Principle The gateway acts as EtherNet/IP adapter and S7 client/server. It translates protocol frames and maps memory areas between Rockwell EtherNet/IP controller and Siemens S7 PLC.
Installation Requirements Install on DIN rail. Connect Ethernet cables to both networks. Assign IP addresses and configure data mapping in Prosoft configuration tool.
Usage Notes Ensure network routing between devices. Configure S7 DB access permissions. Isolate different control networks if required.
