Technical Specifications EtherNet/IP client/server; RS232/422/485 serial port; ASCII protocol; 10/100Mbps Ethernet; DIN rail mount.
Functional Features Bidirectional data transfer between EtherNet/IP and serial ASCII devices. Configurable serial parameters. Message framing and data mapping. Diagnostic counters.
Application Scenarios Connect barcode scanners, weighing scales, serial printers and serial instruments to Rockwell EtherNet/IP control systems.
Performance Parameters Real-time data forwarding; Configurable baud rate, parity and stop bits; Ethernet fault and serial port fault monitoring.

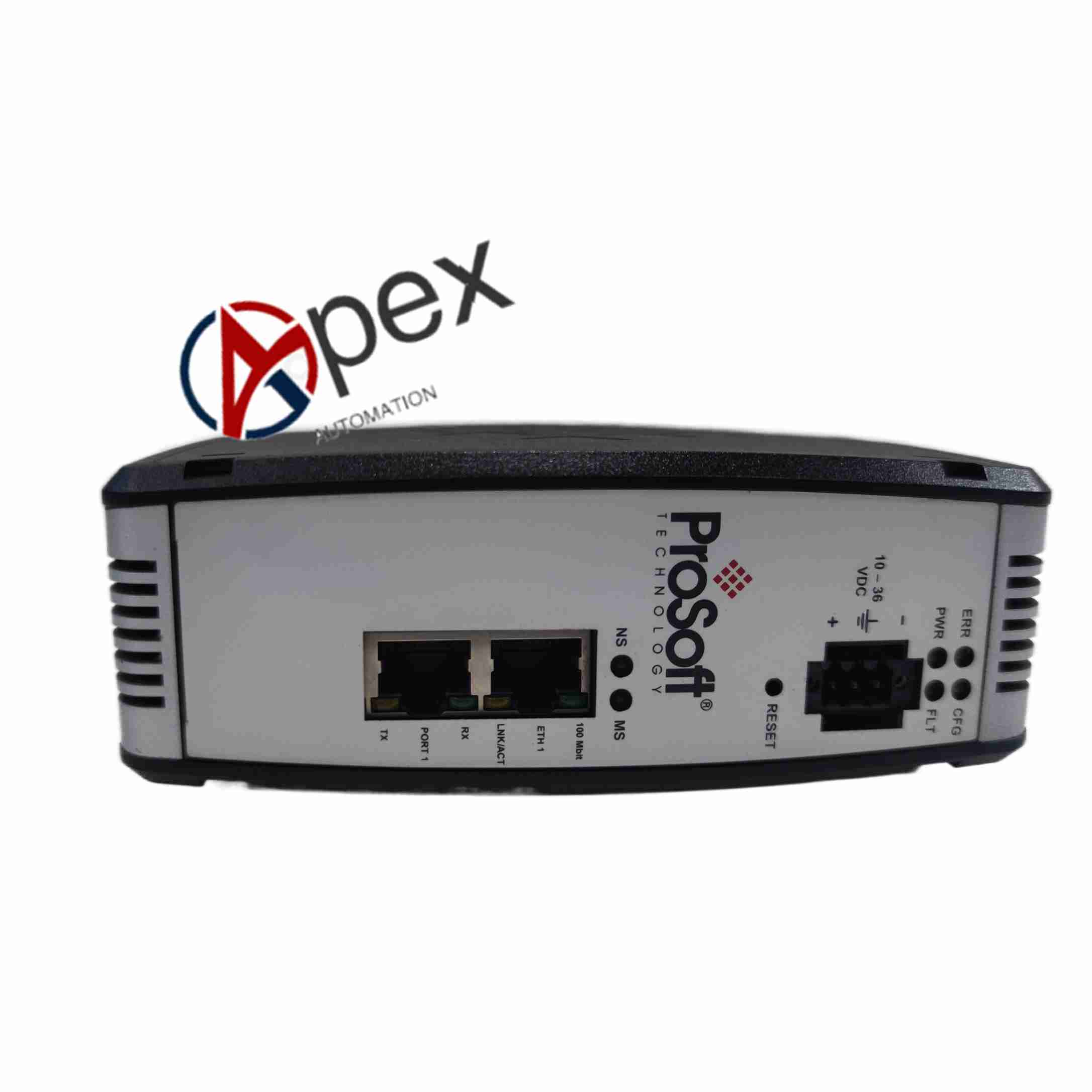

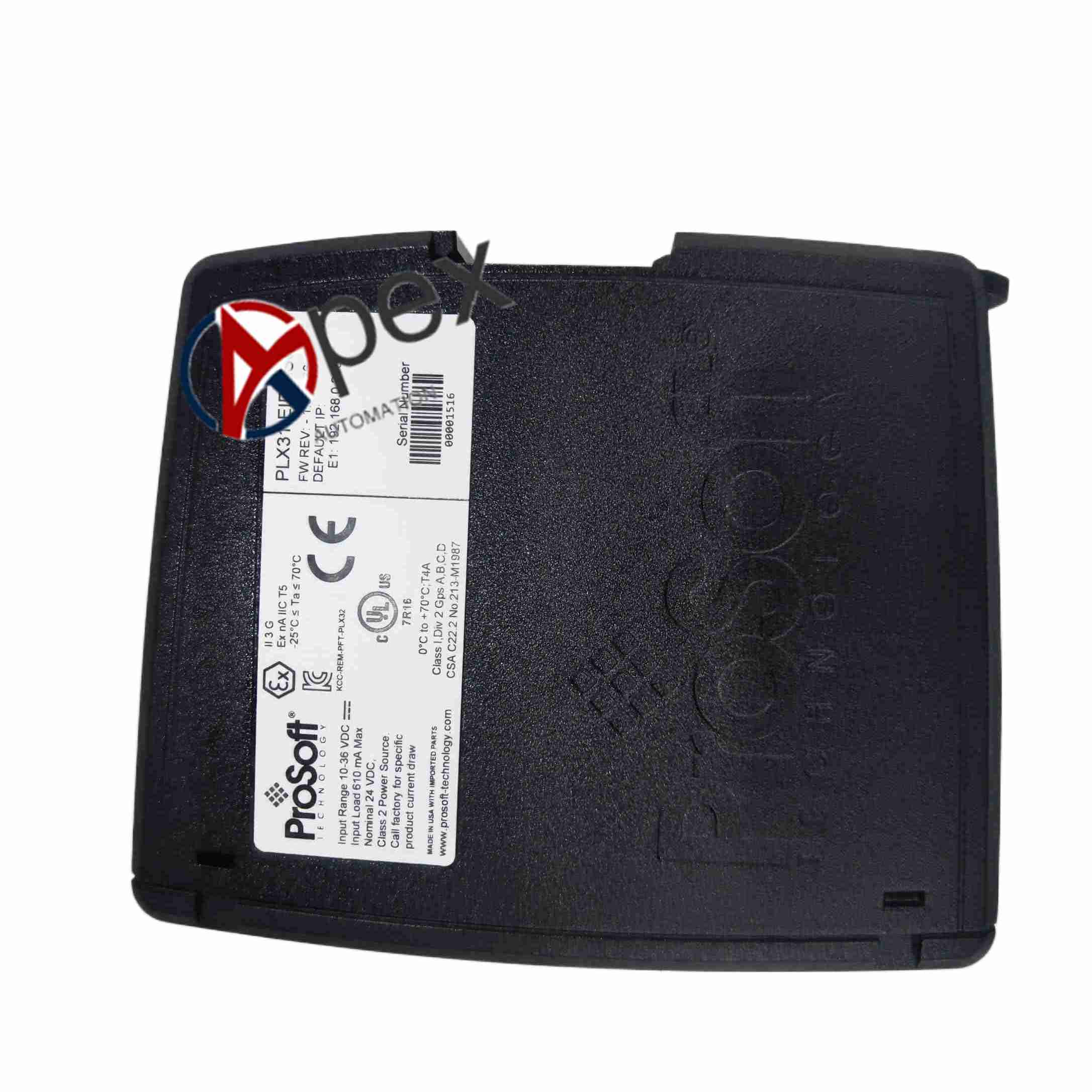

Structural Characteristics Compact DIN rail housing, Ethernet RJ45 port, serial terminal block, status LED indicators.
Working Principle The gateway receives EtherNet/IP data from PLC, converts to ASCII serial frames and sends to serial device; reversely converts incoming ASCII serial data into EtherNet/IP tags for PLC reading.
Installation Requirements Mount on DIN rail. Connect Ethernet cable and serial wiring. Configure serial parameters and data mapping via configuration software.
Usage Notes Match serial baud rate, parity and data bits. Use shielded cable for long serial lines. Set IP address within same network segment.
