Technical Specifications S7 protocol over ISO-on-TCP; 10/100Mbps Ethernet; ControlLogix backplane; Hot swappable; Operating temperature 0~60°C.
Functional Features Read and write S7 data blocks from Siemens PLC. Bidirectional data mapping between S7 tags and ControlLogix tags. Ethernet network diagnostics and connection status monitoring.
Application Scenarios Factory system interconnection, plant upgrade, mixed-brand automation system integrating ControlLogix and Siemens S7 PLCs in automotive, chemical and manufacturing industries.
Performance Parameters Configurable data read/write cycle; Multiple concurrent S7 connections; Connection failure alarm and retry.

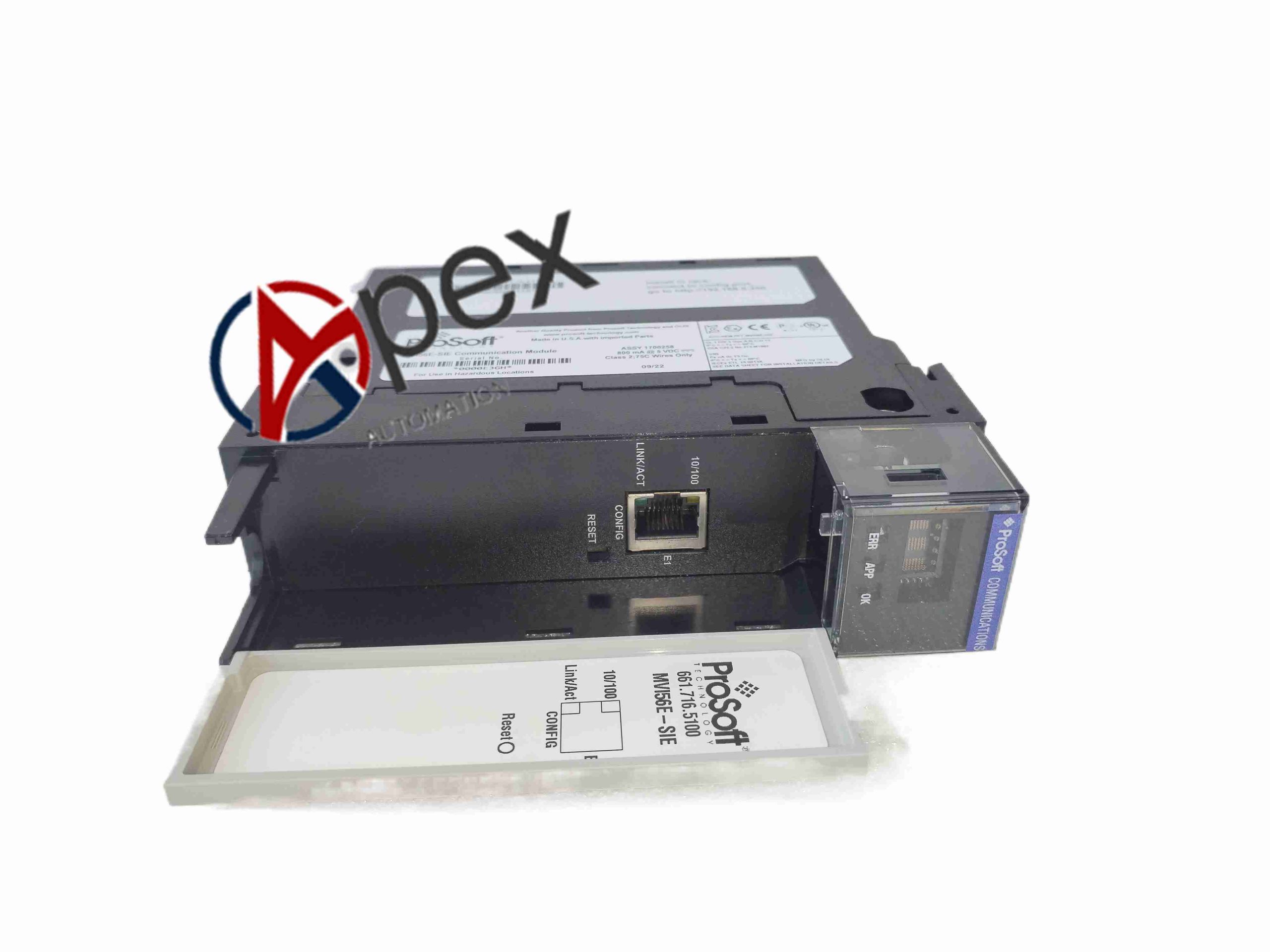

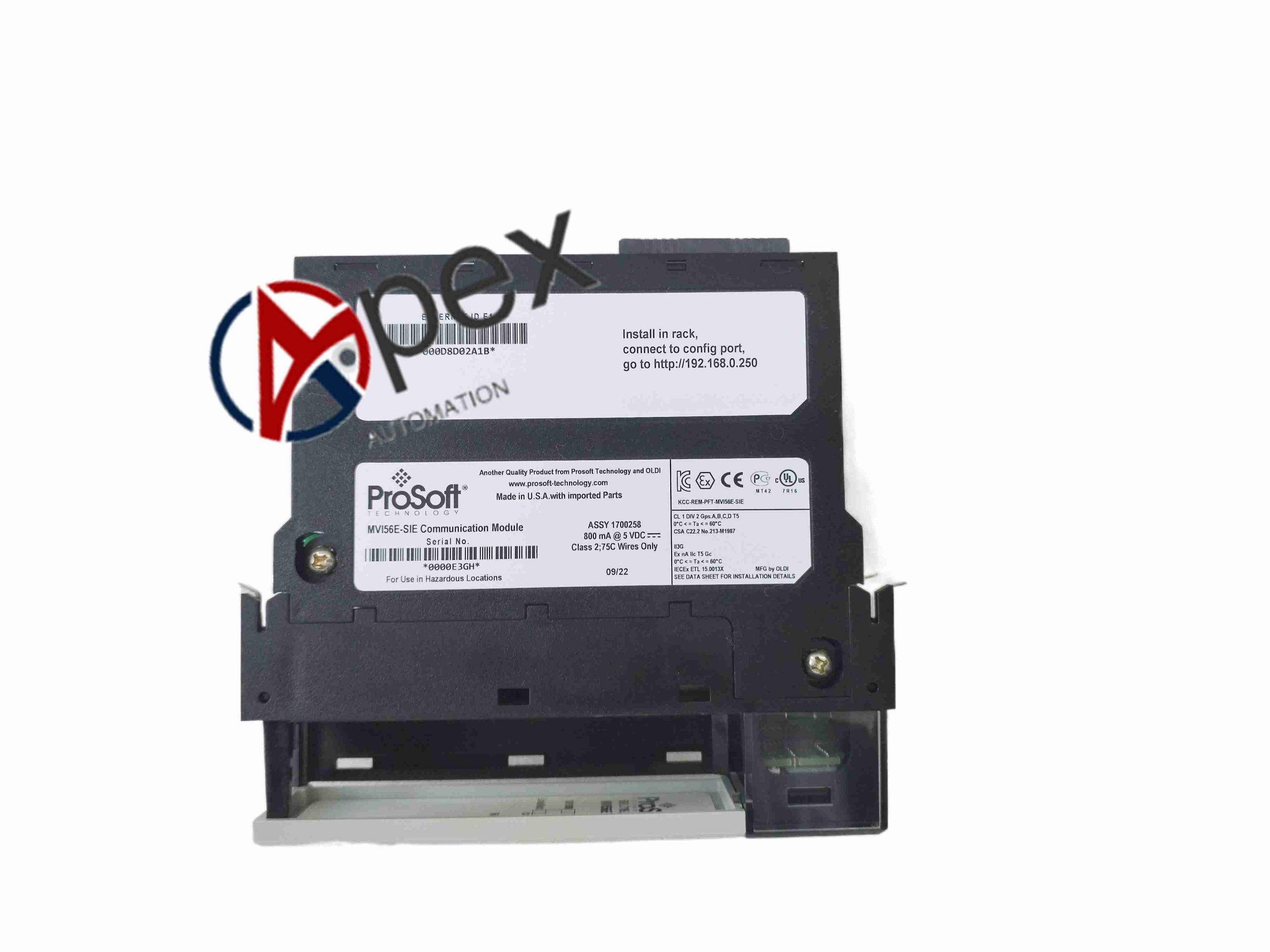

Structural Characteristics ControlLogix rack plug-in module, RJ45 Ethernet port, LED indicators for module operation, Ethernet link and communication fault.
Working Principle The module implements S7 communication protocol stack over industrial Ethernet. It establishes S7 connection to Siemens PLC, reads/writes DB block data and exchanges data with ControlLogix CPU via rack backplane bus.
Installation Requirements Install into ControlLogix rack slot. Connect Ethernet cable to same network as Siemens PLC. Configure IP and S7 connection parameters with Prosoft configuration software.
Usage Notes Do not remove module under power. Verify S7 PLC firewall and communication permission. Check Ethernet link status.
