Technical Specifications PROFIBUS DP slave; ControlLogix backplane interface; Hot swappable; Support multiple PROFIBUS baud rates; Operating temperature 0~60°C.
Functional Features Act as PROFIBUS DP slave for cyclic data exchange with DP master. Process data mapping between PROFIBUS and ControlLogix tags. Network diagnostic and communication status monitoring.
Application Scenarios Plant system interconnection, machine-to-machine communication, connecting ControlLogix system to a main PROFIBUS DP master system in factory automation.
Performance Parameters Cyclic real-time data transmission; Support configurable input/output data length; Communication error detection.

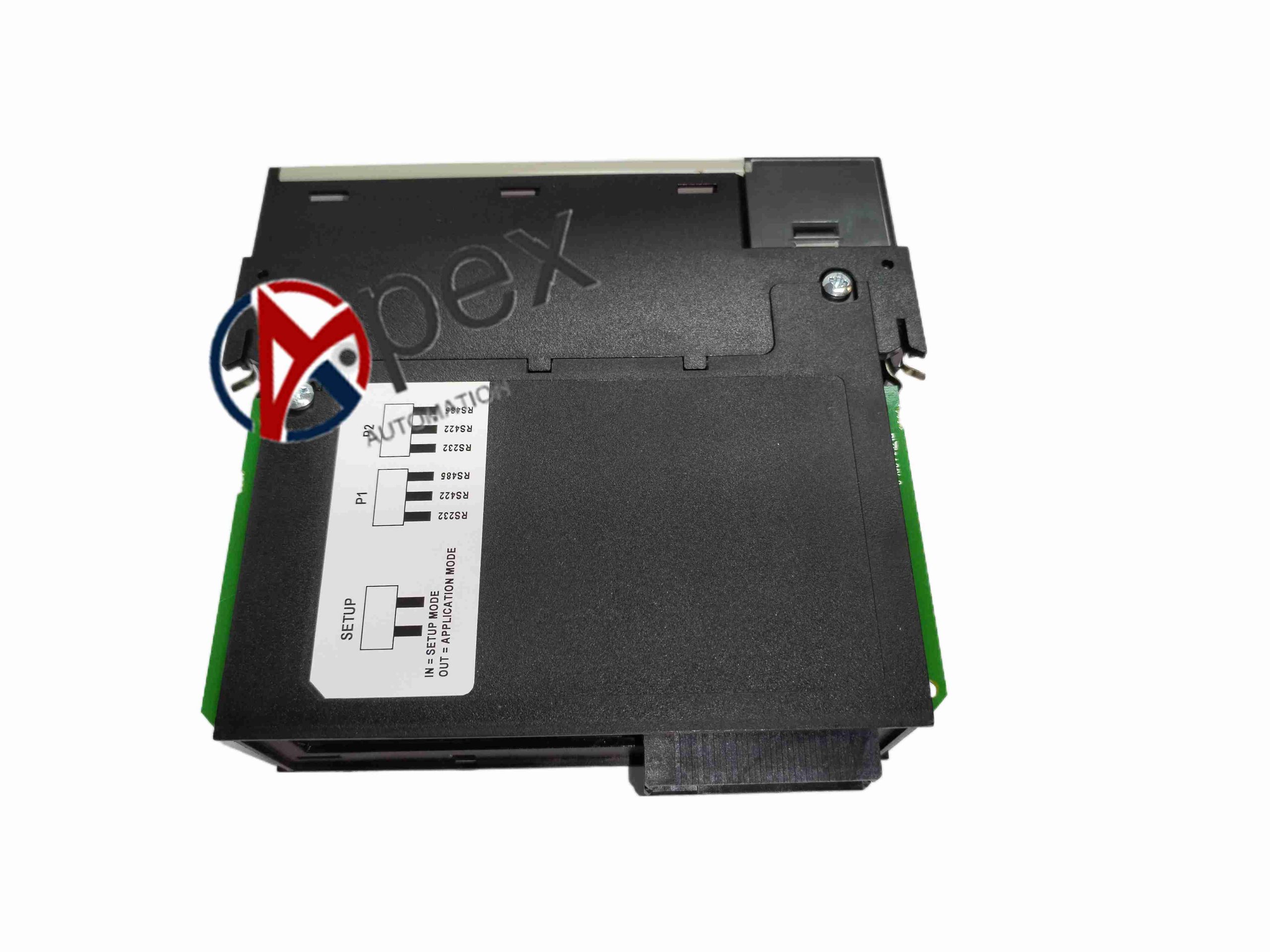

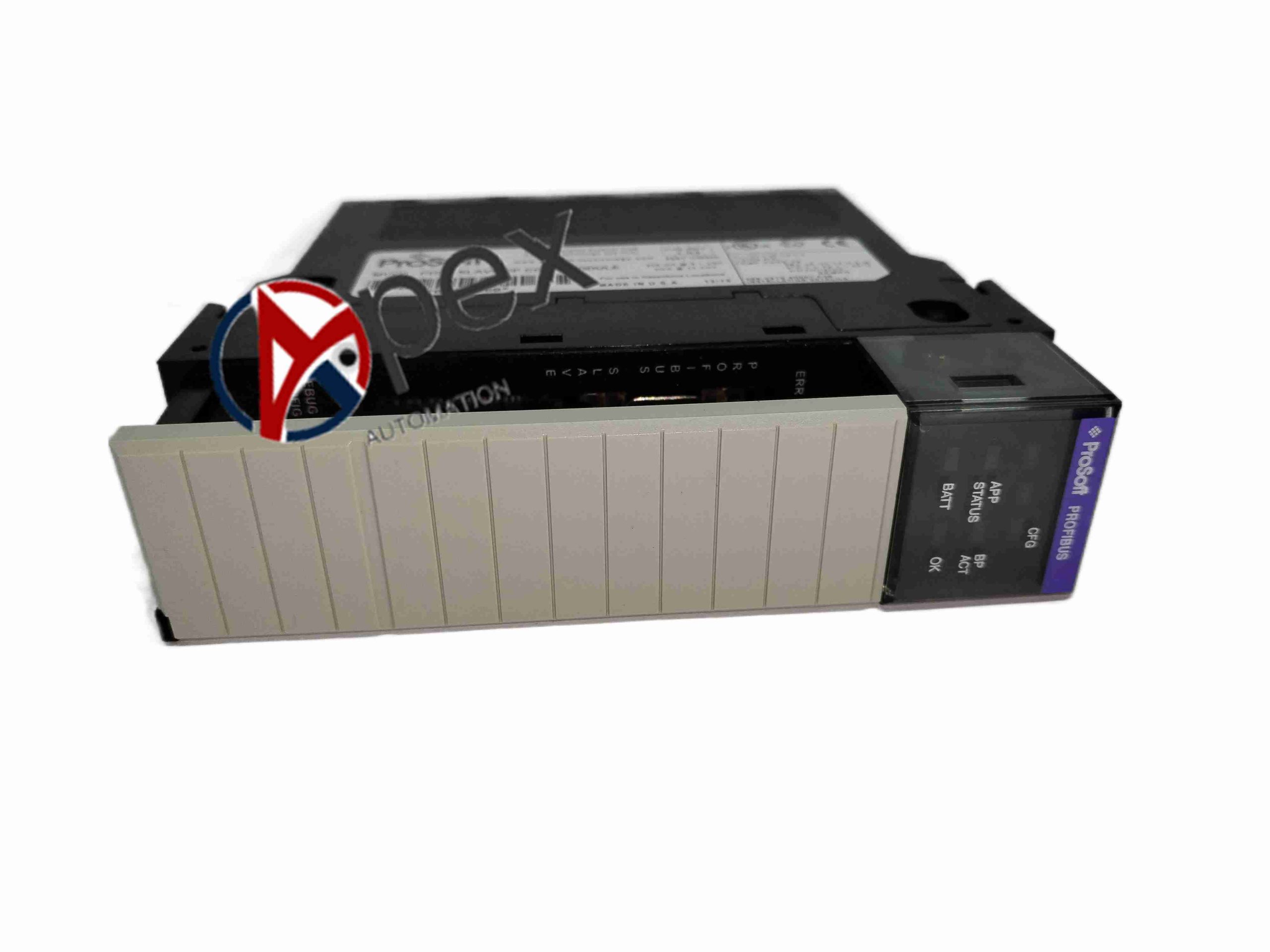

Structural Characteristics ControlLogix rack plug-in module, PROFIBUS D-Sub port, LED indicators for module run, bus communication and fault status.
Working Principle The module receives cyclic output data from PROFIBUS DP master and sends input data back to master. It transfers this data between PROFIBUS bus and ControlLogix CPU via rack backplane.
Installation Requirements Insert into ControlLogix rack slot and lock. Install PROFIBUS bus cable with termination resistor. Configure module parameters and data mapping in configuration software.
Usage Notes Do not remove module while power is applied. Verify GSD file used in PROFIBUS master station. Check bus termination and shielding.
