Technical Specifications PROFIBUS DP V1 master; ControlLogix backplane; Hot swappable; Support PROFIBUS baud rate up to 12Mbps; Operating temperature 0~60°C.
Functional Features PROFIBUS DP master communication, read and write slave process data. GSD file configuration support. Network diagnostic and slave status monitoring. Data mapping between PROFIBUS and ControlLogix tags.
Application Scenarios Automotive production line, packaging machinery, process industry, integrating PROFIBUS DP field equipment into ControlLogix automation platform.
Performance Parameters Fast cyclic PROFIBUS data exchange; Support large number of DP slaves; Slave fault detection and alarm.

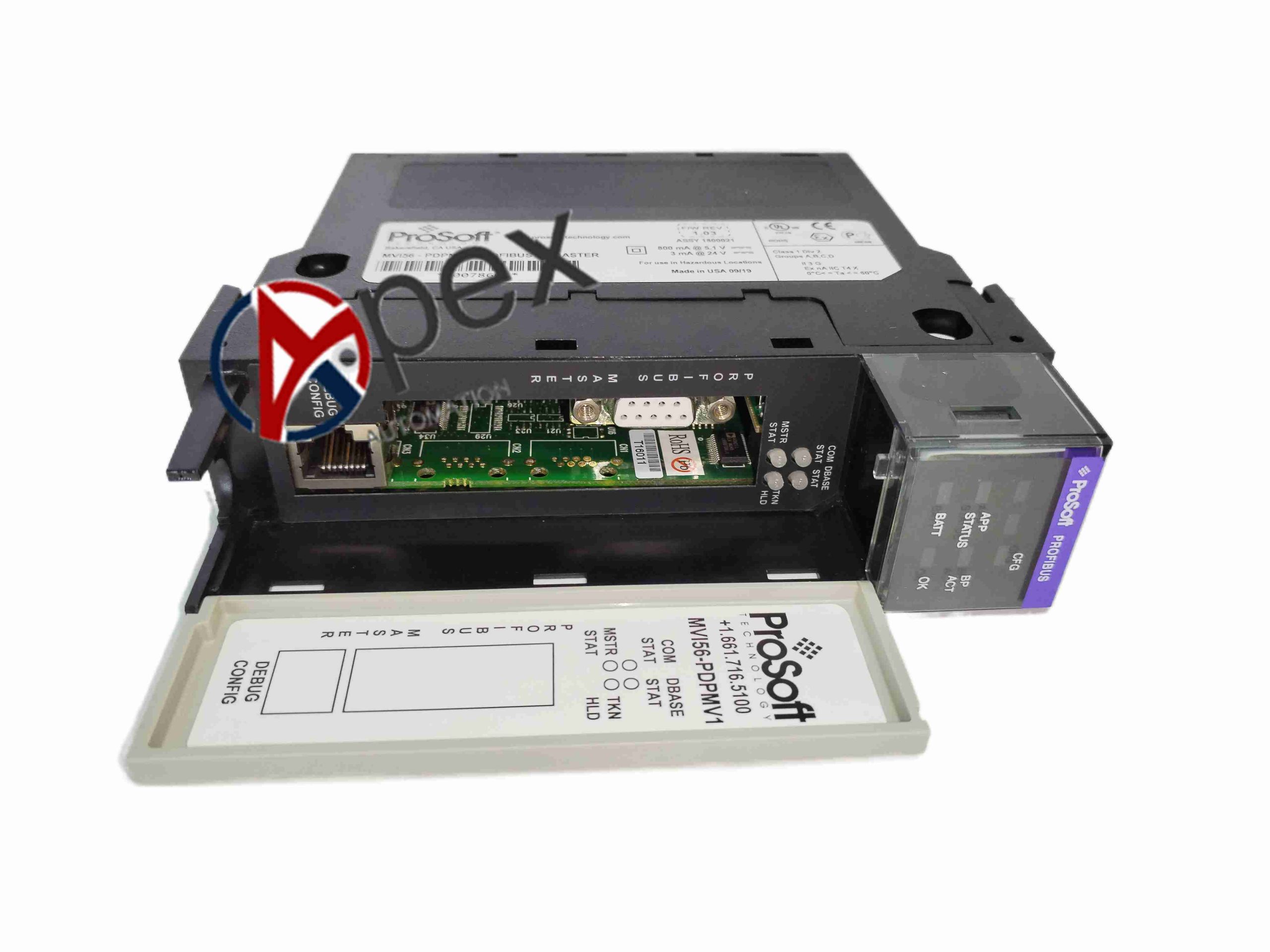

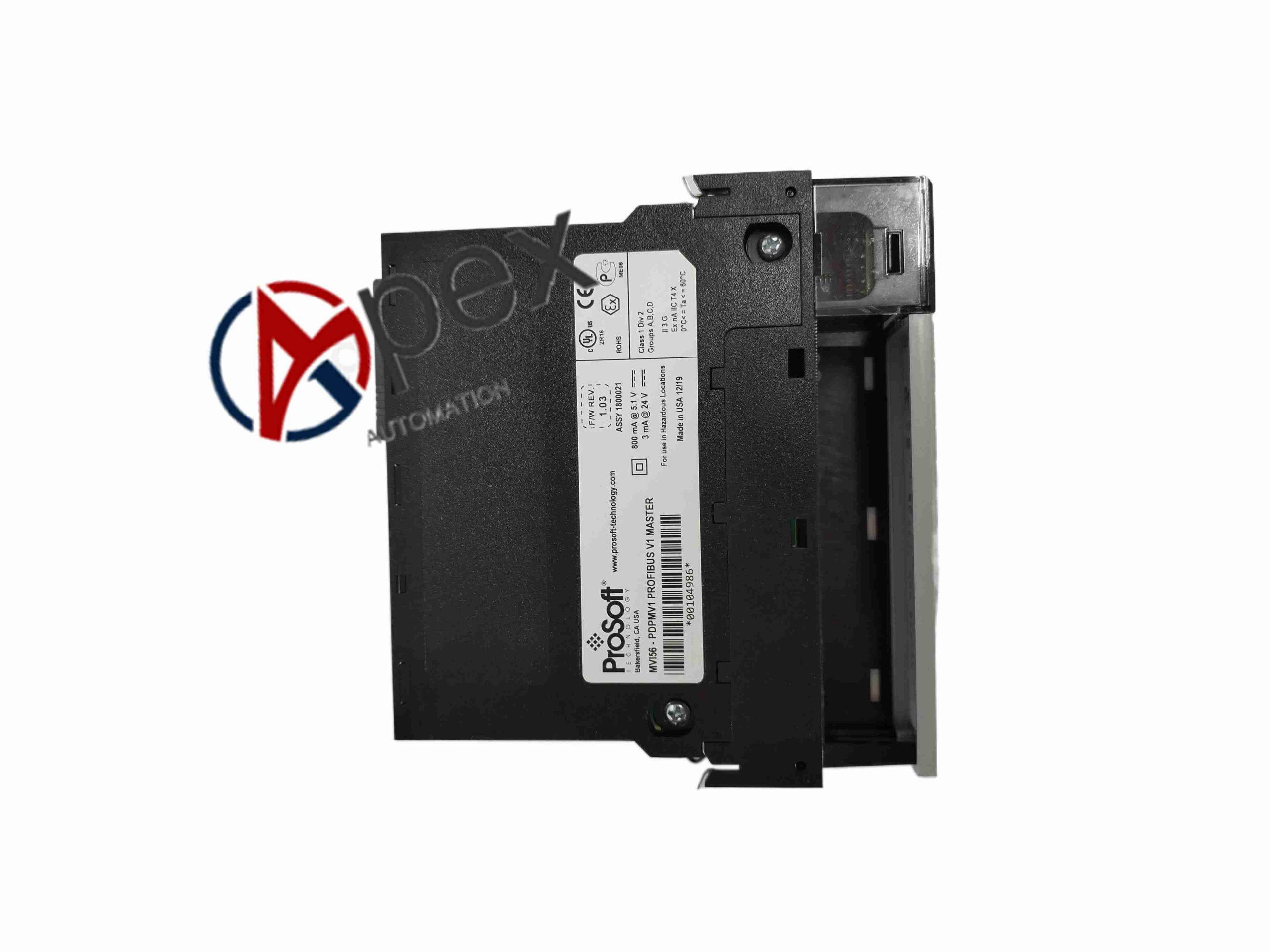

Structural Characteristics Standard ControlLogix rack pluggable module, PROFIBUS D-Sub connector, LED indicators for module operation, PROFIBUS communication and fault.
Working Principle The module acts as PROFIBUS DP master, exchanges cyclic I/O data with DP slaves on PROFIBUS bus. It transfers data between PROFIBUS network and ControlLogix CPU through rack backplane bus.
Installation Requirements Mount in ControlLogix rack. Connect PROFIBUS cable with proper bus termination resistor. Import GSD files and configure network via Prosoft software.
Usage Notes Power off before plug/unplug module. Ensure PROFIBUS cable shielding and termination resistor are correctly installed. Check slave status LEDs during commissioning.
