Technical Specifications Compatible with ControlLogix backplane; Supports BAS protocol communication; Dual serial ports; Rack hot swappable; Operating temperature range 0°C to 60°C.
Functional Features Real-time bidirectional data transfer between PLC and BAS field controllers. Internal database for data mapping. Built-in communication diagnostics and error logging. Supports hot swap for online maintenance.
Application Scenarios Building automation, HVAC control, fire and ventilation system integration, used in commercial building and factory facility automation projects with ControlLogix platform.
Performance Parameters Configurable data scan rate; Support large register mapping; Communication fault alarm and retry mechanism.

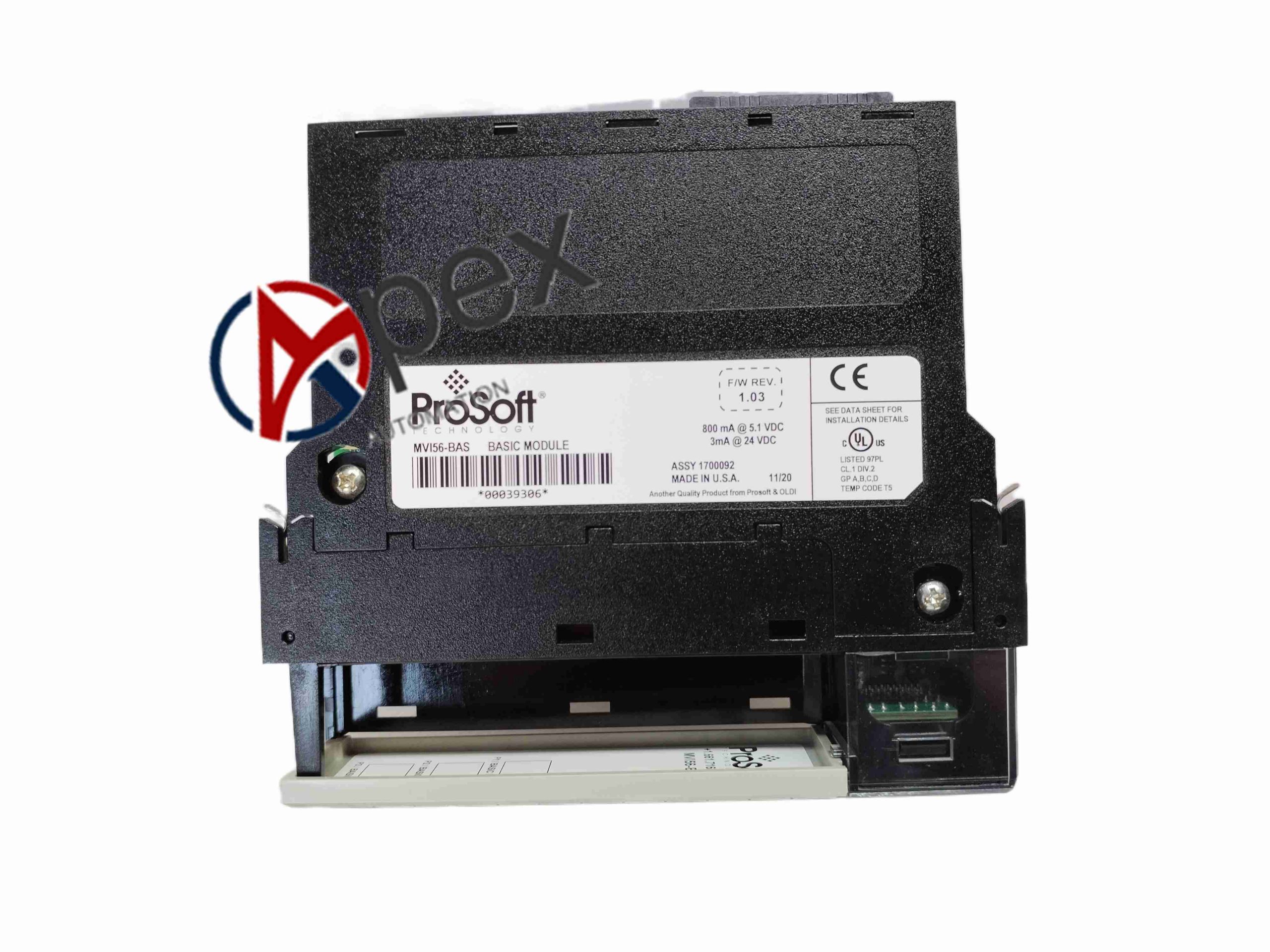

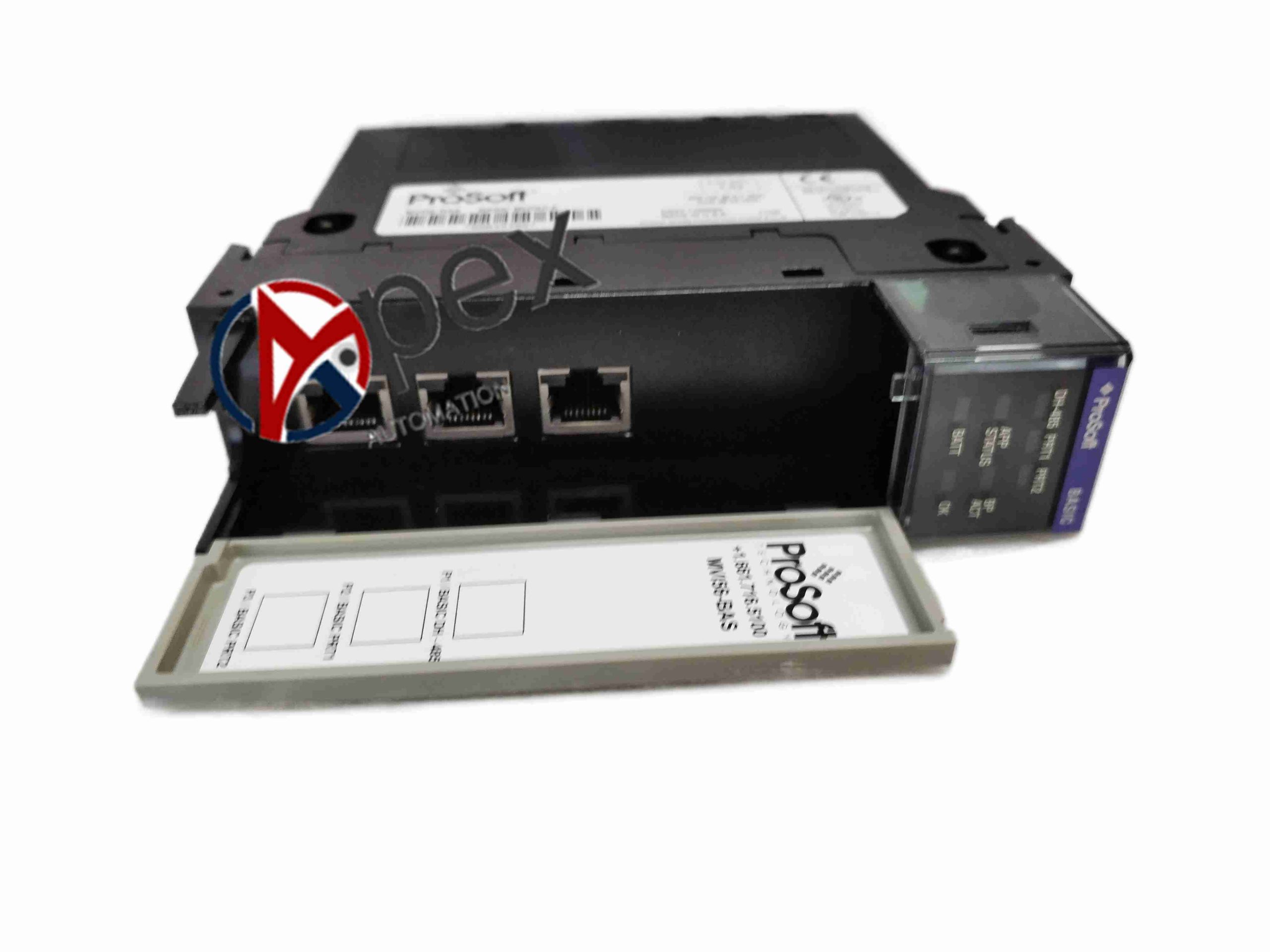

Structural Characteristics Standard ControlLogix rack plug-in module, equipped with serial communication ports and LED indicators for module run, communication and fault status.
Working Principle The module exchanges data with ControlLogix CPU through backplane bus. It converts ControlLogix data into BAS protocol frames and communicates with BAS field controllers, then returns field device data to the PLC controller.
Installation Requirements Insert module into available slot of ControlLogix rack, lock the module. Connect serial communication cable to BAS devices. Complete module configuration through Prosoft configuration software.
Usage Notes Do not connect or disconnect modules with power applied. Check status indicators for communication and power faults. Configure device parameters via Prosoft configuration software.
