Technical Specifications Coil voltage 24 V AC/DC; 1 changeover contact; Rated contact current 6 A; Screw terminal connection; DIN rail mount.
Functional Features Galvanic isolation between control coil and contact. Pluggable relay for easy replacement. LED status indicator for coil energization.
Application Scenarios PLC digital output signal isolation, solenoid valve control, indicator lamp driving, small contactor control in automation cabinet.
Performance Parameters 6A contact rating; Wide coil voltage tolerance; Low power consumption for coil.

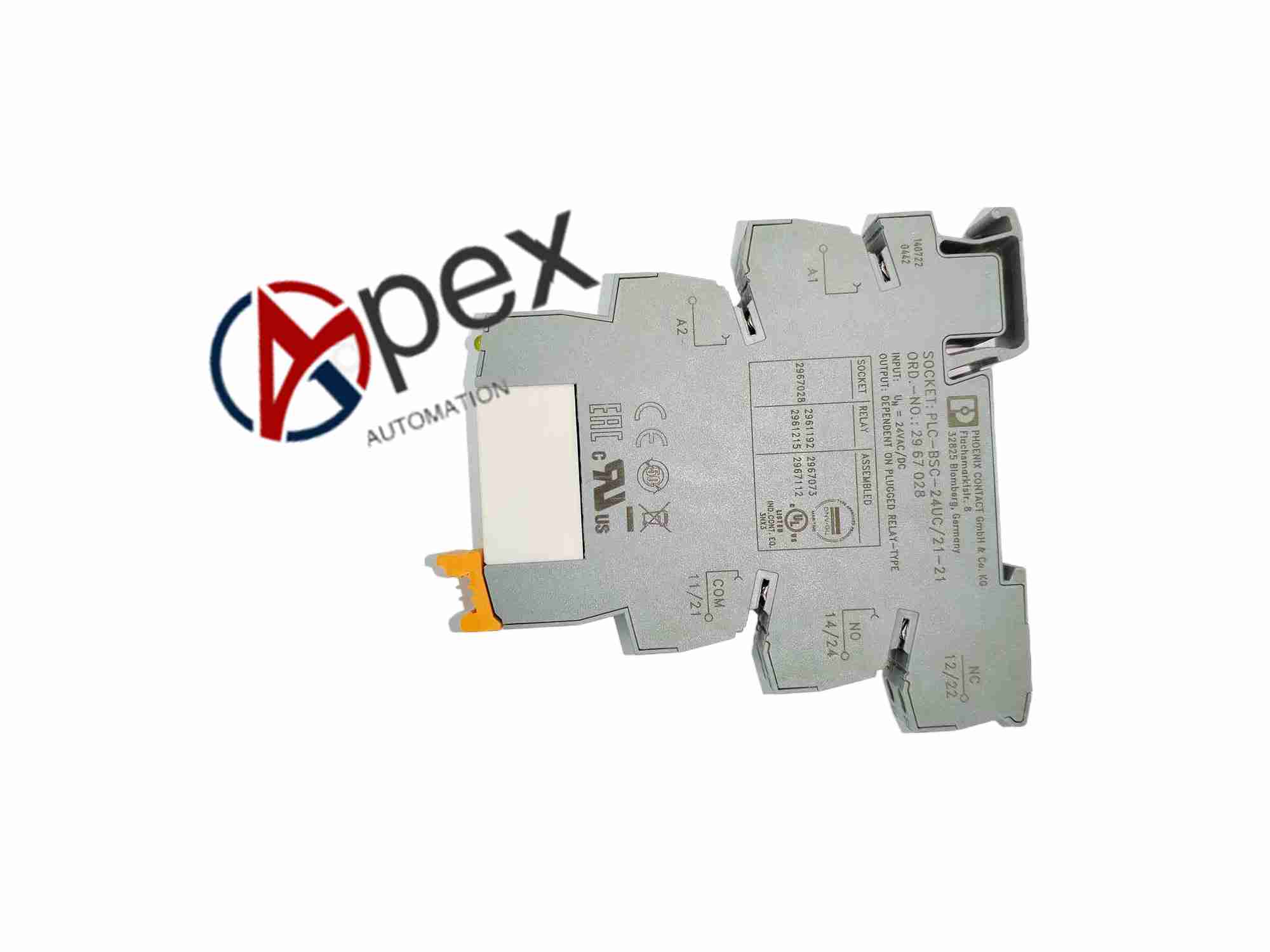

Structural Characteristics Plastic housing, DIN rail base, pluggable relay cartridge, front terminal blocks and power LED.
Working Principle When 24UC control voltage is applied to the coil, electromagnetic force pulls the contact closed or open, switching the external load circuit.
Installation Requirements Clip base onto DIN rail. Wire control signal and load circuit to terminals. Insert relay cartridge into base.
Usage Notes Do not exceed contact rated current. Use flyback diode for inductive loads. Check coil voltage before power on.
