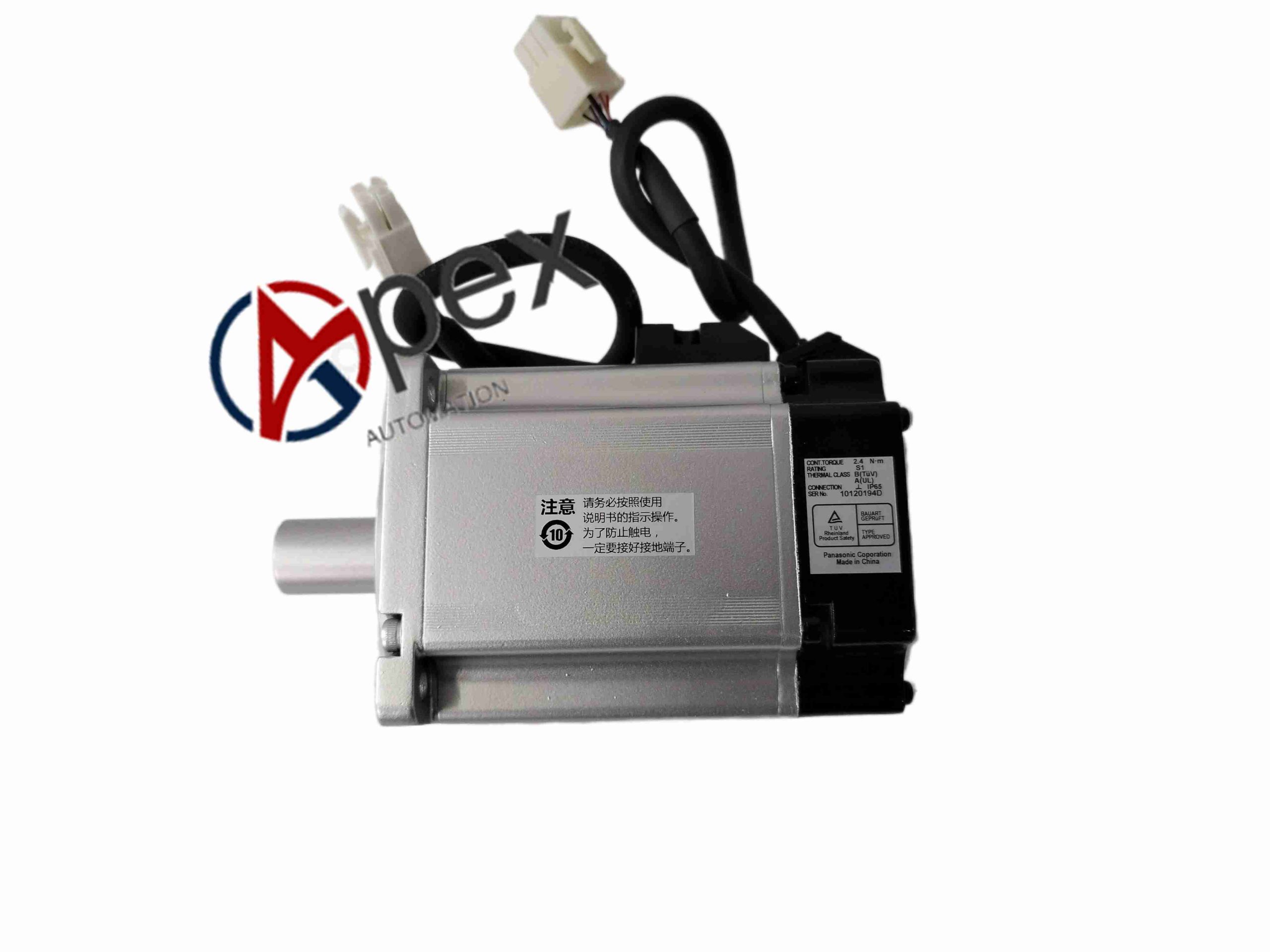

Technical Specifications Rated power 750W; Permanent magnet synchronous design; Built-in incremental encoder; IP65 protection grade; Operating ambient temperature -10°C to 40°C.
Functional Features High dynamic response for frequent start-stop operation. Low torque ripple and smooth low-speed running. Integrated position feedback encoder. Support closed-loop servo control with matched servo driver.
Application Scenarios Widely applied in packaging machines, automated assembly equipment, material handling devices, CNC auxiliary axes and electronic production lines.
Performance Parameters Rated speed 3000rpm; High acceleration capability; Precise position positioning; Overload protection function.
Structural Characteristics Compact flange mounting structure, rear encoder assembly, sealed output shaft, separate power and encoder wiring connectors.
Working Principle The matched servo driver provides three-phase alternating current to the stator winding and generates rotating magnetic field. The permanent magnet rotor rotates following the magnetic field. The encoder feeds real-time position and speed data back to servo driver to realize closed-loop motion control.
Installation Requirements Mount the motor flange on rigid mechanical base. Adopt flexible coupling to reduce shaft misalignment stress. Use shielded cables for power and encoder signal wiring.
Usage Notes Avoid strong impact on the motor shaft and encoder during installation. Do not exceed rated torque and speed. Prevent dust, water and oil contamination on the motor surface.
